GX640 SD2 (GAAD) - Honda Engine, Made in Japan (SN: GAAD-1000001 - GAAD-1029999) STARTER MOTOR Parts Diagram

Engine, Made in Japan

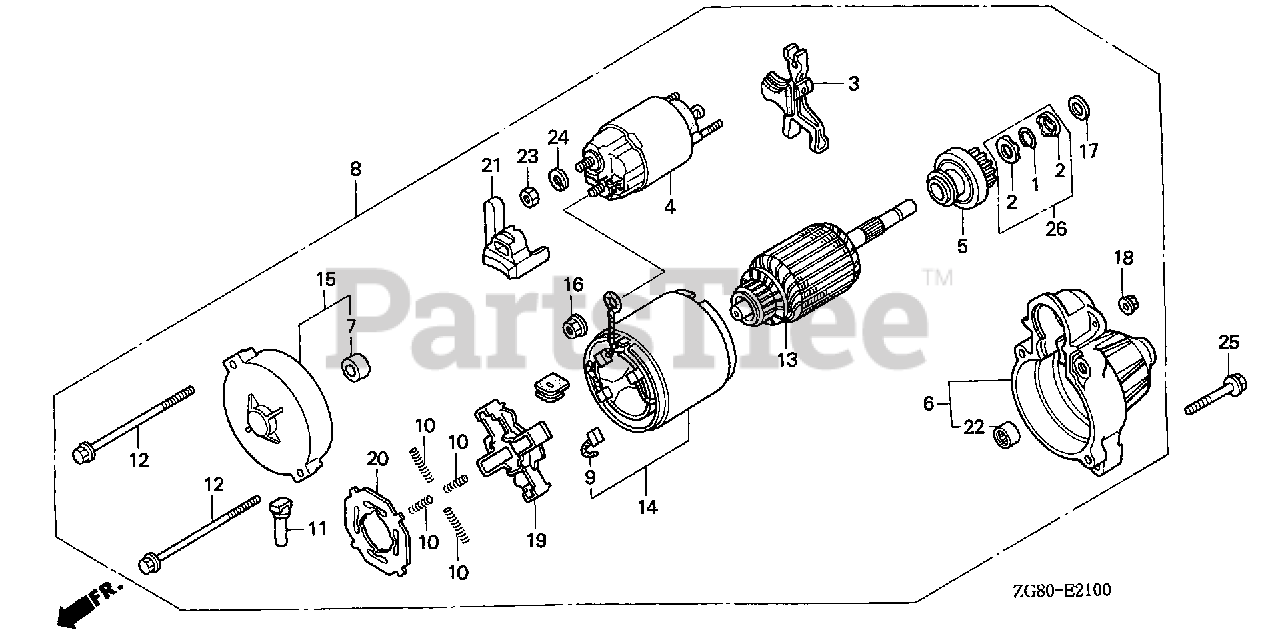

STARTER MOTOR Parts Diagram

  • Title

1

Honda 30201-PH9-004

RING, SNAP (DENSO)

$3.99

$

Usually ships in 3-6 days

0

2

Honda 30202-PZ1-003

COLLAR SET, CLUTCH STOP

Note: Use up to Engine SN 1016333.

$23.99

$

Usually ships in 3-6 days

0

3

Honda 31203-PN4-003

LEVER, PINION DRIVE

$40.99

$

Usually ships in 3-6 days

0

4

Honda 31204-ZG4-802

SWITCH ASSY., MAGNETIC

$207.99

$

Usually ships in 3-6 days

0

5

Honda 31207-ZG8-003

CLUTCH, OVERRUNNING

$329.99

$

Usually ships in 3-6 days

0

6

Honda 31208-ZG8-003

HOUSING, SIDE DRIVE

$135.99

$

Usually ships in 3-6 days

0

7

Honda 31210-PH9-004

BEARING B

$14.99

$

Usually ships in 3-6 days

0

8

Honda 31210-ZG8-013

STARTER MOTOR ASSY.

$1036.99

$

Usually ships in 3-6 days

0

9

Honda 31211-PH9-004

BRUSH

$21.99

$

Usually ships in 3-6 days

0

10

Honda 31212-PH9-004

SPRING, BRUSH

$7.99

$

Usually ships in 3-6 days

0

11

Honda 31213-PH9-004

COVER

$69.99

$

Usually ships in 3-6 days

0

12

Honda 31214-PH9-004

BOLT, THROUGH

$12.99

$

Usually ships in 3-6 days

0

13

Honda 31217-ZG8-003

ARMATURE

$230.99

$

Usually ships in 3-6 days

0

14

Honda 31218-ZG4-801

YOKE

$315.99

$

Usually ships in 3-6 days

0

15

Honda 31219-ZG8-003

FRAME, COMMUTATOR END

$57.99

$

Usually ships in 3-6 days

0

16

Honda 31220-PH9-004

NUT, HEX. (8MM)

$4.99

$

Usually ships in 3-6 days

0

17

Honda 31221-PH9-004

WASHER

Note: Use up to Engine SN 1016333.

$4.49

$

Usually ships in 3-6 days

0

18

Honda 31223-PA0-006

NUT, HEX.

$4.99

$

Usually ships in 3-6 days

0

19

Honda 31231-PH9-004

HOLDER, BRUSH

$67.99

$

Usually ships in 3-6 days

0

20

Honda 31233-PH9-004

INSULATOR, BRUSH HOLDER

$41.99

$

Usually ships in 3-6 days

0

21

Honda 31235-ZG4-801

COVER, TERMINAL

$6.49

$

Usually ships in 3-6 days

0

22

Honda 91002-ZG4-801

BEARING A

$10.99

$

Usually ships in 3-6 days

0

23

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 10

0

24

Honda 94111-08000

WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 95701-08040-08

BOLT, FLANGE (8X40)

$2.99

$

Usually ships in 3-6 days

0

26

Honda 30202-PZ1-003

COLLAR SET, CLUTCH STOP

Note: Use from Engine SN 1016334.

$23.99

$

Usually ships in 3-6 days

0
