GX640 SD2 (GAAD) - Honda Engine, Made in Japan (SN: GAAD-1000001 - GAAD-1029999) CONTROL Parts Diagram

Engine, Made in Japan

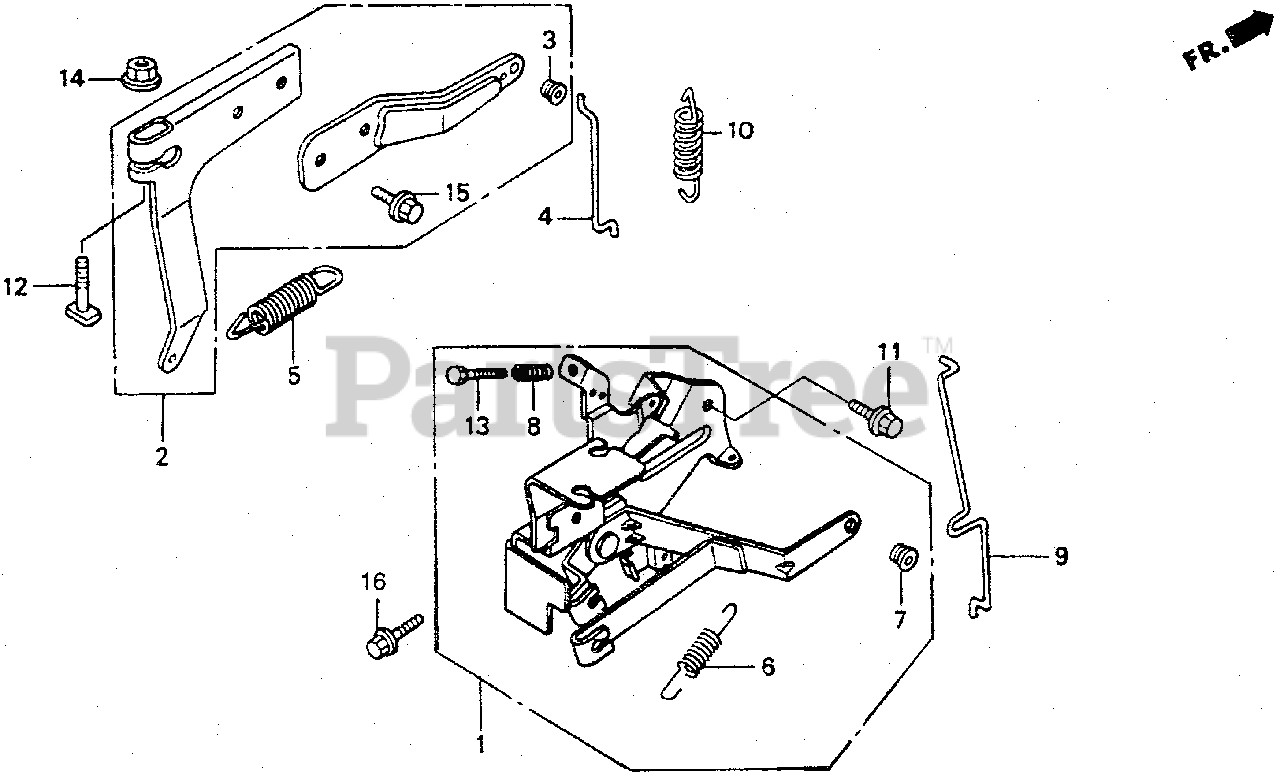

CONTROL Parts Diagram

  • Title

1

Honda 16501-ZG8-800

CONTROL (Honda Code 4547238).

Note: Use up to Engine SN 1015820.

$

$

Not available

1

Honda 16501-ZG8-801

CONTROL (Honda Code 5300314).

Note: Use from Engine SN 1015821.

$91.99

$

Usually ships in 3-6 days

0

2

Honda 16550-ZG8-000

ARM, GOVERNOR (Honda Code 3507985).

$50.99

$

Usually ships in 3-6 days

0

3

Honda 16552-896-650

COLLAR, LEVER (Honda Code 3507993).

$2.99

$

Usually ships in 3-6 days

0

4

Honda 16555-ZG8-000

ROD, GOVERNOR (Honda Code 3508009).

$4.49

$

Usually ships in 3-6 days

0

5

Honda 16561-ZG8-L10

SPRING, GOVERNOR (Honda Code 3690021).

$5.49

$

Usually ships in 3-6 days

0

6

Honda 16575-ZA0-700

SPRING, CONTROL LEVER RETURN (Honda Code 2051746).

$4.49

$

Usually ships in 3-6 days

0

7

Honda 16576-ZA0-700

COLLAR, LEVER (Honda Code 2051753).

$5.99

$

Usually ships in 3-6 days

0

8

Honda 16584-883-300

SPRING, CONTROL ADJUSTING (Honda Code 0636431).

$4.99

$

In Stock, Qty 7

0

9

Honda 16674-ZG8-020

SEE PART DETAILS - PRI; ROD, CHOKE (Honda Code 3690039).

$5.49

$

Usually ships in 3-6 days

0

10

Honda 17842-ZG8-800

SPRING, THROTTLE RETURN (Honda Code 4547295).

$4.99

$

Usually ships in 3-6 days

0

11

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

Note: Use up to Engine SN 1025820.

$2.99

$

In Stock, only 4 left!

0

11

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

Note: Use from Engine SN 1025821.

$2.99

$

In Stock, only 4 left!

0

12

Honda 90015-ZE3-790

BOLT, GOVERNOR ARM (Honda Code 2560852).

$2.99

$

Usually ships in 3-6 days

0

13

Honda 90016-ZG1-700

BOLT, RECESSED (5X34) (Honda Code 4080461).

$3.99

$

Usually ships in 3-6 days

0

14

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

15

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8) (Honda Code 2581353).

$3.49

$

In Stock, Qty 20+

0

16

Honda 95701-08014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14) (Honda Code 2411015).

Note: Use from Engine SN 1015821.

$2.49

$

Usually ships in 3-6 days

0
