GX640 SD2/A (GAAD) - Honda Engine, Made in Japan (SN: GAAD-1030001 - GAAD-9999999) CYLINDER HEAD Parts Diagram

Engine, Made in Japan

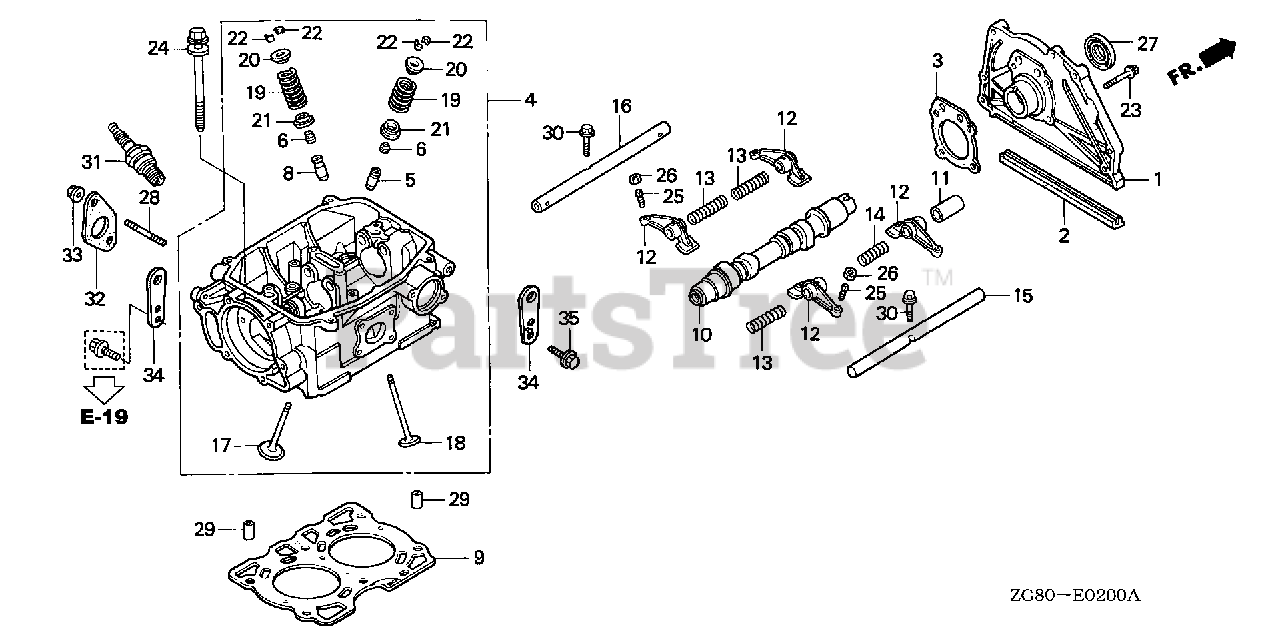

CYLINDER HEAD Parts Diagram

  • Title
1

Honda 11841-ZG8-000

COVER, RR. TIMING BELT

$94.99

$

Usually ships in 3-6 days

0

2

Honda 11842-ZG8-000

GASKET, RR. TIMING BELT COVER

$7.49

$

Usually ships in 3-6 days

0

3

Honda 11846-ZG8-000

GASKET, RR. TIMING BELT COVER

$7.49

$

Usually ships in 3-6 days

0

4

Honda 12200-ZG8-L11

CYLINDER HEAD ASSY.

$1481.99

$

Usually ships in 3-6 days

0

5

Honda 12204-KE7-305

GUIDE, VALVE (OVER SIZE)

Note: (Optional).

$

$

Not available

6

Honda 12209-MA6-003

SEAL, VALVE STEM (ARAI)

$12.99

$

Usually ships in 3-6 days

0

8

Honda 12245-KS4-305

GUIDE, EX. VALVE (OVER SIZE)

Note: (Optional).

$

$

Not available

9

Honda 12251-ZG8-003

GASKET, CYLINDER HEAD

$73.99

$

Usually ships in 3-6 days

0

10

Honda 14111-ZG8-800

CAMSHAFT (20PS)

$339.99

$

Usually ships in 3-6 days

0

11

Honda 14482-ZG8-000

COLLAR, ROCKER ARM

$5.49

$

Usually ships in 3-6 days

0

12

Honda 14621-ZG8-000

ARM, ROCKER

$42.99

$

Usually ships in 3-6 days

0

13

Honda 14628-ZG8-000

SPRING, ROCKER ARM A

$5.49

$

Usually ships in 3-6 days

0

14

Honda 14629-ZG8-000

SPRING, ROCKER ARM B

$4.49

$

Usually ships in 3-6 days

0

15

Honda 14631-ZG8-000

SHAFT, IN. ROCKER ARM

$21.99

$

Usually ships in 3-6 days

0

16

Honda 14641-ZG8-000

SHAFT, EX. ROCKER ARM

$32.99

$

Usually ships in 3-6 days

0

17

Honda 14711-ZG8-000

VALVE, IN.

$39.99

$

Usually ships in 3-6 days

0

18

Honda 14721-ZG8-010

VALVE, EX.

$59.99

$

Usually ships in 3-6 days

0

19

Honda 14751-ZG8-000

SPRING, VALVE

$5.99

$

Usually ships in 3-6 days

0

20

Honda 14771-GB4-680

RETAINER, VALVE SPRING

$11.99

$

Usually ships in 3-6 days

0

21

Honda 14775-ZG8-000

SEAT, VALVE SPRING

$4.49

$

Usually ships in 3-6 days

0

22

Honda 14781-MA6-000

COTTER, VALVE

$3.99

$

Usually ships in 3-6 days

0

23

Honda 90003-KN7-671

BOLT, FLANGE (6X30)

$3.99

$

Usually ships in 3-6 days

0

24

Honda 90005-PJ7-003

BOLT-WASHER (10X115)

$15.99

$

Usually ships in 3-6 days

0

25

Honda 90012-415-000

SCREW, TAPPET ADJUSTING

$7.99

$

Usually ships in 3-6 days

0

26

Honda 90206-250-000

NUT, TAPPET ADJUSTING

$4.99

$

Usually ships in 3-6 days

0

27

Honda 91261-ZG8-003

OIL SEAL (28X40X8)

$8.49

$

Usually ships in 3-6 days

0

28

Honda 92900-08022-1E

BOLT, STUD (8X22)

$3.49

$

Usually ships in 3-6 days

0

29

Honda 94301-12200

PIN, DOWEL (12X20)

$3.49

$

Usually ships in 3-6 days

0

30

Honda 95801-06030-08

BOLT, FLANGE (6X30)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 98079-55145

SPARK PLUG (BPR5ES-11)

$3.49

$

In Stock, Qty 20+

0

31

Honda 98079-55155

SPARK PLUG (W16EPR-U11)

$4.49

$

Usually ships in 3-6 days

0

32

Honda 18333-758-801

GASKET, EX. PIPE

$15.99

$

Usually ships in 3-6 days

0

33

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 15

0
