GX640 SD1 (GAAD) - Honda Engine, Made in Japan (SN: GAAD-1000001 - GAAD-1029999) WATER PUMP Parts Diagram

Engine, Made in Japan

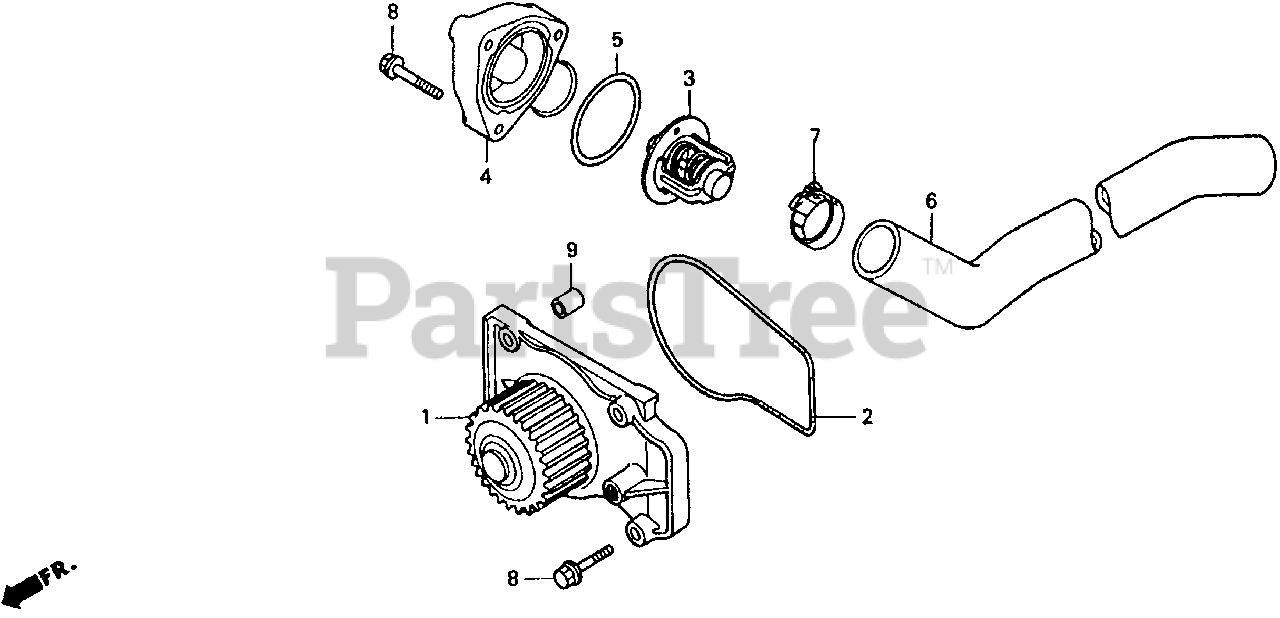

WATER PUMP Parts Diagram

  • Title

1

Honda 19200-ZG8-000

WATER PUMP (Honda Code 3508173).

Note: Use up to Engine SN 1015070.

$

$

Not available

1

Honda 19200-ZG8-010

WATER PUMP (Honda Code 4753034).
(Superseded to 19200-ZG8-020)

Note: Use from Engine SN 1015071.

$192.99

$

Usually ships in 3-6 days

0

2

Honda 19229-ZG8-003

O-RING, WATER PUMP (Honda Code 3506615).

$8.99

$

Usually ships in 3-6 days

0

3

Honda 19301-ZG8-003

THERMOSTAT (Honda Code 3506623).

$67.99

$

Usually ships in 3-6 days

0

4

Honda 19315-ZG8-000

COVER, THERMOSTAT (Honda Code 3506631).

$46.99

$

Usually ships in 3-6 days

0

5

Honda 19317-ZG8-003

O-RING, THERMOSTAT COVER (Honda Code 3506649).

$4.49

$

Usually ships in 3-6 days

0

6

Honda 19502-ZG8-L10

HOSE B, WATER (LOWER) (Honda Code 3690542).

Note: Use from Engine SN 1015821.

$29.99

$

Usually ships in 3-6 days

0

6

Honda 19502-ZG8-000

HOSE B, WATER (Honda Code 3506656).

Note: Use up to Engine SN 1015820.

$

$

Not available

7

Honda 19504-ZG8-000

BAND, WATER HOSE (Honda Code 3506664).

$7.49

$

Usually ships in 3-6 days

0

8

Honda 90031-ZE1-000

BOLT, FLANGE (6X32) (Honda Code 2092971).

$3.99

$

In Stock, only 2 left!

0

9

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0
