GX630 VZE8 (GCBBK) - Honda Engine, Made in Japan (SN: GCBBK-1000001 - GCBBK-9999999) CRANKCASE Parts Diagram

Engine, Made in Japan

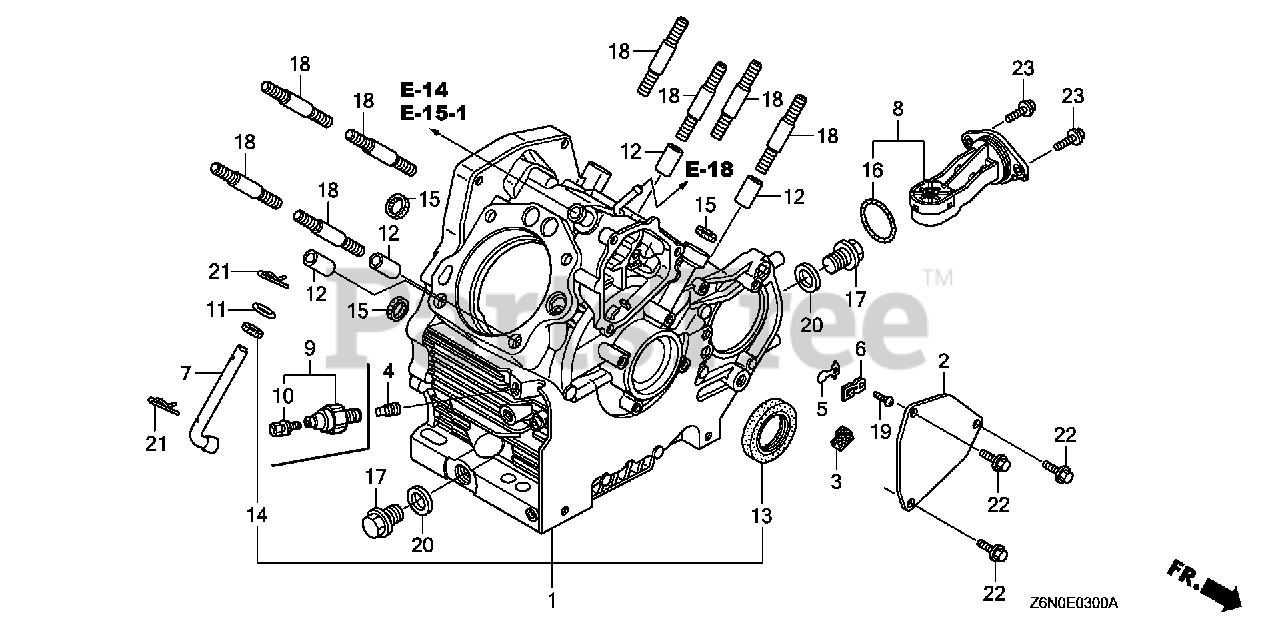

CRANKCASE Parts Diagram

  • Title

1

Honda 11100-Z6L-820

CRANKCASE ASSY.

Note: Use up to Engine SN 1000020.

$992.99

$

Usually ships in 3-6 days

0

1

Honda 11100-Z6L-821

CRANKCASE ASSY.

Note: Use from Engine SN 1000021.

$1328.99

$

Usually ships in 3-6 days

0

2

Honda 12356-Z6L-000

COVER, BREATHER

$11.99

$

Usually ships in 3-6 days

0

3

Honda 12367-Z6L-000

FILTER, BREATHER

$3.99

$

Usually ships in 3-6 days

0

4

Honda 15424-Z6L-000

BOLT, SEALING

$6.49

$

Usually ships in 3-6 days

0

5

Honda 15571-ZM7-003

VALVE, OIL OUTLET

$3.99

$

Usually ships in 3-6 days

0

6

Honda 15572-Z6L-000

PLATE, STOPPER

$1.99

$

In Stock, only 2 left!

0

7

Honda 16541-Z6L-010

SHAFT, GOVERNOR ARM

$32.99

$

Usually ships in 3-6 days

0

8

Honda 35480-Z6L-003

SWITCH ASSY., OIL LEVEL

$60.99

$

Usually ships in 3-6 days

0

11

Honda 90404-Z6L-000

WASHER, PLAIN (10MM)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 90709-Z6L-000

PIN, DOWEL (12X20)

$4.49

$

Usually ships in 3-6 days

0

13

Honda 91201-Z6L-003

OIL SEAL (38X58X9)

$8.49

$

In Stock, Qty 11

0

14

Honda 91203-Z6L-003

OIL SEAL (10X16X5)

$4.49

$

Usually ships in 3-6 days

0

15

Honda 91308-Z6L-003

GASKET, OIL PASSAGE

$2.49

$

In Stock, Qty 16

0

16

Honda 91309-Z6L-000

O-RING (37.9X2.4)

$3.99

$

Usually ships in 3-6 days

0

17

Honda 92800-20000

BOLT, DRAIN PLUG (20MM)

$7.49

$

Usually ships in 3-6 days

0

18

Honda 92900-10040-0B

BOLT, STUD (10X40)

$10.99

$

Usually ships in 3-6 days

0

19

Honda 93500-03008-0A

SCREW, PAN (3X8)

$1.49

$

In Stock, only 1 left!

0

20

Honda 94109-20000

WASHER, DRAIN PLUG (20MM)

$1.99

$

In Stock, only 4 left!

0

21

Honda 94251-10000

PIN, LOCK (10MM)

$1.99

$

In Stock, Qty 5

0

22

Honda 95701-06014-00

BOLT, FLANGE (6X14)

$1.49

$

In Stock, Qty 5

0

23

Honda 95701-06016-00

BOLT, FLANGE (6X16)

$2.49

$

In Stock, Qty 20+

0
