GX630 RH QXF (GCAMH) - Honda Engine, Made in China (SN: GCAMH-1000001 - GCAMH-1999999) AIR CLEANER Parts Diagram

Engine, Made in China

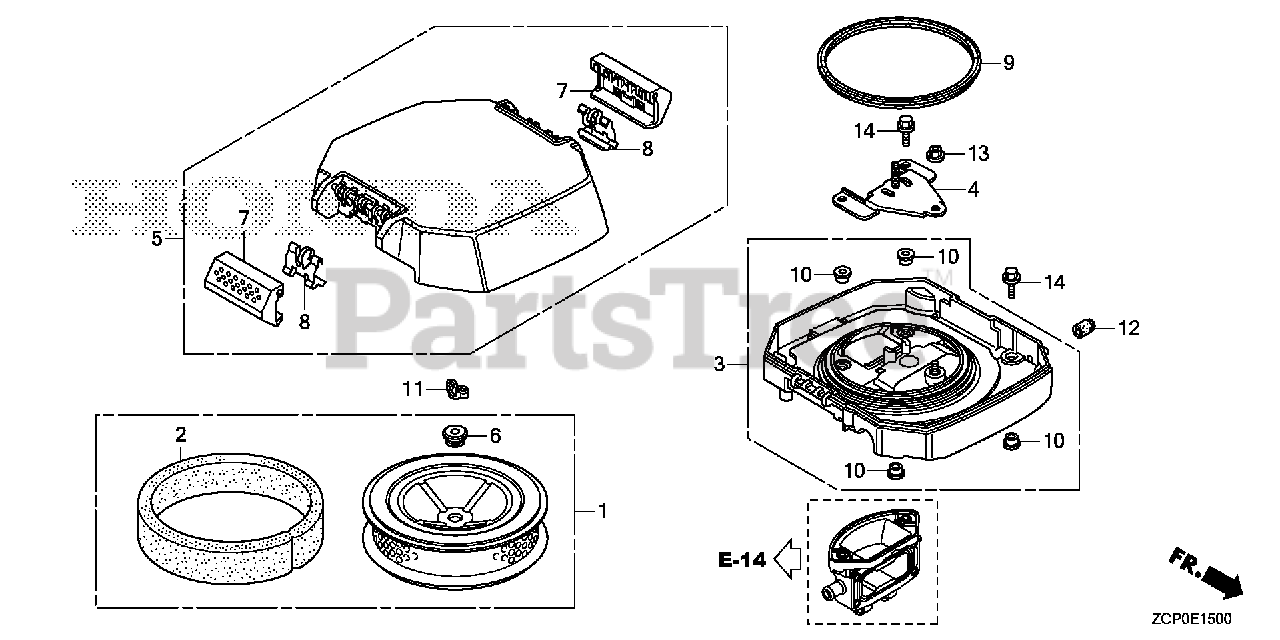

AIR CLEANER Parts Diagram

  • Title

1

Honda 17210-Z6L-010

ELEMENT, AIR CLEANER

$45.99

$

In Stock, Qty 9

0

2

Honda 17218-Z6L-000

FILTER (OUTER)

$12.99

$

In Stock, Qty 6

0

3

Honda 17220-Z6L-000

HOUSING, AIR CLEANER

$56.99

$

Usually ships in 3-6 days

0

4

Honda 17223-Z6L-000

STAY, AIR CLEANER ELEMENT

$11.99

$

Usually ships in 3-6 days

0

5

Honda 17230-Z6L-010

SEE PART DETAILS - PRI; COVER, AIR CLEANER

$80.99

$

In Stock, only 1 left!

0

6

Honda 17232-Z2E-000

GROMMET, AIR CLEANER

$5.49

$

Usually ships in 3-6 days

0

7

Honda 17235-Z6L-300

KNOB, AIR CLEANER COVER
(Superseded to 17235-Z6L-310)

Note: Use up to Engine SN 1026259.

$10.99

$

Usually ships in 3-6 days

0

7

Honda 17235-Z6L-310

KNOB, AIR CLEANER COVER

Note: Use from Engine SN 1026260.

$10.99

$

Usually ships in 3-6 days

0

8

Honda 17236-Z6L-300

SPRING, AIR CLEANER HOUSING COVER

$11.99

$

Usually ships in 3-6 days

0

9

Honda 17417-Z6L-000

GASKET, AIR CLEANER HOUSING

$8.49

$

In Stock, only 2 left!

0

10

Honda 19619-Z0A-300

COLLAR, FAN COVER

$2.49

$

In Stock, only 2 left!

0

11

Honda 90325-044-000

NUT, TOOL BOX SETTING

$5.49

$

In Stock, Qty 20+

0

12

Honda 90802-Z6L-000

CAP, SEALING

$3.49

$

Usually ships in 3-6 days

0

13

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

14

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$2.49

$

In Stock, Qty 7

0
