GX630 R VD (GCBEK) - Honda Engine, Made in Japan (SN: GCBEK-1000001 - GCBEK-9999999) CONTROL (2) Parts Diagram

Engine, Made in Japan

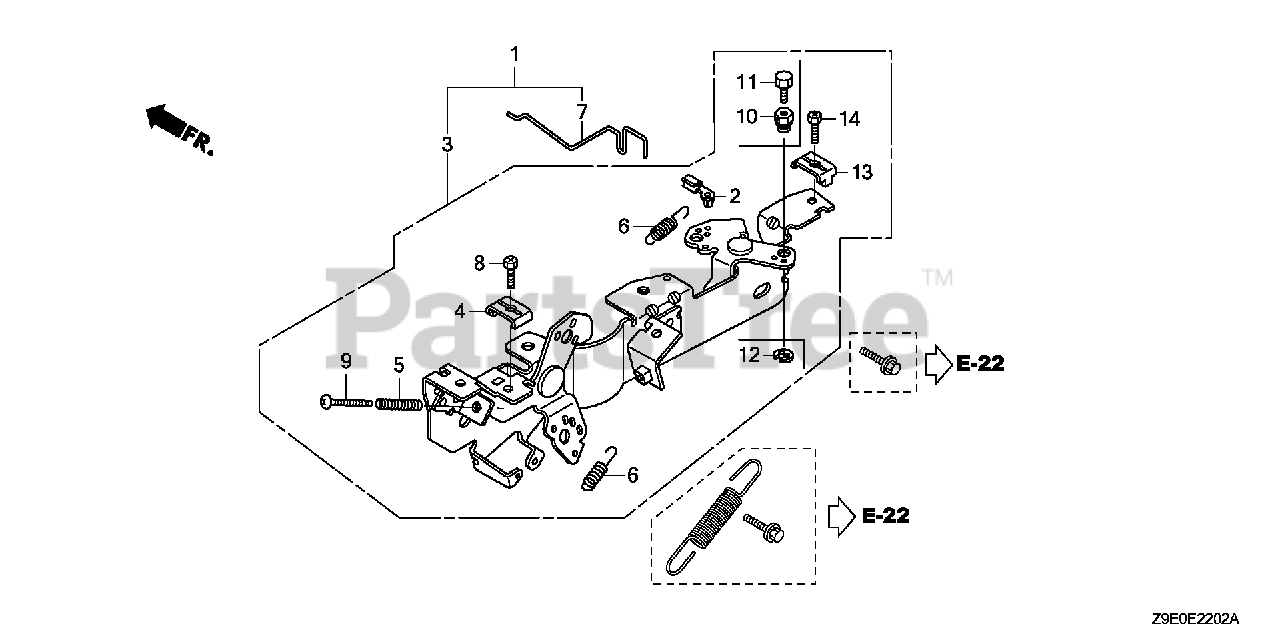

CONTROL (2) Parts Diagram

  • Title
1

Honda 04101-Z6L-800

CONTROL KIT

Note: Use up to Engine SN 1030713.

$89.99

$

Usually ships in 3-6 days

0

2

Honda 16263-Z0G-010

SEE PART DETAILS - PRI; JOINT, ROD

$3.49

$

Usually ships in 3-6 days

0

3

Honda 16500-Z6L-802

CONTROL ASSY.

Note: Use from Engine SN 1030714 to 1059691.

$93.99

$

Usually ships in 3-6 days

0

3

Honda 16500-Z6L-840

CONTROL ASSY.

Note: Use from Engine SN 1059692.

$96.99

$

Usually ships in 3-6 days

0

4

Honda 16576-891-000

HOLDER, CABLE (Honda Code 0800466).

Note: Use up to Engine SN 1059691.

$4.99

$

Usually ships in 3-6 days

0

4

Honda 16576-891-000

HOLDER, CABLE (Honda Code 0800466).

Note: Use from Engine SN 1059692.

$4.99

$

Usually ships in 3-6 days

0

5

Honda 16584-883-300

SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.

$4.99

$

In Stock, Qty 7

0

6

Honda 16592-ZJ1-000

SPRING, CABLE RETURN (Honda Code 4209581).

$2.49

$

In Stock, only 2 left!

0

7

Honda 16611-Z6L-010

ROD, CHOKE CONTROL

Note: Use from Engine SN 1030714.

$5.99

$

Usually ships in 3-6 days

0

8

Honda 92301-05016-0A

SEE PART DETAILS - PRI; BOLT, RECESSED (5X16) (Honda Code 3509742).

Note: Use up to Engine SN 1059691.

$1.99

$

Usually ships in 3-6 days

0

8

Honda 92301-05016-0A

SEE PART DETAILS - PRI; BOLT, RECESSED (5X16) (Honda Code 3509742).

Note: Use from Engine SN 1059692.

$1.99

$

Usually ships in 3-6 days

0

9

Honda 93500-05040-0A

SCREW, PAN (5X40)

$0.99

$

Usually ships in 3-6 days

0

10

Honda 16594-883-010

SEE PART DETAILS - PRI; HOLDER, WIRE (Honda Code 2686558).

Note: Use from Engine SN 1059692.

$8.99

$

In Stock, only 3 left!

0

11

Honda 92301-04006-0H

BOLT, RECESSED (4X6)

Note: Use from Engine SN 1059692.

$0.99

$

In Stock, Qty 6

0

12

Honda 94540-05018

E-RING (5MM)

Note: Use from Engine SN 1059692.

$3.99

$

In Stock, Qty 5

0

13

Honda 16576-891-000

HOLDER, CABLE (Honda Code 0800466).

Note: Use from Engine SN 1059692.

$4.99

$

Usually ships in 3-6 days

0

14

Honda 92301-05016-0A

SEE PART DETAILS - PRI; BOLT, RECESSED (5X16) (Honda Code 3509742).

Note: Use from Engine SN 1059692.

$1.99

$

Usually ships in 3-6 days

0
