GX630 R QXC2 (GCBEK) - Honda Engine, Made in Japan (SN: GCBEK-1000001 - GCBEK-9999999) CONTROL (1) Parts Diagram

Engine, Made in Japan

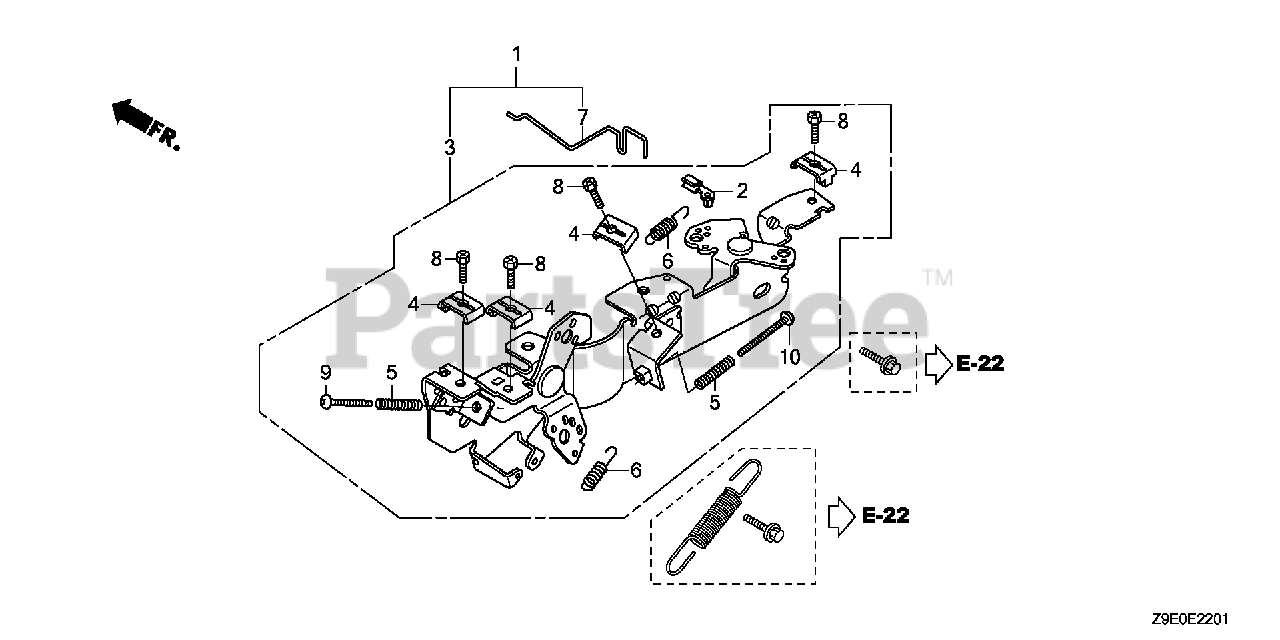

CONTROL (1) Parts Diagram

  • Title

1

Honda 04101-Z6L-000

CONTROL KIT

Note: Use up to Engine SN 1030872.

$90.99

$

Usually ships in 3-6 days

0

2

Honda 16263-Z0G-010

SEE PART DETAILS - PRI; JOINT, ROD

$3.49

$

In Stock, only 2 left!

0

3

Honda 16500-Z6L-020

CONTROL ASSY.

Note: Use from Engine SN 1030873.

$96.99

$

Usually ships in 3-6 days

0

4

Honda 16576-891-000

HOLDER, CABLE

$4.99

$

Usually ships in 3-6 days

0

5

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$4.99

$

In Stock, Qty 7

0

6

Honda 16592-ZJ1-000

SPRING, CABLE RETURN

$2.49

$

In Stock, only 2 left!

0

7

Honda 16611-Z6L-010

ROD, CHOKE CONTROL

Note: Use from Engine SN 1030873.

$5.99

$

Usually ships in 3-6 days

0

8

Honda 92301-05016-0A

BOLT, RECESSED (5X16)

$1.99

$

Usually ships in 3-6 days

0

9

Honda 93500-05030-0A

SCREW, PAN (5X30)

$1.49

$

Usually ships in 3-6 days

0

10

Honda 93500-05045-0A

SCREW, PAN (5X45)

$1.99

$

Usually ships in 3-6 days

0
