GX630 R QWF2 (GCBEK) - Honda Engine, Made in Japan (SN: GCBEK-1000001 - GCBEK-9999999) CONTROL (4) Parts Diagram

Engine, Made in Japan

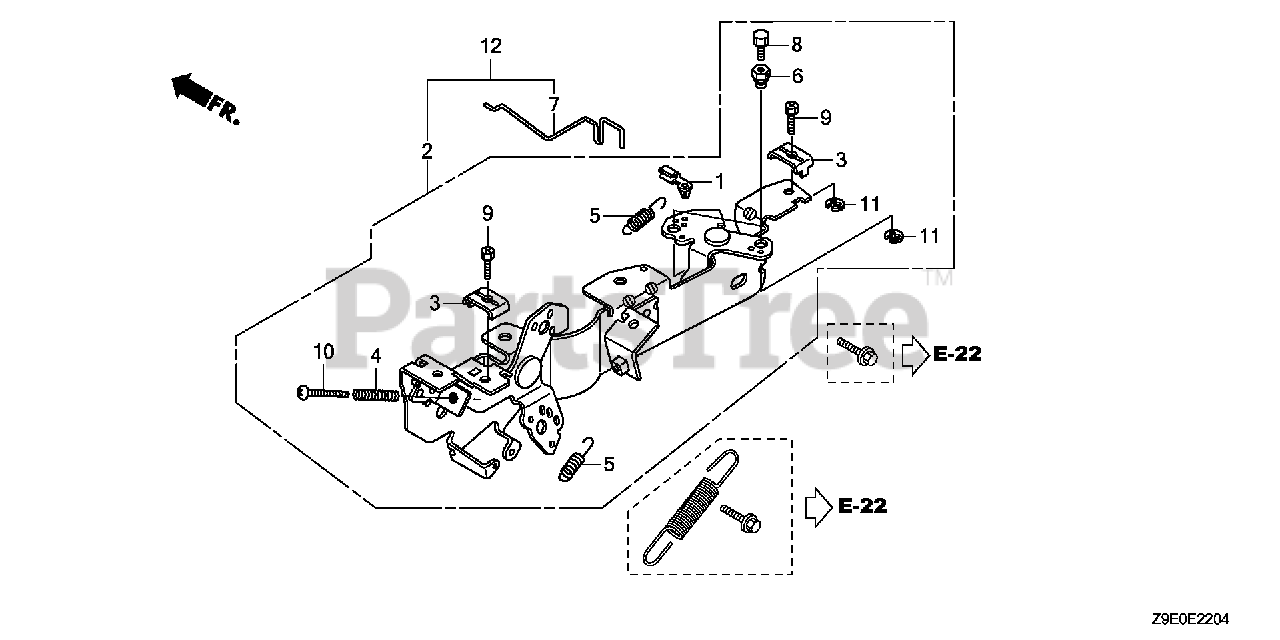

CONTROL (4) Parts Diagram

  • Title

1

Honda 16263-Z0G-010

SEE PART DETAILS - PRI; JOINT, ROD

Note: Use from Engine SN 1001213.

$3.99

$

Usually ships in 3-6 days

0

2

Honda 16500-Z6L-822

CONTROL ASSY.

Note: Use from Engine SN 1004893.

$93.99

$

Usually ships in 3-6 days

0

3

Honda 16576-891-000

HOLDER, CABLE

Note: Use from Engine SN 1001213.

$5.49

$

In Stock, only 1 left!

0

4

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

Note: Use from Engine SN 1001213.

$5.49

$

In Stock, Qty 6

0

5

Honda 16592-ZJ1-000

SPRING, CABLE RETURN

Note: Use from Engine SN 1001213.

$2.49

$

In Stock, only 1 left!

0

6

Honda 16594-883-010

HOLDER, WIRE

Note: Use from Engine SN 1001213.

$9.49

$

In Stock, only 3 left!

0

7

Honda 16611-Z6L-010

ROD, CHOKE CONTROL

Note: Use from Engine SN 1004893.

$6.49

$

Usually ships in 3-6 days

0

8

Honda 92301-04006-0H

BOLT, RECESSED (4X6)

Note: Use from Engine SN 1001213.

$0.99

$

In Stock, Qty 6

0

9

Honda 92301-05016-0A

BOLT, RECESSED (5X16)

Note: Use from Engine SN 1001213.

$1.99

$

Usually ships in 3-6 days

0

10

Honda 93500-05040-0A

SCREW, PAN (5X40)

Note: Use from Engine SN 1001213.

$0.99

$

Usually ships in 3-6 days

0

11

Honda 94540-05018

E-RING (5MM)

Note: Use from Engine SN 1001213.

$3.99

$

In Stock, only 4 left!

0

12

Honda 04101-Z6L-820

CONTROL KIT

Note: Use from Engine SN 1001213 to 1004892.

$99.99

$

Usually ships in 3-6 days

0
