GX630 QKW1 (GCBBK) - Honda Engine, Made in Japan (SN: GCBBK-1000001 - GCBBK-9999999) CONTROL Parts Diagram

Engine, Made in Japan

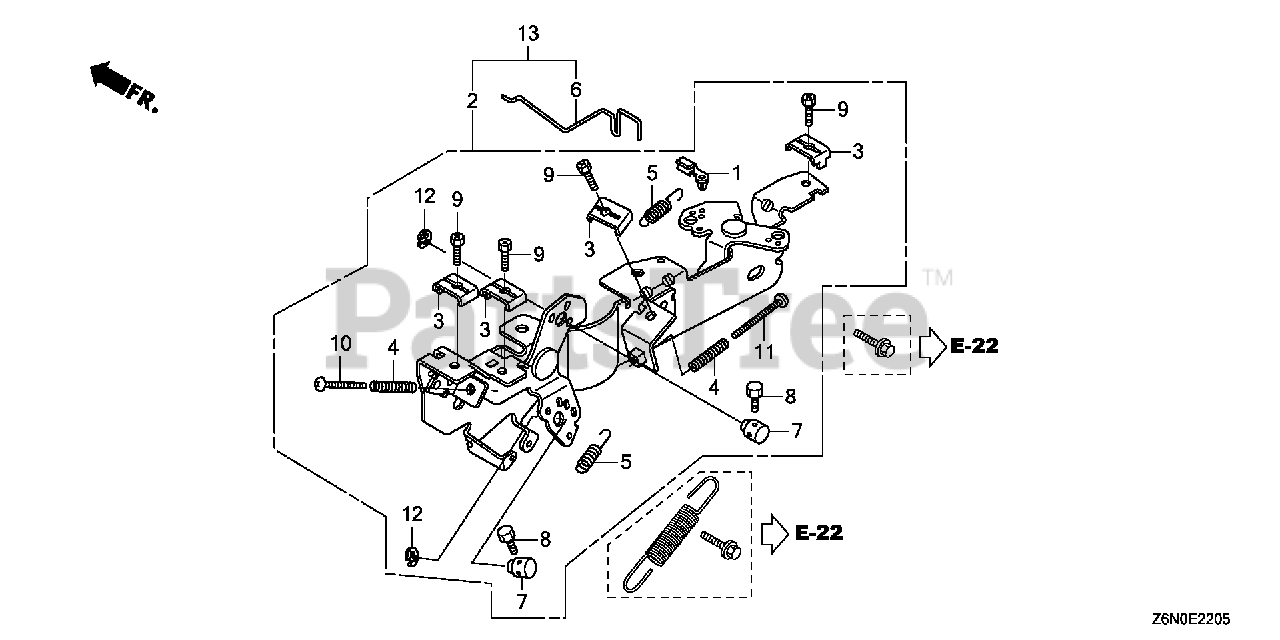

CONTROL Parts Diagram

  • Title

1

Honda 16263-Z0G-010

SEE PART DETAILS - PRI; JOINT, ROD

$3.99

$

Usually ships in 3-6 days

0

2

Honda 16500-Z6L-832

CONTROL ASSY.

Note: Use from Engine SN 1011000.

$93.99

$

In Stock, only 1 left!

0

3

Honda 16576-891-000

HOLDER, CABLE

$5.49

$

In Stock, only 1 left!

0

4

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$5.49

$

In Stock, Qty 7

0

5

Honda 16592-ZJ1-000

SPRING, CABLE RETURN

$2.49

$

In Stock, only 2 left!

0

6

Honda 16611-Z6L-010

ROD, CHOKE CONTROL

Note: Use from Engine SN 1011000.

$6.49

$

Usually ships in 3-6 days

0

7

Honda 16617-Z6L-000

HOLDER, CABLE

$7.49

$

Usually ships in 3-6 days

0

8

Honda 92301-04006-0H

BOLT, RECESSED (4X6)

$0.99

$

In Stock, Qty 6

0

9

Honda 92301-05016-0A

BOLT, RECESSED (5X16)

$1.99

$

Usually ships in 3-6 days

0

10

Honda 93500-05030-0A

SCREW, PAN (5X30)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 93500-05040-0A

SCREW, PAN (5X40)

Note: Use up to Engine SN 1001263.

$0.99

$

Usually ships in 3-6 days

0

11

Honda 93500-05045-0A

SCREW, PAN (5X45)

Note: Use from Engine SN 1001264.

$1.99

$

Usually ships in 3-6 days

0

12

Honda 94540-05018

E-RING (5MM)

$3.99

$

In Stock, only 4 left!

0

13

Honda 04101-Z6L-830

SEE PART DETAILS - PRI; CONTROL KIT

Note: Use up to Engine SN 1010999.

$101.99

$

Usually ships in 3-6 days

0
