GX620 VXA1 (GCAD) - Honda Engine, Made in Japan (SN: GCAD-1000001 - GCAD-1999999) STARTER MOTOR Parts Diagram

Engine, Made in Japan

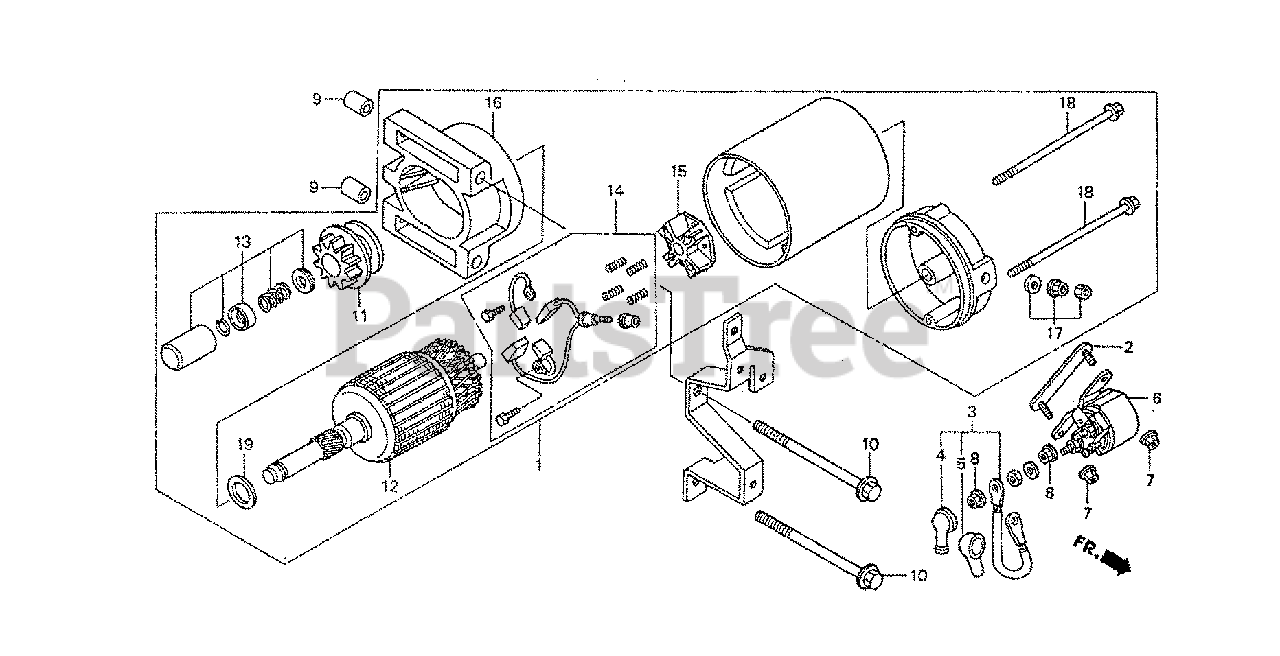

STARTER MOTOR Parts Diagram

  • Title
1

Honda 31200-ZJ1-004

MOTOR ASSY., STARTER

Note: (Honda Code 4210092).

$

$

Not available

2

Honda 31243-ZJ1-800

BRACKET, STARTER MAGNETIC SETTING

Note: (Honda Code 4210191).

$18.99

$

Usually ships in 3-6 days

0

3

Honda 32402-ZJ1-810

CABLE, MAGNET SWITCH

Note: (Honda Code 4210308).

$

$

Not available

4

Honda 32411-KB9-930

COVER A, MAGNETIC SWITCH

Note: (Honda Code 1853225).

$5.99

$

Usually ships in 3-6 days

0

5

Honda 32411-402-000

COVER, STARTER MOTOR TERMINAL

Note: (Honda Code 0953968).

$4.99

$

Usually ships in 3-6 days

0

6

Honda 35850-ZJ1-811

SWITCH ASSY., STARTER MAGNETIC

Note: (Honda Code 4210340).

$110.99

$

Usually ships in 3-6 days

0

7

Honda 94050-06000

NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

8

Honda 94070-06080

NUT-WASHER (6MM)

Note: (Honda Code 0660795).

$1.99

$

Usually ships in 3-6 days

0

9

Honda 94301-10120

PIN, DOWEL (10X12)

Note: (Honda Code 2028900).

$3.49

$

Usually ships in 3-6 days

0

10

Honda 95701-08110-00

BOLT, FLANGE (8X110)

Note: (Honda Code 4210555).

$3.99

$

Usually ships in 3-6 days

0

11

Honda 31213-ZJ1-004

GEAR SET, PINION

Note: (Honda Code 4210100).

$47.99

$

Usually ships in 3-6 days

0

12

Honda 31217-ZJ1-004

ARMATURE

Note: (Honda Code 4210126).

$69.99

$

Usually ships in 3-6 days

0

13

Honda 31225-ZJ1-004

STOPPER SET, PINION

Note: (Honda Code 4210134).

$20.99

$

Usually ships in 3-6 days

0

14

Honda 31226-ZJ1-004

BRUSH SET
(Superseded to 31226-ZF5-L31)

Note: (Honda Code 4210142).

$23.99

$

Usually ships in 3-6 days

0

15

Honda 31231-ZJ1-004

HOLDER, BRUSH

Note: (Honda Code 4210159).

$7.49

$

Usually ships in 3-6 days

0

16

Honda 31235-ZJ1-004

BRACKET, FR.

Note: (Honda Code 4210167).

$52.99

$

Usually ships in 3-6 days

0

17

Honda 31237-ZJ1-004

NUT SET, TERMINAL

Note: (Honda Code 4210183).

$1.49

$

Usually ships in 3-6 days

0

18

Honda 31261-ZJ1-004

BOLT, THROUGH

Note: (Honda Code 4210209).

$3.99

$

Usually ships in 3-6 days

0

19

Honda 90407-ZJ1-004

WASHER, THRUST

Note: (Honda Code 4210456).

$6.49

$

Usually ships in 3-6 days

0
