GX620 VAFU (GDAH) - Honda Engine, Made in Japan (SN: GDAH-1000001 - GDAH-1099999) CRANKCASE COVER Parts Diagram

Engine, Made in Japan

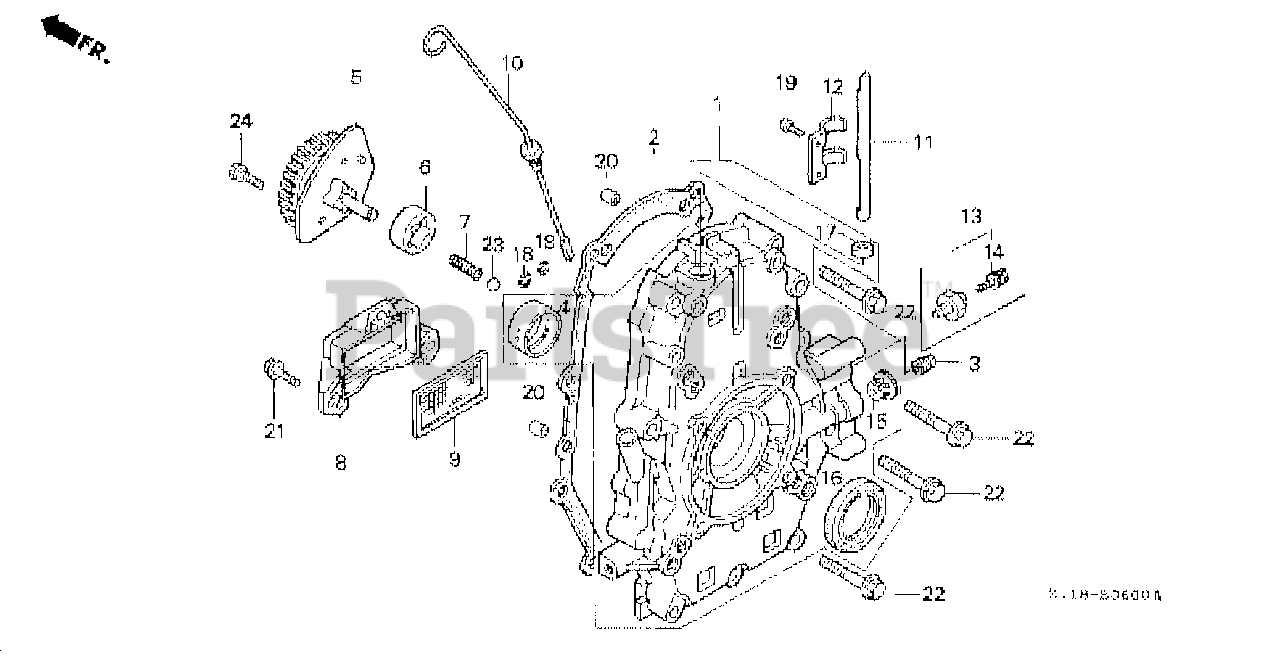

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-ZJ1-600

COVER ASSY., CRANKCASE

Note: (Honda Code 4589586).

$637.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZJ1-000

GASKET, CASE COVER

Note: (Honda Code 4208898).

$

$

Not available

4

Honda 13321-ZJ1-000

BEARING A, MAIN (TO SELECT CORRECT BEARING,

Note: (Optional). (Honda Code 4545836).

$

$

Not available

4

Honda 13322-ZJ1-000

BEARING B, MAIN (TO SELECT CORRECT BEARING,

Note: (Optional). (Honda Code 4545844).

$

$

Not available

4

Honda 13323-ZJ1-000

BEARING C, MAIN (TO SELECT CORRECT BEARING,

Note: (Optional). (Honda Code 4545851).

$

$

Not available

5

Honda 15120-ZJ1-000

COVER ASSY., OIL PUMP
(Superseded to 15120-ZJ1-010)

Note: (Honda Code 4209276).

$76.99

$

In Stock, only 1 left!

0

6

Honda 15124-ZJ1-003

ROTOR, OIL PUMP (OUTER)

Note: (Honda Code 4209284).

$27.99

$

Usually ships in 3-6 days

0

7

Honda 15232-ZJ1-000

SPRING, RELIEF VALVE

Note: (Honda Code 4209292).

$3.49

$

In Stock, only 1 left!

0

8

Honda 15348-ZJ1-000

COVER, OIL FILTER

Note: (Honda Code 4209300).

$

$

Not available

9

Honda 15427-ZJ1-000

SCREEN, OIL FILTER

Note: (Honda Code 4209334).

$14.99

$

Usually ships in 3-6 days

0

10

Honda 15655-ZJ1-000

DIPSTICK, OIL

Note: (Honda Code 4209342).

$

$

Not available

11

Honda 16541-ZJ1-000

SHAFT, GOVERNOR ARM

Note: (Honda Code 4209516).

$

$

Not available

12

Honda 16542-ZJ1-000

FORK, GOVERNOR

Note: (Honda Code 4209524).

$14.99

$

Usually ships in 3-6 days

0

13

Honda 37240-ZG3-E01

SWITCH, OIL PRESSURE

Note: (Honda Code 3704186).

$47.99

$

Usually ships in 3-6 days

0

14

Honda 90002-ZG5-004

SCREW-WASHER (4X8)

Note: (Honda Code 3640406).

$9.99

$

Usually ships in 3-6 days

0

15

Honda 90007-ZG8-300

BOLT, SEALING

Note: (Honda Code 4312740).

$9.99

$

Usually ships in 3-6 days

0

16

Honda 91201-ZJ1-003

OIL SEAL (38X58X11)

Note: (Honda Code 4210480).

$13.99

$

In Stock, only 2 left!

0

17

Honda 91259-VM0-000

OIL SEAL (10X16X4.5)

Note: (Honda Code 1775170).

$6.49

$

In Stock, only 1 left!

0

18

Honda 91302-MB6-830

O-RING (13X3.0)

Note: (Honda Code 2545101).

$2.99

$

In Stock, only 2 left!

0

19

Honda 93500-05010-0A

SCREW, PAN (5X10)

Note: (Honda Code 0156976).

$1.49

$

In Stock, Qty 8

0

20

Honda 94301-08140

PIN A, DOWEL (8X14)

Note: (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

21

Honda 95701-06020-00

BOLT, FLANGE (6X20)

Note: (Honda Code 2105815).

$2.49

$

In Stock, Qty 6

0

22

Honda 95701-08050-00

BOLT, FLANGE (8X50)

Note: (Honda Code 2935740).

$3.49

$

In Stock, Qty 5

0

23

Honda 96211-12000

BALL, STEEL (#12) (3/8)

Note: (Honda Code 1847086).

$1.49

$

Usually ships in 3-6 days

0

24

Honda 96600-06016-00

BOLT, SOCKET (6X16)

Note: (Honda Code 2154698).

$2.49

$

Usually ships in 3-6 days

0
