GX620 U1 QZB (GCARK) - Honda Engine, Made in Japan (SN: GCARK-1000001 - GCARK-9999999) CYLINDER BARREL Parts Diagram

Engine, Made in Japan

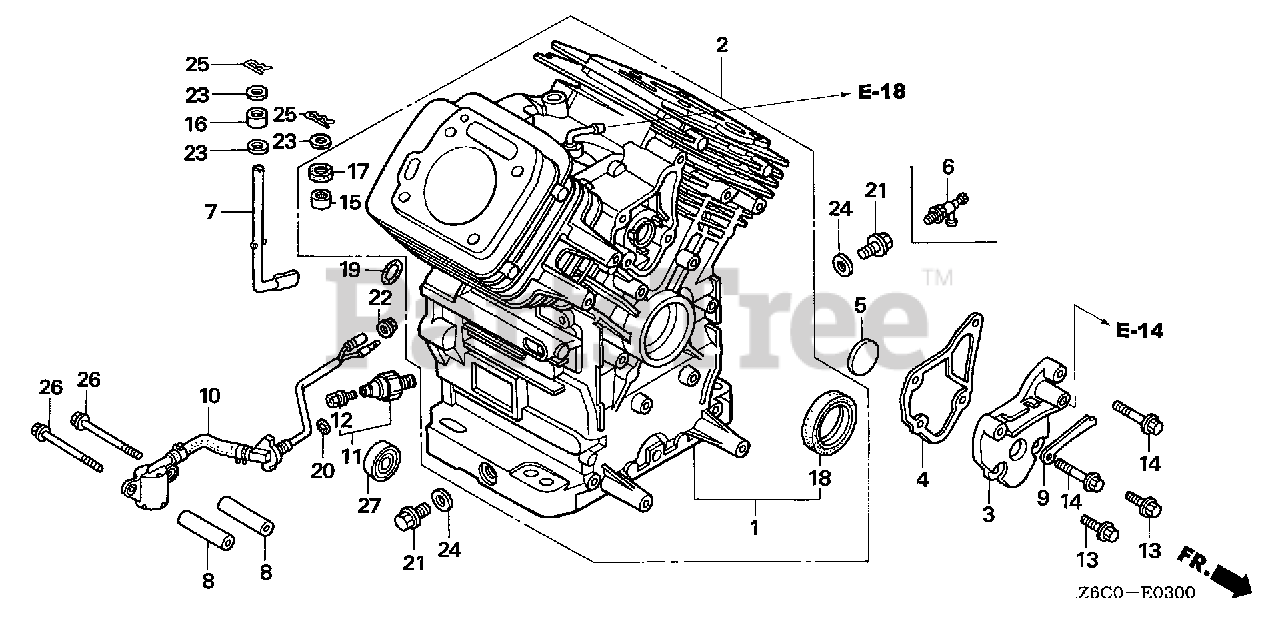

CYLINDER BARREL Parts Diagram

  • Title
2

Honda 12000-ZJ1-408

CYLINDER ASSY. (NOT AVAILABLE)

Note: Use up to Engine SN 1078571.

$

$

Currently unavailable

2

Honda 12000-ZJ1-418

CYLINDER ASSY.

Note: Use from Engine SN 1078572.

$1514.99

$

Usually ships in 3-6 days

0

3

Honda 12356-ZJ1-000

COVER, BREATHER

$33.99

$

Usually ships in 3-6 days

0

4

Honda 12358-ZJ1-000

GASKET, BREATHER COVER

$12.99

$

In Stock, only 1 left!

0

5

Honda 12372-ZE2-300

VALVE, BREATHER

$3.99

$

In Stock, Qty 5

0

6

Honda 15558-ZJ1-010AH

VALVE, DRAIN (14X1.5)

Note: (Optional).

$29.99

$

Usually ships in 3-6 days

0

7

Honda 16541-ZJ1-840

SHAFT, GOVERNOR ARM

$48.99

$

Usually ships in 3-6 days

0

9

Honda 31511-ZJ1-000

CLAMP, WIRE

$4.49

$

Usually ships in 3-6 days

0

11

Honda 35490-Z6D-003

SWITCH ASSY., OIL PRESSURE

Note: Use from Engine SN 1024499.

$

$

Not available

11

Honda 37240-ZG5-004

SWITCH, OIL PRESSURE

Note: Use up to Engine SN 1024498.

$44.99

$

Usually ships in 3-6 days

0

12

Honda 90002-ZG5-004

SCREW-WASHER (4X8)

Note: Use up to Engine SN 1024498.

$9.99

$

Usually ships in 3-6 days

0

12

Honda 90002-ZW2-F01

SCREW-WASHER (4X8)

Note: Use from Engine SN 1024499.

$1.99

$

In Stock, only 1 left!

0

13

Honda 90029-888-000

BOLT, FLANGE (6X16) (CT200)

$2.99

$

Usually ships in 3-6 days

0

14

Honda 90031-ZE1-000

BOLT, FLANGE (6X32) (CT200)

$3.99

$

In Stock, only 2 left!

0

15

Honda 91001-ZJ1-841

BEARING, NEEDLE (8X12.7X11.1)

$9.49

$

Usually ships in 3-6 days

0

16

Honda 91002-ZJ1-841

BEARING, NEEDLE (8X12X10)

$12.99

$

Usually ships in 3-6 days

0

17

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

$5.49

$

In Stock, Qty 11

0

18

Honda 91201-ZJ1-841

OIL SEAL (38X58X9)

$11.99

$

In Stock, only 3 left!

0

19

Honda 91302-MB6-830

O-RING (13X3.0)

$2.99

$

In Stock, only 2 left!

0

21

Honda 92800-14000

BOLT, DRAIN PLUG (14MM)

$5.99

$

Usually ships in 3-6 days

0

23

Honda 94102-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 9

0

24

Honda 94109-14000

WASHER, DRAIN PLUG (14MM)

$0.99

$

In Stock, Qty 20+

0

25

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 9

0

27

Honda 96140-60030-10

BEARING, RADIAL BALL (6003)

$21.99

$

Usually ships in 3-6 days

0
