GX620 U1 QXF (GCARK) - Honda Engine, Made in Japan (SN: GCARK-1000001 - GCARK-9999999) MUFFLER (5) Parts Diagram

Engine, Made in Japan

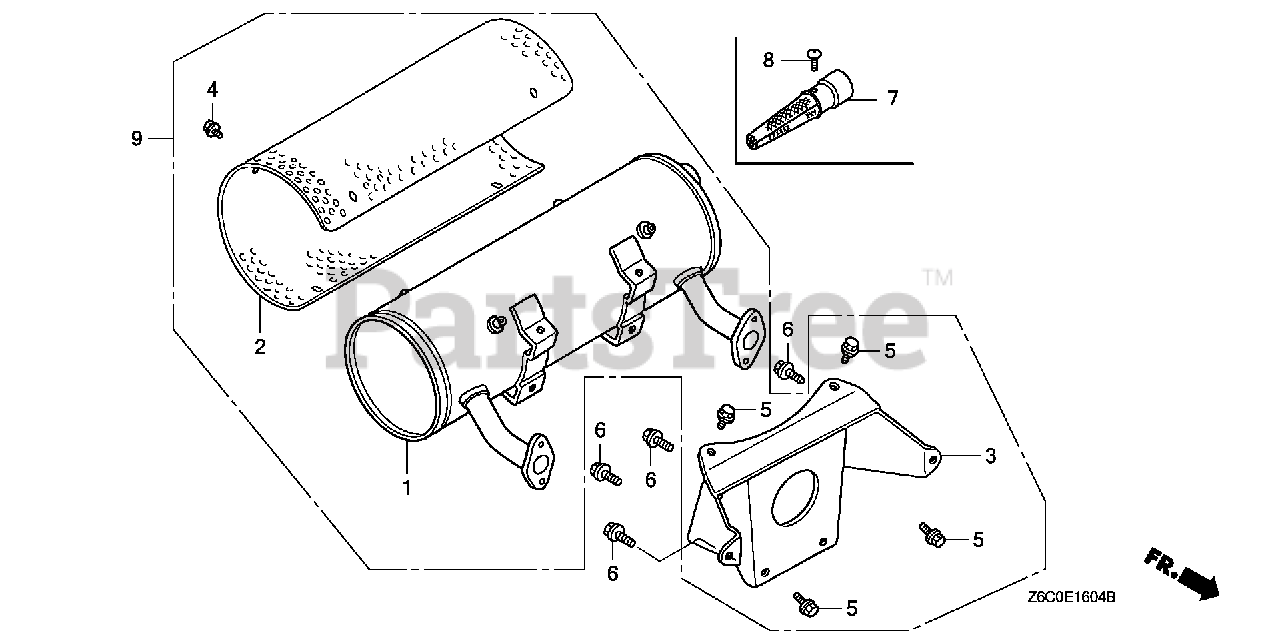

MUFFLER (5) Parts Diagram

  • Title
1

Honda 18300-ZJ1-891

MUFFLER ASSY. (HIGH-L) (FUTABA) (SILVER MUFFLER)

Note: Use up to Engine SN 1097116.

$430.99

$

Usually ships in 3-6 days

0

1

Honda 18310-ZJ1-802

MUFFLER COMP. (HIGH-L) (FUTABA) (SILVER MUFFLER) (FOR SILVER MUFFLER)

Note: Use from Engine SN 1097117.

$345.99

$

Usually ships in 3-6 days

0

2

Honda 18321-ZJ1-003

PROTECTOR, MUFFLER (HIGH) (FUTABA)

Note: Use from Engine SN 1097117.

$

$

Not available

2

Honda 18321-ZN1-003

PROTECTOR, MUFFLER (HIGH)(NELSON) (FOR BLACK MUFFLER)

Note: Use up to Engine SN 1097116.

$66.99

$

Usually ships in 3-6 days

0

3

Honda 18338-ZJ1-000

SEE PART DETAILS - PRI; STAY, MUFFLER (HIGH-FUTABA) (FOR SILVER MUFFLER)

Note: Use from Engine SN 1097117.

$70.99

$

Usually ships in 3-6 days

0

3

Honda 18338-ZJ1-000

SEE PART DETAILS - PRI; STAY, MUFFLER (HIGH-FUTABA) (FOR SILVER MUFFLER)

Note: Use up to Engine SN 1097116.

$70.99

$

Usually ships in 3-6 days

0

3

Honda 18338-ZJ1-841

SEE PART DETAILS - SUP; STAY, MUFFLER (HIGH-NELSON) (FOR BLACK MUFFLER)
(Superseded to 18338-ZJ1-000)

Note: Use up to Engine SN 1097116.

$70.99

$

Usually ships in 3-6 days

0

4

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$3.49

$

Usually ships in 3-6 days

0

5

Honda 95701-08014-00

BOLT, FLANGE (8X14)

$2.49

$

In Stock, Qty 20+

0

6

Honda 95701-08020-00

BOLT, FLANGE (8X20)

$2.49

$

In Stock, only 1 left!

0

7

Honda 06185-Z6L-010

SEE PART DETAILS - PRI; ARRESTER KIT (HIGH)

Note: (Optional).

$58.99

$

Usually ships in 3-6 days

0

7

Honda 18355-ZJ1-010

ARRESTER, SPARK (FOR SILVER MUFFLER)

Note: (Optional). Use from Engine SN 1097117.

$60.99

$

Usually ships in 3-6 days

0

8

Honda 90007-Z6L-000

SCREW, TAPPING (5X8) (FOR SILVER MUFFLER)

Note: (Optional). Use from Engine SN 1097117.

$2.49

$

Usually ships in 3-6 days

0

8

Honda 93901-250J0

SCREW, TAPPING (5X8) (FOR SILVER MUFFLER)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

9

Honda 18300-ZJ1-891

MUFFLER ASSY. (HIGH-L) (FUTABA) (SILVER MUFFLER)

Note: Use up to Engine SN 1097116.

$430.99

$

Usually ships in 3-6 days

0
