GX620 U1 QXE (GCARK) - Honda Engine, Made in Japan (SN: GCARK-1000001 - GCARK-9999999) FUEL TANK Parts Diagram

Engine, Made in Japan

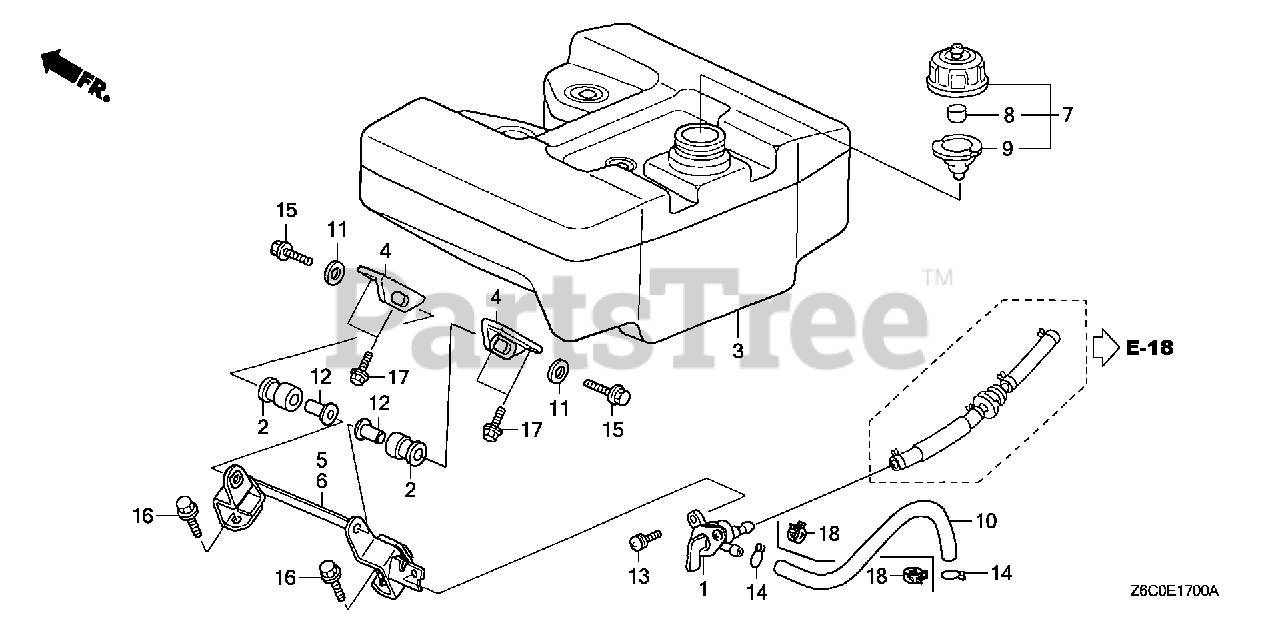

FUEL TANK Parts Diagram

  • Title

1

Honda 16950-YA0-802

PETCOCK ASSY.

$43.99

$

Usually ships in 3-6 days

0

2

Honda 17508-GBF-830

RUBBER, TANK MOUNTING

$8.49

$

Usually ships in 3-6 days

0

3

Honda 17510-ZJ1-840

TANK, FUEL
(Superseded to 17510-ZJ1-841)

Note: Use up to Engine SN 1119542.

$730.99

$

Usually ships in 3-6 days

0

3

Honda 17510-ZJ1-841

TANK, FUEL

Note: Use from Engine SN 1119543.

$730.99

$

Usually ships in 3-6 days

0

4

Honda 17544-ZJ1-840

BRACKET, FUEL TANK

$40.99

$

Usually ships in 3-6 days

0

5

Honda 17561-ZJ1-840

STAY, R. FUEL TANK

$81.99

$

Usually ships in 3-6 days

0

6

Honda 17566-ZJ1-840

STAY, L. FUEL TANK

$88.99

$

Usually ships in 3-6 days

0

7

Honda 17620-ZJ1-840

CAP ASSY., FUEL TANK

Note: Use up to Engine SN 1074550.

$

$

Not available

7

Honda 17620-747-030

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK

Note: Use from Engine SN 1074551.

$14.99

$

In Stock, only 2 left!

0

8

Honda 17622-888-010

SPONGE, FUEL CAP BREATHER

$2.49

$

In Stock, only 4 left!

0

9

Honda 17624-ZJ1-840

GASKET, FUEL CAP

Note: Use up to Engine SN 1074550.

$11.99

$

Usually ships in 3-6 days

0

9

Honda 17624-747-030

GASKET, FUEL CAP

Note: Use from Engine SN 1074551.

$7.99

$

In Stock, only 1 left!

0

10

Honda 17701-Z6D-841

TUBE A, FUEL (FKM)

Note: Use up to Engine SN 1089491.

$20.99

$

Usually ships in 3-6 days

0

10

Honda 17701-Z6D-842

TUBE A, FUEL (FKM)

Note: Use from Engine SN 1089492.

$21.99

$

Usually ships in 3-6 days

0

11

Honda 90404-GE2-760

WASHER, PLAIN (6MM)

$2.99

$

Usually ships in 3-6 days

0

12

Honda 91501-ZJ1-840

COLLAR, TANK SETTING

$8.99

$

Usually ships in 3-6 days

0

13

Honda 93891-05014-00

SCREW-WASHER (5X14)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 95701-06045-07

BOLT, FLANGE (6X45)

$2.99

$

In Stock, Qty 10

0

16

Honda 95701-08020-00

BOLT, FLANGE (8X20)

$2.49

$

In Stock, only 3 left!

0

17

Honda 96001-06016-00

BOLT, FLANGE (6X16)

$1.49

$

In Stock, Qty 5

0

18

Honda 95002-40800-08

CLAMP, TUBE (D8)

$2.99

$

In Stock, only 4 left!

0
