GX620 R1 TXF2 (GCARK) - Honda Engine, Made in Japan (SN: GCARK-1000001 - GCARK-9999999) AIR CLEANER (2) Parts Diagram

Engine, Made in Japan

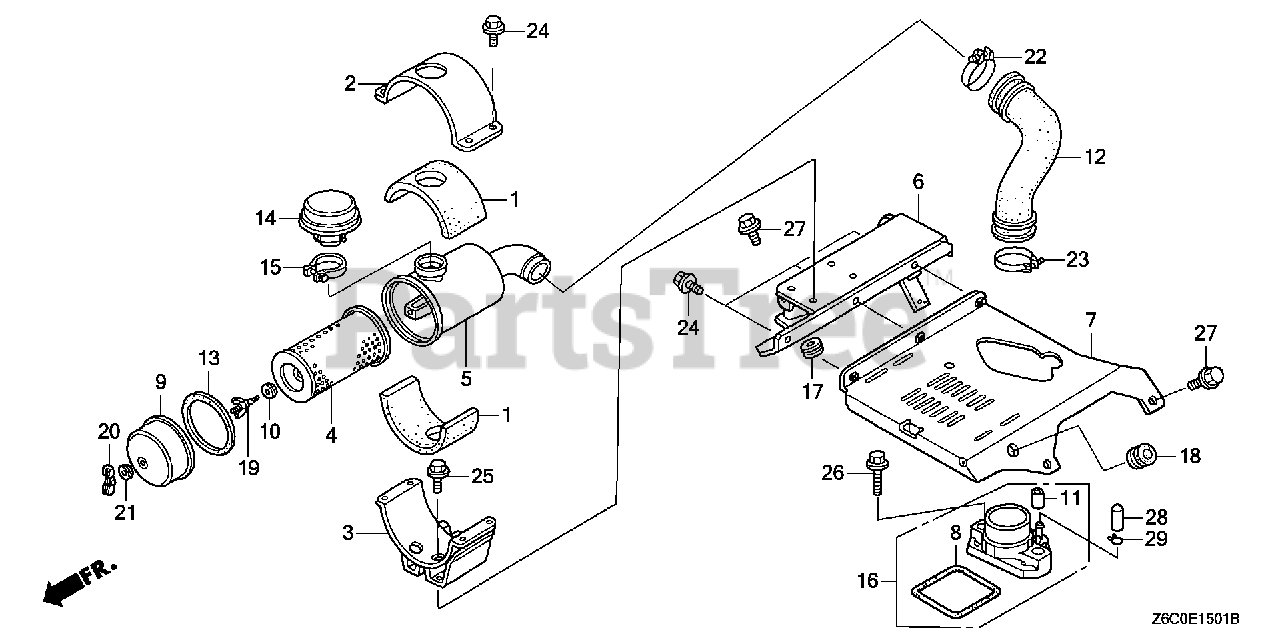

AIR CLEANER (2) Parts Diagram

  • Title

1

Honda 17207-ZJ1-840

RUBBER, AIR CLEANER HOLDER (UPPER)

$16.99

$

Usually ships in 3-6 days

0

2

Honda 17208-ZJ1-840

HOLDER COMP., AIR CLEANER (UPPER)

$35.99

$

Usually ships in 3-6 days

0

3

Honda 17209-ZJ1-840

HOLDER, AIR CLEANER (LOWER)

$77.99

$

Usually ships in 3-6 days

0

4

Honda 17210-759-013

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER

$39.99

$

In Stock, only 1 left!

0

5

Honda 17220-ZJ1-850

HOUSING COMP., AIR CLEANER (SNORKEL)

$110.99

$

Usually ships in 3-6 days

0

6

Honda 17222-ZJ1-850

STAY COMP. A, AIR CLEANER (SNORKEL)

$69.99

$

Usually ships in 3-6 days

0

7

Honda 17224-ZJ1-852

STAY B, AIR CLEANER (SNORKEL)

$48.99

$

Usually ships in 3-6 days

0

8

Honda 17229-ZJ1-840

SEAL, AIR CLEANER HOUSING

$7.49

$

Usually ships in 3-6 days

0

9

Honda 17230-759-003

COVER COMP., AIR CLEANER

$59.99

$

Usually ships in 3-6 days

0

10

Honda 90502-759-003

WASHER, AIR CLEANER

$6.99

$

Usually ships in 3-6 days

0

11

Honda 17238-ZJ4-830

COLLAR A, AIR CLEANER (Honda Code 6224752).

$2.49

$

In Stock, only 3 left!

0

12

Honda 17251-ZJ1-851

TUBE, AIR CLEANER CONNECTING

Note: Use up to Engine SN 1094978.

$50.99

$

In Stock, only 1 left!

0

12

Honda 17251-ZJ1-851

TUBE, AIR CLEANER CONNECTING

$50.99

$

In Stock, only 1 left!

0

13

Honda 17253-759-003

SEAL, AIR CLEANER

$17.99

$

Usually ships in 3-6 days

0

14

Honda 17320-ZG5-801

CAP COMP., IN.

$67.99

$

Usually ships in 3-6 days

0

15

Honda 17330-ZG5-801

CLAMP ASSY.

$7.49

$

Usually ships in 3-6 days

0

16

Honda 17415-Z6C-000

JOINT ASSY., CONNECTING TUBE (B)

$16.99

$

Usually ships in 3-6 days

0

17

Honda 19111-MF5-000

GROMMET, RESERVE TANK (Honda Code 1400134).

$3.99

$

Usually ships in 3-6 days

0

18

Honda 83551-MB9-000

GROMMET

$3.49

$

Usually ships in 3-6 days

0

19

Honda 90113-759-003

BOLT, AIR CLEANER

$14.99

$

Usually ships in 3-6 days

0

20

Honda 90203-ZA0-800

WINGNUT (6MM) (Honda Code 1742238).

$4.49

$

In Stock, only 1 left!

0

21

Honda 17232-891-000

GROMMET, AIR CLEANER (Honda Code 0999763).

$5.99

$

In Stock, Qty 16

0

22

Honda 95018-52250

SEE PART DETAILS - PRI; BAND, AIR CLEANER CONNECTING TUBE (52)

$7.49

$

Usually ships in 3-6 days

0

23

Honda 95018-58250

BAND, AIR CLEANER CONNECTING TUBE (58)

$7.49

$

Usually ships in 3-6 days

0

24

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

25

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

$2.49

$

In Stock, Qty 20+

0

26

Honda 95701-06028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X28) (Honda Code 2105849).

$2.49

$

In Stock, Qty 7

0

27

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606.

$2.49

$

In Stock, only 1 left!

0

28

Honda 90634-ZL8-H00

CAP, SEALING

$5.99

$

Usually ships in 3-6 days

0

29

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10) (Honda Code 0250985).

$2.49

$

In Stock, Qty 20+

0
