GX620 QAP2 (GCAD) - Honda Engine, Made in Japan (SN: GCAD-1000001 - GCAD-1999999) FUEL TANK (2) Parts Diagram

Engine, Made in Japan

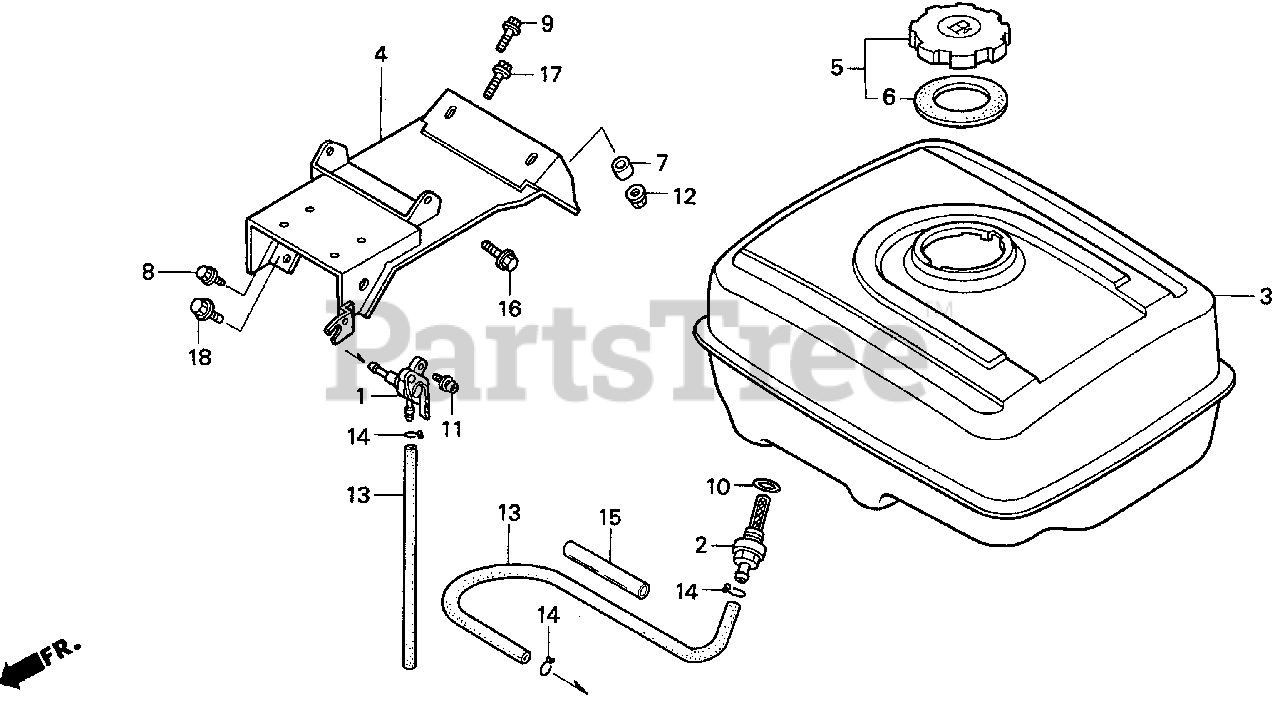

FUEL TANK (2) Parts Diagram

  • Title

1

Honda 16950-YA0-802

PETCOCK ASSY.

Note: (Honda Code 4689741).

$39.99

$

Usually ships in 3-6 days

0

2

Honda 16955-ZE1-000

JOINT, FUEL TANK
(Superseded to 16955-ZE1-010)

Note: (Honda Code 1427459).

$8.99

$

In Stock, Qty 20+

0

3

Honda 17510-ZE3-010ZB

TANK, FUEL *NH1* (BLACK)

Note: (Honda Code 4475372).

$

$

Currently unavailable

3

Honda 17510-ZE3-010ZC

TANK, FUEL *R8* (BRIGHT RED)

Note: (Honda Code 4024857).

$

$

Currently unavailable

4

Honda 17560-ZJ0-U70

STAY, FUEL TANK

Note: (Honda Code 4689758).

$303.99

$

Usually ships in 3-6 days

0

5

Honda 17620-ZH7-023

CAP, FUEL FILLER
(Superseded to 17620-Z0T-305)

Note: (Honda Code 5344817).

$

$

Not available

6

Honda 17631-ZH7-003

GASKET, FUEL FILLER CAP
(Superseded to 17631-329-003)

Note: (Honda Code 4608725).

$

$

Not available

7

Honda 50203-MS8-000

COLLAR, FR. ENGINE HANGER (A)

Note: (Honda Code 3794237).

$5.49

$

Usually ships in 3-6 days

0

8

Honda 90018-ZE1-000

BOLT, FLANGE (6X23)

Note: (Honda Code 1725050).

$2.49

$

In Stock, only 2 left!

0

9

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200)

Note: (Honda Code 0671552).

$2.99

$

In Stock, only 2 left!

0

10

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI)

Note: (Honda Code 0949883).

$3.99

$

In Stock, Qty 20+

0

11

Honda 93891-05014-00

SCREW-WASHER (5X14)

Note: (Honda Code 1938364).

$1.49

$

Usually ships in 3-6 days

0

12

Honda 94050-08000

NUT, FLANGE (8MM)

Note: (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

13

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X260)

Note: (Honda Code 5137104).

$54.99

$

In Stock, only 4 left!

0

14

Honda 95002-02080

CLIP, TUBE (B8)

Note: (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

15

Honda 95003-25003-10M

BULK HOSE, VINYL (9X11X3000) (9X11X180)

Note: (Honda Code 5428453).

$21.99

$

Usually ships in 3-6 days

0

16

Honda 95701-08016-00

BOLT, FLANGE (8X16)

Note: (Honda Code 2298396).

$2.49

$

In Stock, Qty 20+

0

17

Honda 95701-08025-00

BOLT, FLANGE (8X25)

Note: (Honda Code 2545325).

$2.49

$

In Stock, Qty 5

0

18

Honda 95701-08030-00

BOLT, FLANGE (8X30)

Note: (Honda Code 2552560).

$1.49

$

Usually ships in 3-6 days

0
