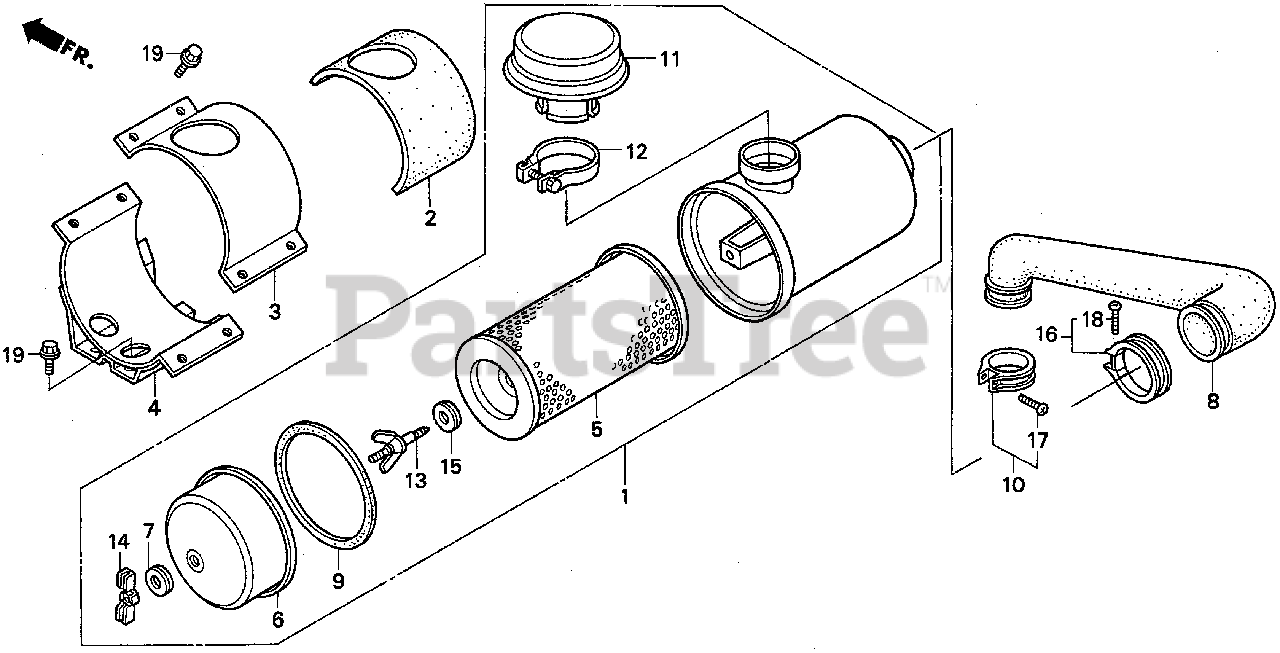

GX620 QAP2 (GCAD) - Honda Engine, Made in Japan (SN: GCAD-1000001 - GCAD-1999999) AIR CLEANER (2) Parts Diagram

Engine, Made in Japan

AIR CLEANER (2) Parts Diagram

  • Title
1

Honda 17200-ZJ0-U70

AIR CLEANER ASSY.

Note: (Honda Code 4689675).

$

$

Not available

2

Honda 17207-ZJ0-U70

RUBBER, AIR CLEANER HOLDER (UPPER)

Note: (Honda Code 4689683).

$

$

Not available

3

Honda 17208-ZJ0-U70

HOLDER, AIR CLEANER (UPPER)

Note: (Honda Code 4689691).

$40.99

$

Usually ships in 3-6 days

0

4

Honda 17209-ZJ0-U70

HOLDER, AIR CLEANER (LOWER)

Note: (Honda Code 4689709).

$80.99

$

Usually ships in 3-6 days

0

5

Honda 17210-759-013

ELEMENT, AIR CLEANER

Note: (Honda Code 3797636).

$39.99

$

In Stock, only 1 left!

0

6

Honda 17230-759-003

COVER, AIR CLEANER

Note: (Honda Code 3784253).

$59.99

$

Usually ships in 3-6 days

0

7

Honda 17232-891-000

GROMMET, AIR CLEANER

Note: (Honda Code 0999763).

$5.99

$

In Stock, Qty 16

0

8

Honda 17251-ZJ0-U70

TUBE, AIR CLEANER CONNECTING

Note: (Honda Code 4689717).

$

$

Not available

9

Honda 17253-759-003

SEAL, AIR CLEANER

Note: (Honda Code 3784287).

$17.99

$

Usually ships in 3-6 days

0

10

Honda 17255-758-000

BAND, AIR CLEANER CONNECTING TUBE

Note: (Honda Code 3386034).

$7.49

$

Usually ships in 3-6 days

0

11

Honda 17320-ZG5-801

CAP, IN.

Note: (Honda Code 4689725).

$67.99

$

Usually ships in 3-6 days

0

12

Honda 17330-ZG5-801

CLAMP ASSY.

Note: (Honda Code 4689733).

$7.49

$

Usually ships in 3-6 days

0

13

Honda 90113-759-003

BOLT, AIR CLEANER

Note: (Honda Code 3790870).

$14.99

$

Usually ships in 3-6 days

0

14

Honda 90203-ZA0-800

WINGNUT (6MM)

Note: (Honda Code 1742238).

$4.49

$

In Stock, only 1 left!

0

15

Honda 90502-759-003

WASHER, AIR CLEANER

Note: (Honda Code 3792066).

$6.99

$

Usually ships in 3-6 days

0

16

Honda 95018-50250

BAND, AIR CLEANER CONNECTING TUBE (50)

Note: (Honda Code 5754403).

$10.99

$

Usually ships in 3-6 days

0

17

Honda 93500-04020-0A

SCREW, PAN (4X20)

Note: (Honda Code 0169474).

$1.49

$

In Stock, Qty 10

0

18

Honda 93500-04025-0G

SCREW, PAN (4X25)

Note: (Honda Code 0912246).

$0.99

$

Usually ships in 3-6 days

0

19

Honda 95701-06012-00

BOLT, FLANGE (6X12)

Note: (Honda Code 2105799).

$2.49

$

In Stock, Qty 20+

0
