GX620 K1 VXC/A (GDABM) - Honda Engine, Made in Japan (SN: GDABM-1010001 - GDABM-9999999) CONTROL (6) Parts Diagram

Engine, Made in Japan

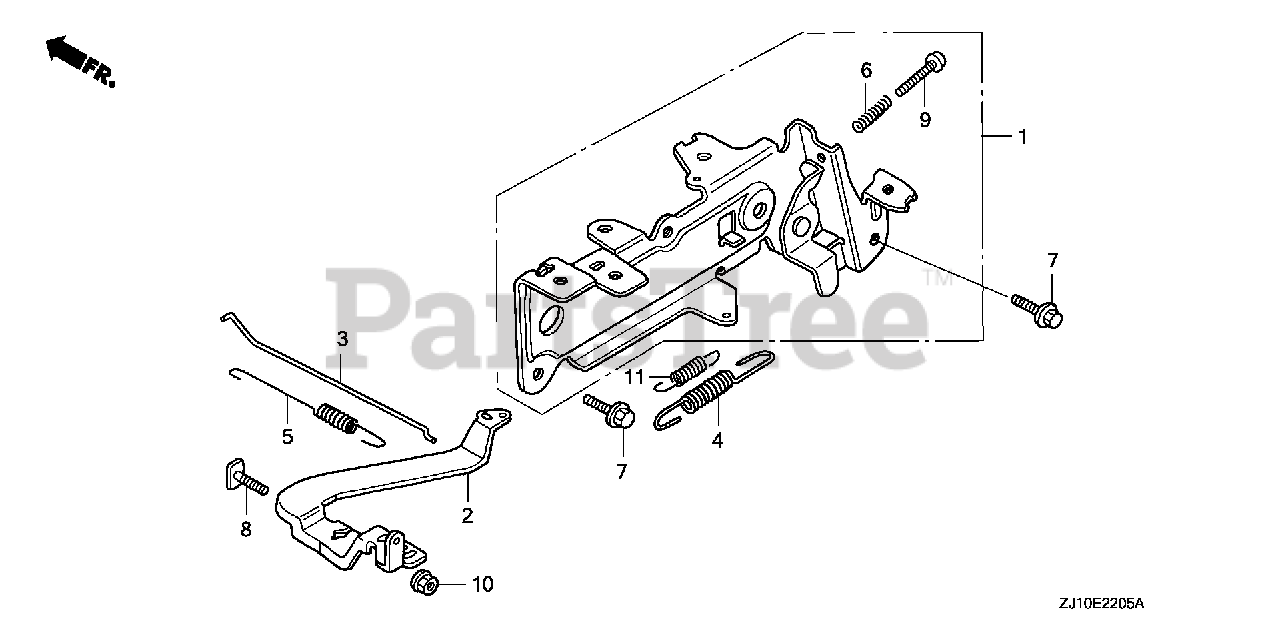

CONTROL (6) Parts Diagram

  • Title
1

Honda 16500-ZJ1-930

CONTROL ASSY. (GENE)

$80.99

$

Usually ships in 3-6 days

0

2

Honda 16551-ZJ1-840

ARM, GOVERNOR

$15.99

$

Usually ships in 3-6 days

0

3

Honda 16555-ZN2-000

ROD, GOVERNOR

$4.99

$

Usually ships in 3-6 days

0

4

Honda 16561-ZN1-822

SPRING, GOVERNOR

Note: Use up to Engine SN 1010253.

$

$

Not available

4

Honda 16561-ZN1-830

SPRING, GOVERNOR

Note: Use from Engine SN 1010254.

$4.49

$

Usually ships in 3-6 days

0

5

Honda 16562-ZN2-010

SPRING, THROTTLE RETURN

$3.99

$

In Stock, only 1 left!

0

6

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$4.99

$

In Stock, Qty 7

0

7

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

In Stock, only 4 left!

0

8

Honda 90015-ZE3-790

BOLT, GOVERNOR ARM

$2.99

$

Usually ships in 3-6 days

0

9

Honda 93500-05035-0A

SCREW, PAN (5X35)

$1.49

$

In Stock, only 3 left!

0

10

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

11

Honda 16534-ZN1-010

SEE PART DETAILS - PRI; SPRING, STARTER

Note: Use from Engine SN 1010254.

$2.99

$

In Stock, only 1 left!

0
