GX620 K1 VDB2 (GCAD) - Honda Engine, Made in Japan (SN: GCAD-2000001 - GCAD-2159999) CONTROL (3) Parts Diagram

Engine, Made in Japan

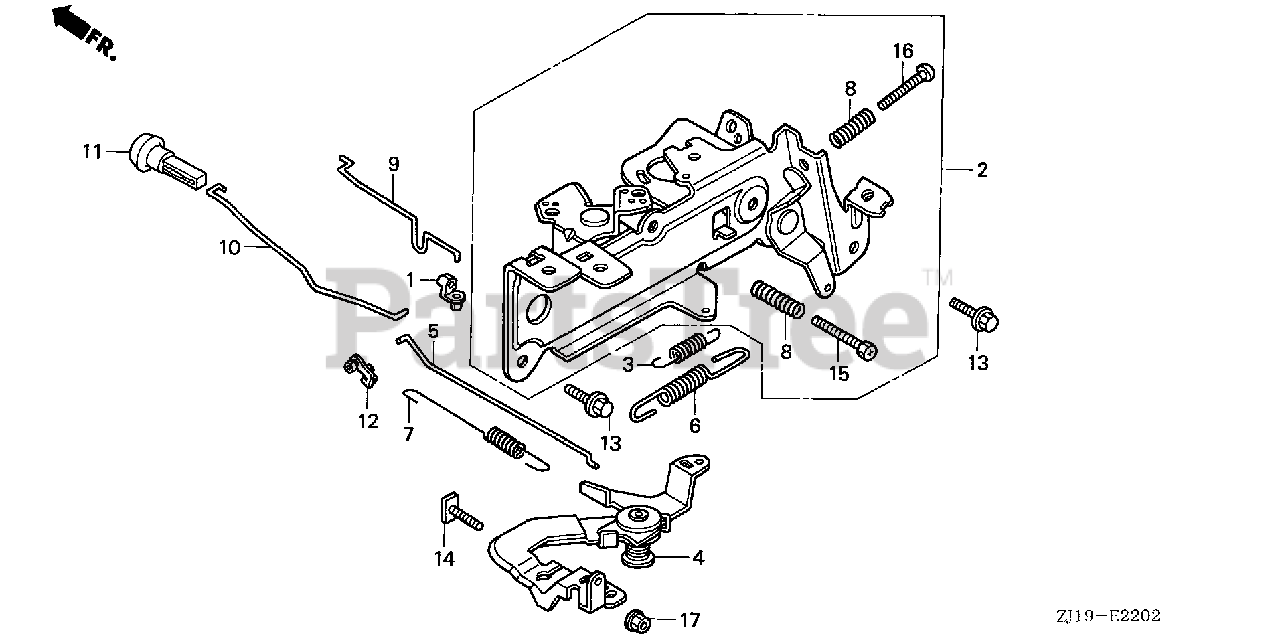

CONTROL (3) Parts Diagram

  • Title

1

Honda 16263-883-W10

JOINT, ROD

Note: (Honda Code 6224315).

$1.49

$

Usually ships in 3-6 days

0

2

Honda 16500-ZJ1-890

CONTROL ASSY. (AUTO THROTTLE)

Note: (Honda Code 6674303).

$76.99

$

Usually ships in 3-6 days

0

3

Honda 16534-ZJ1-840

SPRING, STARTER

Note: (Honda Code 6224398).

$2.49

$

In Stock, only 2 left!

0

4

Honda 16550-ZJ1-841

ARM COMP., GOVERNOR
(Superseded to 16550-ZJ1-842)

Note: (Honda Code 6674311).

$38.99

$

Usually ships in 3-6 days

0

5

Honda 16555-ZJ1-840

ROD, GOVERNOR

Note: (Honda Code 6224422).

$4.99

$

In Stock, only 2 left!

0

6

Honda 16561-ZJ1-850

SPRING, GOVERNOR (MANUAL)

Note: (Honda Code 6224430).

$4.99

$

In Stock, only 1 left!

0

7

Honda 16562-ZJ1-840

SPRING, THROTTLE RETURN

Note: (Honda Code 6224463).

$3.99

$

In Stock, only 2 left!

0

8

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

Note: (Honda Code 0636431).

$4.99

$

In Stock, Qty 7

0

9

Honda 16611-ZJ1-840

ROD, CHOKE CONTROL

Note: (Honda Code 6224497).

$7.49

$

Usually ships in 3-6 days

0

10

Honda 16628-ZJ1-850

ROD, CHOKE KNOB

Note: (Honda Code 6224505).

$7.99

$

Usually ships in 3-6 days

0

11

Honda 17951-921-030

KNOB, CHOKE

Note: (Honda Code 0286203).

$14.99

$

Usually ships in 3-6 days

0

12

Honda 17957-ZV4-000

BUSH, LINKAGE

Note: (Honda Code 2795730).

$2.49

$

In Stock, Qty 6

0

13

Honda 90014-952-000

BOLT, FLANGE (6X14)

Note: (Honda Code 0803619).

$2.99

$

In Stock, only 3 left!

0

14

Honda 90015-ZE3-790

BOLT, GOVERNOR ARM

Note: (Honda Code 2560852).

$2.99

$

Usually ships in 3-6 days

0

15

Honda 92301-05025-0A

BOLT, SLOT (5X25)

Note: (Honda Code 6227193).

$1.49

$

Usually ships in 3-6 days

0

16

Honda 93500-05035-0A

SCREW, PAN (5X35)

Note: (Honda Code 0331405).

$1.49

$

In Stock, only 3 left!

0

17

Honda 94050-06000

NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
