GX620 K1 QXW2 (GCAD) - Honda Engine, Made in Japan (SN: GCAD-2000001 - GCAD-2159999) PISTON + CONNECTING ROD Parts Diagram

Engine, Made in Japan

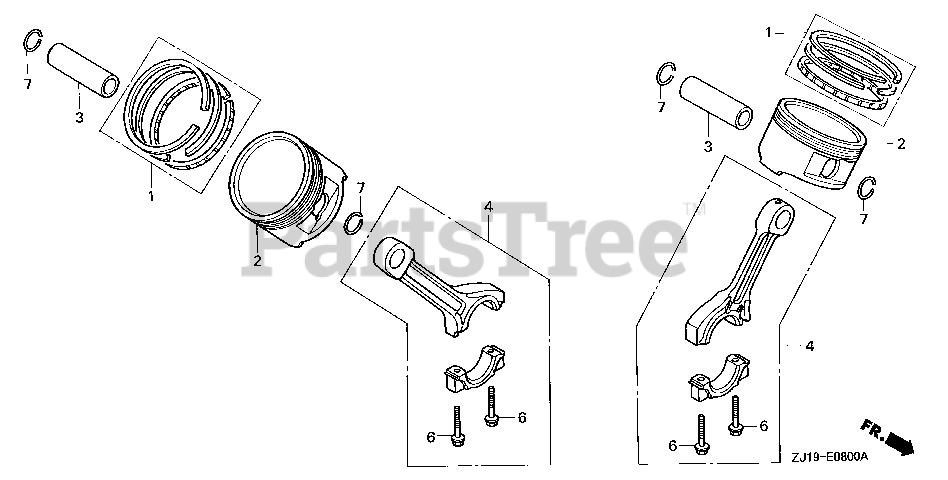

PISTON + CONNECTING ROD Parts Diagram

  • Title

1

Honda 13010-ZJ1-841

RING SET, PISTON (STD)

Note: (Honda Code 6223911).

$51.99

$

In Stock, only 2 left!

0

1

Honda 13011-ZJ1-841

RING SET, PISTON (OS 0.25)

Note: (Optional). (Honda Code 6223929).

$

$

Not available

1

Honda 13012-ZJ1-841

RING SET, PISTON (OS 0.50)

Note: (Optional). (Honda Code 6223937).

$56.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZJ1-841

RING SET, PISTON (0.75)

Note: (Optional). (Honda Code 6223945).

$56.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZJ1-840

PISTON (STD)

Note: (Honda Code 6223952).

$94.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZJ1-840

PISTON (OS 0.25)

Note: (Optional). (Honda Code 6223960).

$99.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZJ1-840

PISTON (OS 0.50)

Note: (Optional). (Honda Code 6223978).

$99.99

$

Usually ships in 3-6 days

0

2

Honda 13104-ZJ1-840

PISTON (0.75)

Note: (Optional). (Honda Code 6223986).

$99.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZJ1-840

PIN, PISTON

Note: (Honda Code 6223994).

$16.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZJ1-841

ROD ASSY., CONNECTING

Note: (Honda Code 6224000).

$137.99

$

Usually ships in 3-6 days

0

6

Honda 90001-ZN1-000

BOLT, CONNECTING ROD (6X37)

Note: (Honda Code 6226963).

$7.99

$

Usually ships in 3-6 days

0

7

Honda 94601-18000

CLIP, PISTON PIN (18MM)

Note: (Honda Code 0317305).

$1.49

$

Usually ships in 3-6 days

0
