GX620 K1 QXW2 (GCAD) - Honda Engine, Made in Japan (SN: GCAD-2000001 - GCAD-2159999) AIR CLEANER (3) Parts Diagram

Engine, Made in Japan

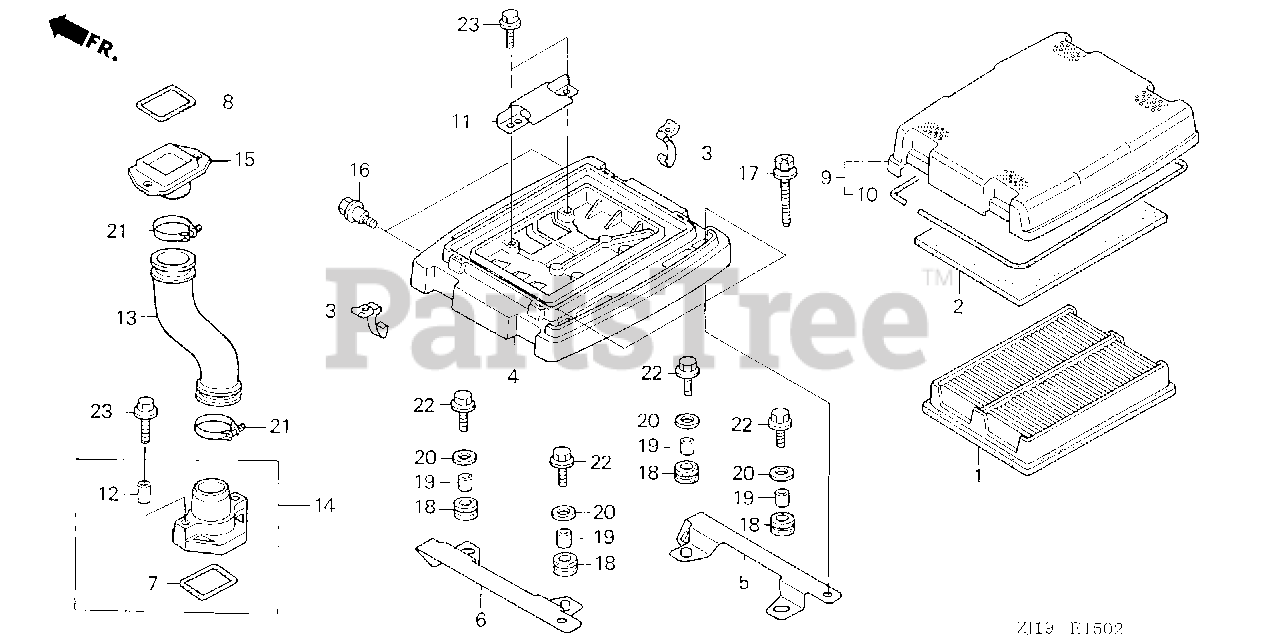

AIR CLEANER (3) Parts Diagram

  • Title

1

Honda 17210-ZJ1-841

ELEMENT COMP., AIR CLEANER
(Superseded to 17210-ZJ1-842)

Note: (Honda Code 6224653).

$62.99

$

In Stock, only 3 left!

0

2

Honda 17218-ZJ1-840

FILTER (OUTER)

Note: (Honda Code 6224661).

$7.49

$

In Stock, Qty 7

0

3

Honda 17219-ZJ1-840

CLIP, AIR CLEANER

Note: (Honda Code 6224679).

$4.49

$

In Stock, only 3 left!

0

4

Honda 17220-ZN1-800

HOUSING COMP., AIR CLEANER

Note: (Honda Code 6685655).

$97.99

$

Usually ships in 3-6 days

0

5

Honda 17222-ZJ1-840

STAY, R. AIR CLEANER HOUSING

Note: (Honda Code 6685663).

$44.99

$

Usually ships in 3-6 days

0

6

Honda 17224-ZJ1-840

STAY, L. AIR CLEANER HOUSING

Note: (Honda Code 6685671).

$44.99

$

Usually ships in 3-6 days

0

7

Honda 17229-ZJ1-840

SEAL, AIR CLEANER HOUSING

Note: (Honda Code 6224703).

$7.99

$

Usually ships in 3-6 days

0

8

Honda 17229-ZN1-000

SEAL, AIR CLEANER HOUSING

Note: (Honda Code 6248033).

$8.49

$

In Stock, only 1 left!

0

9

Honda 17230-ZJ1-840

COVER ASSY., AIR CLEANER
(Superseded to 17230-ZJ1-841)

Note: (Honda Code 6224711).

$60.99

$

In Stock, only 1 left!

0

10

Honda 17233-ZJ1-840

SEAL, AIR CLEANER COVER

Note: (Honda Code 6224737).

$3.49

$

In Stock, only 1 left!

0

11

Honda 17234-ZJ1-840

PLATE, AIR CLEANER SETTING

Note: (Honda Code 6224745).

$7.99

$

Usually ships in 3-6 days

0

12

Honda 17238-ZJ4-830

COLLAR A, AIR CLEANER

Note: (Honda Code 6224752).

$2.99

$

In Stock, only 3 left!

0

13

Honda 17251-ZJ1-840

TUBE, AIR CLEANER CONNECTING

Note: (Honda Code 6685689).

$

$

Currently unavailable

14

Honda 17415-ZJ1-840

JOINT ASSY., CONNECTING TUBE (B)

Note: (Honda Code 6624167).

$23.99

$

Usually ships in 3-6 days

0

15

Honda 17416-ZN1-000

JOINT A, CONNECTING TUBE

Note: (Honda Code 6685697).

$27.99

$

Usually ships in 3-6 days

0

16

Honda 90002-ZJ1-840

BOLT, FLANGE (6MM)

Note: (Honda Code 6261648).

$4.49

$

Usually ships in 3-6 days

0

17

Honda 90133-SG0-003

BOLT-WASHER (5X30)

Note: (Honda Code 2948776).

$11.99

$

Usually ships in 3-6 days

0

18

Honda 90852-898-000

RUBBER, CONTROL BOX

Note: (Honda Code 1106814).

$5.49

$

In Stock, only 2 left!

0

19

Honda 91552-898-000

COLLAR, CONTROL BOX

Note: (Honda Code 1106855).

$5.49

$

Usually ships in 3-6 days

0

20

Honda 94103-06800

WASHER, PLAIN (6MM)

Note: (Honda Code 0629824).

$1.49

$

In Stock, Qty 10

0

21

Honda 95018-58250

BAND, AIR CLEANER CONNECTING TUBE (58)

Note: (Honda Code 5722160).

$8.49

$

Usually ships in 3-6 days

0

22

Honda 95701-06020-00

BOLT, FLANGE (6X20)

Note: (Honda Code 2105815).

$2.49

$

In Stock, only 1 left!

0

23

Honda 95701-06028-00

BOLT, FLANGE (6X28)

Note: (Honda Code 2105849).

$2.49

$

In Stock, only 4 left!

0
