GX610 VXD (GCAC) - Honda Engine, Made in Japan (SN: GCAC-1000001 - GCAC-1999999) CYLINDER BARREL Parts Diagram

Engine, Made in Japan

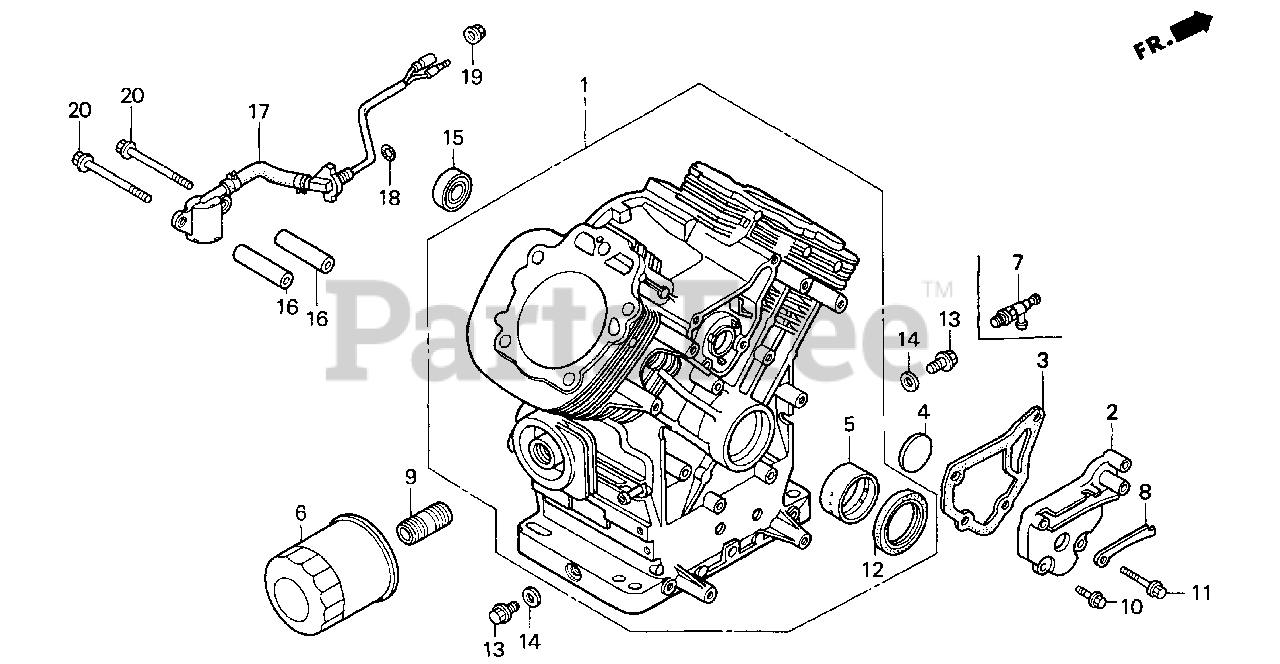

CYLINDER BARREL Parts Diagram

  • Title

1

Honda 12000-ZJ1-810

CYLINDER ASSY.

Note: (Honda Code 4589610).

$

$

Not available

2

Honda 12356-ZJ1-000

COVER, BREATHER

Note: (Honda Code 4208955).

$33.99

$

Usually ships in 3-6 days

0

3

Honda 12358-ZJ1-000

GASKET, BREATHER COVER

Note: (Honda Code 4265278).

$12.99

$

In Stock, only 1 left!

0

4

Honda 12372-ZE2-300

VALVE, BREATHER

Note: (Honda Code 2061620).

$3.99

$

In Stock, Qty 5

0

5

Honda 13321-ZJ1-000

BEARING A, MAIN (TO SELECT CORRECT BEARING, SEE THE SERVICE MANUAL.)

Note: (Optional). (Honda Code 4545836).

$

$

Not available

5

Honda 13322-ZJ1-000

BEARING B, MAIN (TO SELECT CORRECT BEARING, SEE THE SERVICE MANUAL.)

Note: (Optional). (Honda Code 4545844).

$

$

Not available

5

Honda 13323-ZJ1-000

BEARING C, MAIN (TO SELECT CORRECT BEARING, SEE THE SERVICE MANUAL.)

Note: (Optional). (Honda Code 4545851).

$

$

Not available

6

Honda 15400-P0H-305PE

FILTER, OIL (SOLD INDIVIDUALLY)

Note: (Honda Code 6424329).

$

$

Not available

6

Honda 15400-ZJ1-004

FILTER, OIL (SOLD IN MULTIPLES OF 30)
(Superseded to 15400-PLM-A02PE)

Note: (Honda Code 6836290).

$14.99

$

In Stock, Qty 14

0

6

Honda 15410-ZJ4-999AH

FILTER, OIL (SOLD INDIVIDUALLY)
(Superseded to 15400-PLM-A01PE)

Note: (Honda Code 5159298).

$

$

Not available

7

Honda 15558-ZJ1-010AH

VALVE, DRAIN (14X1.5)

Note: (Optional). (Honda Code 4506622).

$29.99

$

Usually ships in 3-6 days

0

8

Honda 31511-ZJ1-000

CLAMP, WIRE

Note: (Honda Code 4210217).

$4.49

$

Usually ships in 3-6 days

0

9

Honda 90018-PN3-000

HOLDER, OIL FILTER

Note: (Honda Code 3509528).

$9.99

$

In Stock, only 1 left!

0

10

Honda 90029-888-000

BOLT, FLANGE (6X16)

Note: (Honda Code 0747733).

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90031-ZE1-000

BOLT, FLANGE (6X32)

Note: (Honda Code 2092971).

$3.99

$

In Stock, only 2 left!

0

12

Honda 91201-ZJ1-003

OIL SEAL (38X58X11)

Note: (Honda Code 4210480).

$13.99

$

In Stock, only 2 left!

0

13

Honda 92800-14000

BOLT, DRAIN PLUG (14MM)

Note: (Honda Code 0171777).

$5.99

$

Usually ships in 3-6 days

0

14

Honda 94109-14000

WASHER, DRAIN PLUG (14MM)

Note: (Honda Code 0171876).

$0.99

$

In Stock, Qty 20+

0

15

Honda 96140-60030-10

BEARING, RADIAL BALL (6003)

Note: (Honda Code 4210571).

$21.99

$

Usually ships in 3-6 days

0

16

Honda 25523-VD6-010

COLLAR, FILTER SETTING

Note: (Honda Code 3340197).

$9.49

$

Usually ships in 3-6 days

0

17

Honda 35480-ZJ1-812

SWITCH ASSY., OIL LEVEL

Note: (Honda Code 4224788).

$

$

Not available

18

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI)

Note: (Honda Code 0949883).

$3.99

$

In Stock, Qty 20+

0

19

Honda 94050-10000

NUT, FLANGE (10MM)

Note: (Honda Code 0483867).

$1.99

$

In Stock, Qty 5

0

20

Honda 95701-06075-09

BOLT, FLANGE (6X75)

Note: (Honda Code 4210548).

$2.49

$

Usually ships in 3-6 days

0
