GX610 QYF (GCAC) - Honda Engine, Made in Japan (SN: GCAC-1000001 - GCAC-1999999) CAMSHAFT Parts Diagram

Engine, Made in Japan

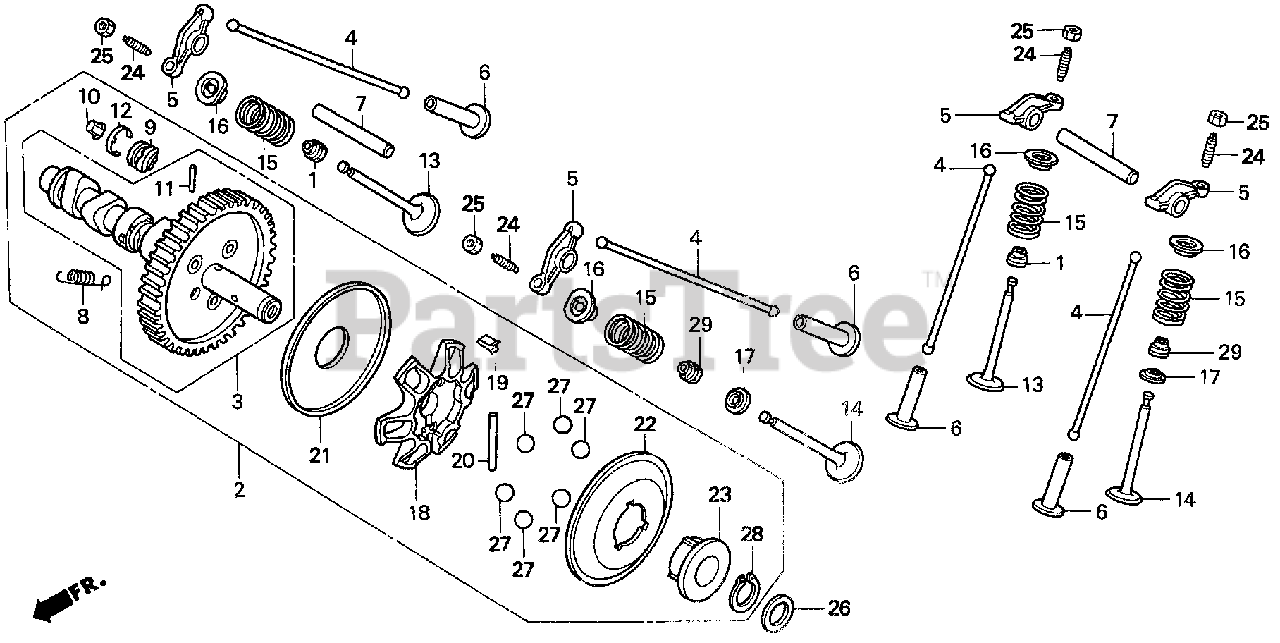

CAMSHAFT Parts Diagram

  • Title

1

Honda 12209-ZE8-003

SEAL, VALVE STEM

Note: (Honda Code 2089571).

$8.49

$

In Stock, only 1 left!

0

2

Honda 14100-ZJ1-801

CAMSHAFT ASSY.

Note: (Honda Code 4209110).

$

$

Currently unavailable

3

Honda 14110-ZJ1-801

CAMSHAFT
(Superseded to 14120-ZJ1-516)

Note: (Honda Code 4209128).

$

$

Not available

4

Honda 14410-ZJ1-000

ROD, PUSH

Note: (Honda Code 4209136).

$

$

Not available

5

Honda 14431-ZJ1-000

ARM, VALVE ROCKER

Note: (Honda Code 4209144).

$

$

Not available

6

Honda 14441-ZE2-000

LIFTER, VALVE

Note: (Honda Code 2025609).

$16.99

$

In Stock, only 2 left!

0

7

Honda 14461-ZJ1-000

SHAFT, ROCKER ARM

Note: (Honda Code 4209151).

$

$

Not available

8

Honda 14568-ZJ1-800

SPRING, WEIGHT RETURN

Note: (Honda Code 4209169).

$2.99

$

Usually ships in 3-6 days

0

9

Honda 14569-ZJ1-801

HOLDER, DECOMPRESSION PIN

Note: (Honda Code 4209177).

$20.99

$

Usually ships in 3-6 days

0

10

Honda 14576-ZJ1-801

PIN A, DECOMPRESSION

Note: (Honda Code 4543880).

$7.99

$

Usually ships in 3-6 days

0

10

Honda 14577-ZJ1-801

PIN B, DECOMPRESSION

Note: (Honda Code 4543898).

$

$

Not available

10

Honda 14578-ZJ1-800

PIN C, DECOMPRESSION (8.05)

Note: (Honda Code 4209201).

$

$

Currently unavailable

10

Honda 14578-ZJ1-801

PIN C, DECOMPRESSION

Note: (Honda Code 4543906).

$

$

Not available

10

Honda 14579-ZJ1-800

PIN D, DECOMPRESSION (8.15)

Note: (Honda Code 4209219).

$

$

Currently unavailable

10

Honda 14579-ZJ1-801

PIN D, DECOMPRESSION

Note: (Honda Code 4543914).

$

$

Not available

10

Honda 14580-ZJ1-800

PIN E, DECOMPRESSION (8.25)

Note: (Honda Code 4209227).

$

$

Currently unavailable

10

Honda 14580-ZJ1-801

PIN E, DECOMPRESSION

Note: (Honda Code 4543922).

$7.49

$

Usually ships in 3-6 days

0

11

Honda 14581-ZJ1-801

ROD, DECOMPRESSION

Note: (Honda Code 4209235).

$

$

Not available

12

Honda 14586-ZJ1-800

SPRING, DECOMPRESSION PIN HOLDER

Note: (Honda Code 4209243).

$5.99

$

Usually ships in 3-6 days

0

13

Honda 14711-ZJ1-000

VALVE, IN.

Note: (Honda Code 4209250).

$

$

Not available

14

Honda 14721-ZJ1-000

VALVE, EX.

Note: (Honda Code 4209268).

$

$

Not available

15

Honda 14751-ZE2-003

SPRING, VALVE

Note: (Honda Code 2025633).

$5.49

$

In Stock, only 2 left!

0

16

Honda 14771-ZE2-000

RETAINER, IN. VALVE SPRING
(Superseded to 14771-Z8S-000)

Note: (Honda Code 2025641).

$2.49

$

In Stock, only 2 left!

0

17

Honda 14775-ZE2-010

SEAT, VALVE SPRING

Note: (Honda Code 2157485).

$3.99

$

In Stock, only 2 left!

0

18

Honda 16512-ZJ1-000

HOLDER, GOVERNOR WEIGHT

Note: (Honda Code 4209458).

$

$

Not available

19

Honda 16522-ZJ1-000

PLATE, GOVERNER WEIGHT HOLDER

Note: (Honda Code 4212411).

$5.49

$

Usually ships in 3-6 days

0

20

Honda 16523-ZJ1-000

PIN, GOVERNOR WEIGHT HOLDER

Note: (Honda Code 4209466).

$

$

Not available

21

Honda 16524-ZJ1-000

PLATE, GOVERNOR (LOWER)

Note: (Honda Code 4209474).

$21.99

$

Usually ships in 3-6 days

0

22

Honda 16529-ZJ1-000

PLATE, GOVERNOR SLIDER

Note: (Honda Code 4209482).

$23.99

$

Usually ships in 3-6 days

0

23

Honda 16531-ZJ1-003

SLIDER, GOVERNOR

Note: (Honda Code 4209490).

$

$

Not available

24

Honda 90012-415-000

SCREW, TAPPET ADJ.

Note: (Honda Code 0670570).

$7.99

$

Usually ships in 3-6 days

0

25

Honda 90206-250-000

NUT, TAPPET ADJ.

Note: (Honda Code 0040139).

$4.99

$

Usually ships in 3-6 days

0

26

Honda 90446-357-000

WASHER, THRUST (17.2MM)

Note: (Honda Code 0322180).

$4.99

$

In Stock, only 1 left!

0

27

Honda 90901-ZJ1-003

BALL, STEEL (18)

Note: (Honda Code 4210472).

$

$

Not available

28

Honda 94510-17000

CIRCLIP (OUTER) (17MM)

Note: (Honda Code 0169532).

$1.99

$

Usually ships in 3-6 days

0

29

Honda 12209-ZE8-003

SEAL, VALVE STEM

Note: Use from Engine SN 1040480. (Honda Code 2089571).

$8.49

$

In Stock, only 1 left!

0
