GX610 K1 VZA2 (GCAC) - Honda Engine, Made in Japan (SN: GCAC-2000001 - GCAC-2059999) CRANKCASE COVER Parts Diagram

Engine, Made in Japan

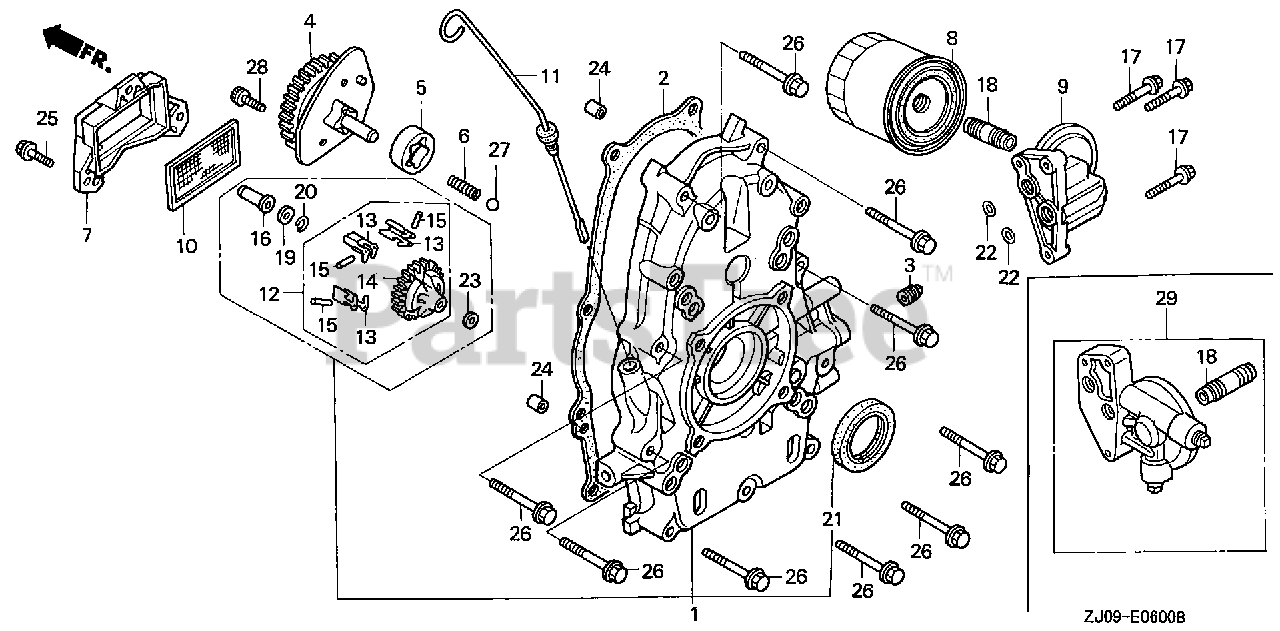

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-ZJ1-840

SEE PART DETAILS - SUP; COVER ASSY., CRANKCASE (Q-TYPE)
(Superseded to 11300-ZJ1-843)

Note: (Honda Code 6223770).

$566.99

$

In Stock, only 1 left!

0

2

Honda 11381-ZJ1-840

GASKET, CASE COVER

Note: (Honda Code 6223788).

$24.99

$

In Stock, only 1 left!

0

3

Honda 12105-ZA0-701

SEE PART DETAILS - PRI; BOLT, SEALING

Note: (Honda Code 2059186).

$9.99

$

Usually ships in 3-6 days

0

4

Honda 15120-ZJ1-000

COVER ASSY., OIL PUMP
(Superseded to 15120-ZJ1-010)

Note: (Honda Code 4209276).

$76.99

$

In Stock, only 1 left!

0

5

Honda 15124-ZJ1-003

ROTOR, OIL PUMP (OUTER)

Note: (Honda Code 4209284).

$27.99

$

Usually ships in 3-6 days

0

6

Honda 15232-ZJ1-000

SPRING, RELIEF VALVE

Note: (Honda Code 4209292).

$3.49

$

In Stock, only 1 left!

0

7

Honda 15348-ZJ1-840

COVER, OIL FILTER

Note: (Honda Code 6224141).

$18.99

$

Usually ships in 3-6 days

0

8

Honda 15400-PR3-014

FILTER, OIL (TOYO ROKI) (SOLD IN MULTIPLES OF 30)

Note: (Honda Code 6224158).

$

$

Currently unavailable

8

Honda 15400-P0H-305PE

SEE PART DETAILS - PRI; FILTER, OIL (SOLD INDIVIDUALLY)

Note: (Honda Code 6424329).

$

$

Not available

8

Honda 15410-ZJ4-999AH

SEE PART DETAILS - SUP; FILTER, OIL (SOLD INDIVIDUALLY)
(Superseded to 15400-PLM-A01PE)

Note: (Honda Code 5159298).

$

$

Not available

10

Honda 15427-ZJ1-000

SCREEN, OIL FILTER

Note: (Honda Code 4209334).

$14.99

$

Usually ships in 3-6 days

0

11

Honda 15655-ZJ1-840

DIPSTICK, OIL

Note: (Honda Code 6224182).

$17.99

$

Usually ships in 3-6 days

0

12

Honda 16510-ZJ1-840

GOVERNOR ASSY.

Note: (Honda Code 6224364).

$30.99

$

Usually ships in 3-6 days

0

13

Honda 16511-ZJ1-840

WEIGHT, GOVERNOR

Note: (Honda Code 6224372).

$6.99

$

Usually ships in 3-6 days

0

14

Honda 16512-ZJ1-840

HOLDER, GOVERNOR WEIGHT

Note: (Honda Code 6224380).

$

$

Not available

15

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

Note: (Honda Code 2025971).

$2.49

$

Usually ships in 3-6 days

0

16

Honda 16531-ZE2-000

SEE PART DETAILS - SUP; SLIDER, GOVERNOR
(Superseded to 16531-Z0A-000)

Note: (Honda Code 2025989).

$3.99

$

In Stock, only 3 left!

0

17

Honda 90014-ZE6-000

BOLT, FLANGE (6X35)

Note: (Honda Code 1688076).

$2.99

$

In Stock, Qty 6

0

18

Honda 90018-PN3-000

HOLDER, OIL FILTER

Note: (Honda Code 3509528).

$9.99

$

In Stock, only 1 left!

0

19

Honda 90473-147-000

WASHER (6X16)

Note: (Honda Code 0465591).

$1.99

$

In Stock, only 1 left!

0

20

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

Note: (Honda Code 2456697).

$1.99

$

In Stock, only 3 left!

0

21

Honda 91202-ZJ1-841

OIL SEAL (38X58X9)

Note: (Honda Code 6227169).

$11.99

$

In Stock, Qty 7

0

22

Honda 91320-MJ6-003

SEE PART DETAILS - PRI; O-RING (11.8X2.4)

Note: (Honda Code 2023935).

$3.99

$

Usually ships in 3-6 days

0

23

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

Note: (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

24

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14)

Note: (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

25

Honda 95701-06020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20)

Note: (Honda Code 2105815).

$2.49

$

In Stock, Qty 6

0

26

Honda 95701-08050-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X50)

Note: (Honda Code 2935740).

$3.49

$

In Stock, Qty 5

0

27

Honda 96211-12000

BALL, STEEL (#12) (3/8)

Note: (Honda Code 1847086).

$1.49

$

Usually ships in 3-6 days

0

28

Honda 96600-06016-00

SEE PART DETAILS - PRI; BOLT, SOCKET (6X16)

Note: (Honda Code 2154698).

$2.49

$

Usually ships in 3-6 days

0

29

Honda 15410-ZJ1-800

BASE, OIL FILTER (A)

Note: (Honda Code 4209318).

$267.99

$

Usually ships in 3-6 days

0
