GX610 K1 VZA1/A (GCAC) - Honda Engine, Made in Japan (SN: GCAC-2060001 - GCAC-9999999) MUFFLER (3) Parts Diagram

Engine, Made in Japan

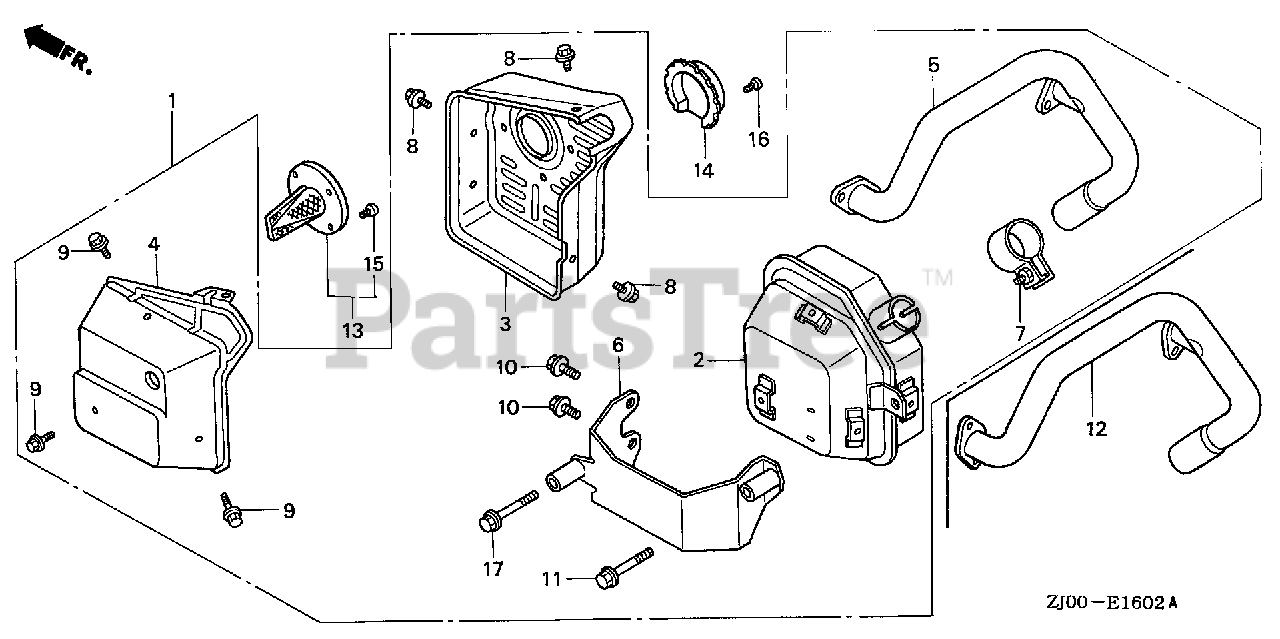

MUFFLER (3) Parts Diagram

  • Title

2

Honda 18310-ZJ1-801

MUFFLER COMP. (SIDE-L) (FUTABA) (SILVER MUFFLER)

Note: (Optional).

$996.99

$

Usually ships in 3-6 days

0

3

Honda 18321-ZJ1-841

PROTECTOR, MUFFLER (SIDE-L)

Note: (Optional).

$67.99

$

Usually ships in 3-6 days

0

4

Honda 18325-ZJ1-801

PROTECTOR, RR. MUFFLER (SIDE-L)

Note: (Optional).

$61.99

$

Usually ships in 3-6 days

0

6

Honda 18338-ZJ1-851

STAY, MUFFLER (SIDE-L)

Note: (Optional).

$99.99

$

Usually ships in 3-6 days

0

7

Honda 18396-ZJ1-003

BAND ASSY. (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

8

Honda 95701-06008-00

BOLT, FLANGE (6X8)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

9

Honda 95701-06008-00

BOLT, FLANGE (6X8)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

10

Honda 95701-08014-00

BOLT, FLANGE (8X14)

Note: (Optional).

$2.49

$

In Stock, Qty 20+

0

11

Honda 95701-06050-00

BOLT, FLANGE (6X50)

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

12

Honda 18330-ZJ1-861

PIPE, EX. (SIDE-L)

Note: (Optional).

$779.99

$

Usually ships in 3-6 days

0

13

Honda 18355-ZJ1-801

ARRESTER, SPARK

Note: (Optional).

$53.99

$

Usually ships in 3-6 days

0

14

Honda 06184-ZJ1-800

DEFLECTOR KIT, EX.

Note: (Optional).

$

$

Not available

15

Honda 90009-ZJ1-801

SCREW (NELSON)

Note: (Optional).

$6.49

$

Usually ships in 3-6 days

0

16

Honda 93903-34110

SCREW, TAPPING (4X8)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

17

Honda 95701-08050-00

BOLT, FLANGE (8X50)

Note: (Optional).

$3.49

$

In Stock, Qty 5

0
