GX610 K1 TXF2 (GCAC) - Honda Engine, Made in Japan (SN: GCAC-2000001 - GCAC-2059999) AIR CLEANER (2) Parts Diagram

Engine, Made in Japan

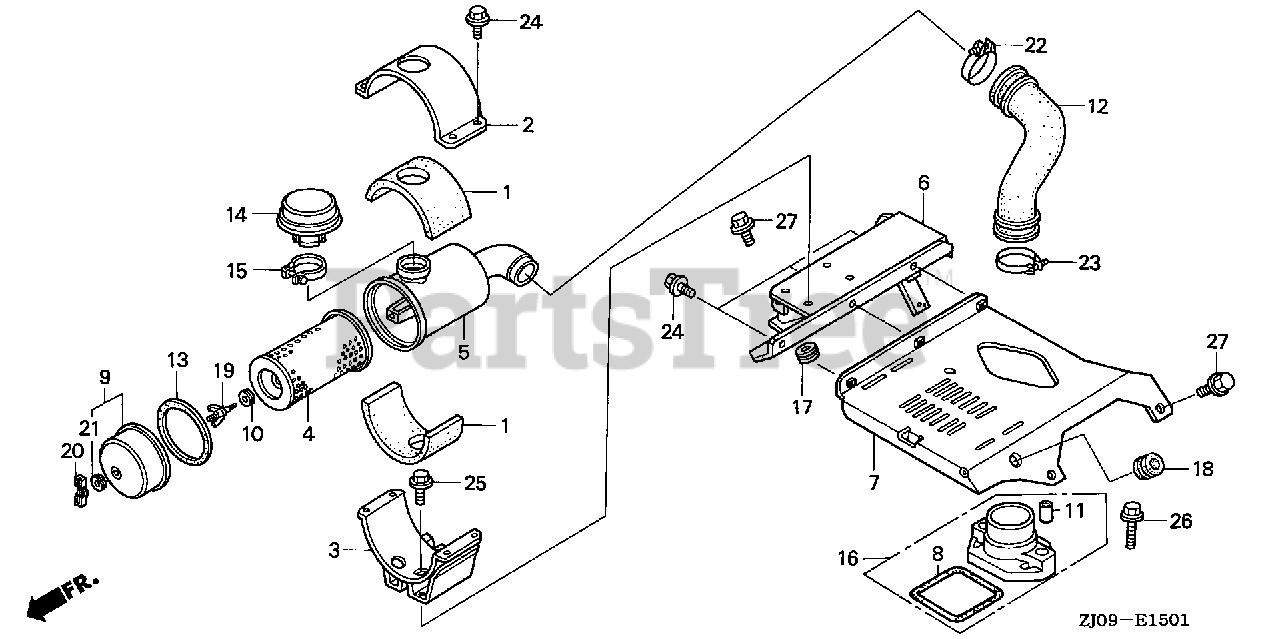

AIR CLEANER (2) Parts Diagram

  • Title

1

Honda 17207-ZJ1-840

RUBBER, AIR CLEANER HOLDER (UPPER)

Note: (Honda Code 6623995).

$16.99

$

Usually ships in 3-6 days

0

2

Honda 17208-ZJ1-840

HOLDER, AIR CLEANER (UPPER)

Note: (Honda Code 6624001).

$35.99

$

Usually ships in 3-6 days

0

3

Honda 17209-ZJ1-840

HOLDER, AIR CLEANER (LOWER)

Note: (Honda Code 6624019).

$77.99

$

Usually ships in 3-6 days

0

4

Honda 17210-759-013

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER

Note: (Honda Code 3797636).

$39.99

$

In Stock, only 1 left!

0

5

Honda 17220-ZJ1-850

HOUSING, AIR CLEANER (SNORKEL)

Note: (Honda Code 6624043).

$110.99

$

Usually ships in 3-6 days

0

6

Honda 17222-ZJ1-850

STAY A, AIR CLEANER (SNORKEL)

Note: (Honda Code 6624050).

$69.99

$

Usually ships in 3-6 days

0

7

Honda 17224-ZJ1-850

STAY B, AIR CLEANER (SNORKEL)

Note: (Honda Code 6624068).

$

$

Currently unavailable

8

Honda 17229-ZJ1-840

SEAL, AIR CLEANER HOUSING

Note: (Honda Code 6224703).

$7.49

$

Usually ships in 3-6 days

0

9

Honda 17230-759-003

COVER, AIR CLEANER

Note: (Honda Code 3784253).

$59.99

$

Usually ships in 3-6 days

0

10

Honda 17232-891-000

GROMMET, AIR CLEANER

Note: (Honda Code 0999763).

$5.99

$

In Stock, Qty 16

0

11

Honda 17238-ZJ4-830

COLLAR A, AIR CLEANER

Note: (Honda Code 6224752).

$2.49

$

In Stock, only 3 left!

0

12

Honda 17251-ZJ1-850

TUBE, AIR CLEANER CONNECTING

Note: (Honda Code 6624134).

$

$

Not available

13

Honda 17253-759-003

SEAL, AIR CLEANER

Note: (Honda Code 3784287).

$17.99

$

Usually ships in 3-6 days

0

14

Honda 17320-ZG5-801

CAP, IN.

Note: (Honda Code 4689725).

$67.99

$

Usually ships in 3-6 days

0

15

Honda 17330-ZG5-801

CLAMP ASSY.

Note: (Honda Code 4689733).

$7.49

$

Usually ships in 3-6 days

0

16

Honda 17415-ZJ1-840

JOINT ASSY., CONNECTING TUBE (B)

Note: (Honda Code 6624167).

$21.99

$

Usually ships in 3-6 days

0

17

Honda 19111-MF5-000

GROMMET, RESERVE TANK

Note: (Honda Code 1400134).

$3.99

$

Usually ships in 3-6 days

0

18

Honda 83551-MB9-000

GROMMET

Note: (Honda Code 1096502).

$3.49

$

Usually ships in 3-6 days

0

19

Honda 90113-759-003

BOLT, AIR CLEANER

Note: (Honda Code 3790870).

$14.99

$

Usually ships in 3-6 days

0

20

Honda 90203-ZA0-800

WINGNUT (6MM)

Note: (Honda Code 1742238).

$4.49

$

In Stock, only 1 left!

0

21

Honda 90502-759-003

WASHER, AIR CLEANER

Note: (Honda Code 3792066).

$6.99

$

Usually ships in 3-6 days

0

22

Honda 95018-50250

SEE PART DETAILS - PRI; BAND, AIR CLEANER CONNECTING TUBE (50)

Note: (Honda Code 5754403).

$10.99

$

Usually ships in 3-6 days

0

23

Honda 95018-58250

BAND, AIR CLEANER CONNECTING TUBE (58)

Note: (Honda Code 5722160).

$7.49

$

Usually ships in 3-6 days

0

24

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: (Honda Code 2105799).

$2.49

$

In Stock, Qty 20+

0

25

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

Note: (Honda Code 2410892).

$2.49

$

In Stock, Qty 20+

0

26

Honda 95701-06028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X28)

Note: (Honda Code 2105849).

$2.49

$

In Stock, Qty 7

0

27

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

Note: (Honda Code 2552552).

$2.49

$

In Stock, only 1 left!

0
