GX610 K1 QAF2 (GCAC) - Honda Engine, Made in Japan (SN: GCAC-2000001 - GCAC-2059999) CYLINDER BARREL Parts Diagram

Engine, Made in Japan

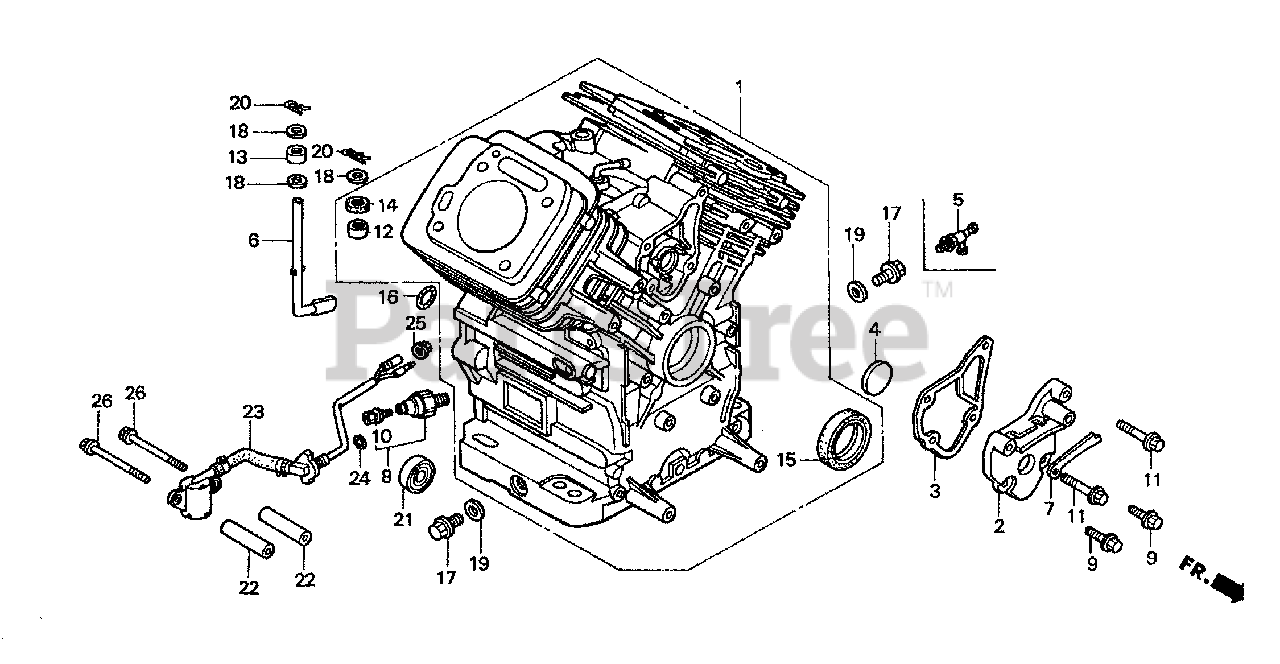

CYLINDER BARREL Parts Diagram

  • Title

1

Honda 12000-ZJ1-840

SEE PART DETAILS - SUP; CYLINDER ASSY.

Note: (Honda Code 6223804).

$

$

Currently unavailable

2

Honda 12356-ZJ1-000

COVER, BREATHER

Note: (Honda Code 4208955).

$31.99

$

Usually ships in 3-6 days

0

3

Honda 12358-ZJ1-000

GASKET, BREATHER COVER

Note: (Honda Code 4265278).

$11.99

$

In Stock, only 1 left!

0

4

Honda 12372-ZE2-300

VALVE, BREATHER

Note: (Honda Code 2061620).

$3.99

$

In Stock, Qty 6

0

5

Honda 15558-ZJ1-010AH

VALVE, DRAIN (14X1.5)

Note: (Optional). (Honda Code 4506622).

$29.99

$

Usually ships in 3-6 days

0

6

Honda 16541-ZJ1-840

SHAFT, GOVERNOR ARM

Note: (Honda Code 6224406).

$44.99

$

Usually ships in 3-6 days

0

7

Honda 31511-ZJ1-000

CLAMP, WIRE

Note: (Honda Code 4210217).

$4.49

$

Usually ships in 3-6 days

0

8

Honda 37240-ZG3-E01

SWITCH, OIL PRESSURE

Note: (Honda Code 3704186).

$44.99

$

Usually ships in 3-6 days

0

9

Honda 90029-888-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

Note: (Honda Code 0747733).

$2.99

$

Usually ships in 3-6 days

0

10

Honda 90002-ZG5-004

SCREW-WASHER (4X8)

Note: (Honda Code 3640406).

$9.99

$

Usually ships in 3-6 days

0

11

Honda 90031-ZE1-000

BOLT, FLANGE (6X32)

Note: (Honda Code 2092971).

$3.99

$

In Stock, only 2 left!

0

12

Honda 91001-ZJ1-841

BEARING, NEEDLE (8X12.7X11.1)

Note: (Honda Code 6227102).

$8.99

$

Usually ships in 3-6 days

0

13

Honda 91002-ZJ1-841

BEARING, NEEDLE (8X12X10)

Note: (Honda Code 6227110).

$11.99

$

Usually ships in 3-6 days

0

14

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

Note: (Honda Code 2461713).

$5.49

$

In Stock, Qty 11

0

15

Honda 91201-ZJ1-841

OIL SEAL (38X58X9)

Note: (Honda Code 6227151).

$11.99

$

In Stock, only 1 left!

0

16

Honda 91302-MB6-830

O-RING (13X3.0)

Note: (Honda Code 2545101).

$2.49

$

In Stock, only 3 left!

0

17

Honda 92800-14000

BOLT, DRAIN PLUG (14MM)

Note: (Honda Code 0171777).

$5.99

$

Usually ships in 3-6 days

0

18

Honda 94102-08800

WASHER, PLAIN (8MM)

Note: (Honda Code 0562215).

$1.49

$

In Stock, Qty 10

0

19

Honda 94109-14000

WASHER, DRAIN PLUG (14MM)

Note: (Honda Code 0171876).

$0.99

$

In Stock, Qty 20+

0

20

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM)

Note: (Honda Code 0115527).

$1.99

$

In Stock, Qty 14

0

21

Honda 96140-60030-10

BEARING, RADIAL BALL (6003)

Note: (Honda Code 4210571).

$19.99

$

Usually ships in 3-6 days

0
