GX610 K1 QAF2 (GCAC) - Honda Engine, Made in Japan (SN: GCAC-2000001 - GCAC-2059999) CONTROL (2) Parts Diagram

Engine, Made in Japan

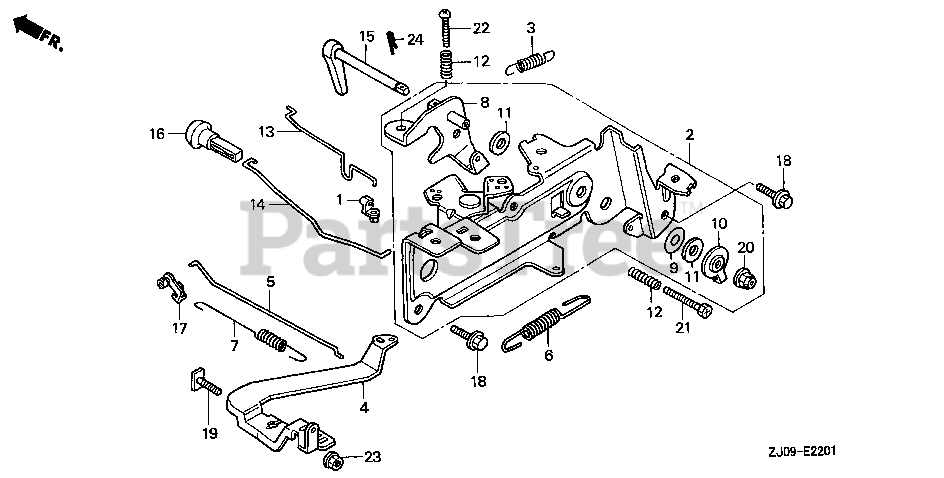

CONTROL (2) Parts Diagram

  • Title

1

Honda 16263-883-W10

JOINT, ROD

Note: (Honda Code 6224315).

$1.49

$

Usually ships in 3-6 days

0

2

Honda 16500-ZJ1-850

CONTROL ASSY.
(Superseded to 16500-ZJ1-851)

Note: (Honda Code 6224349).

$88.99

$

Usually ships in 3-6 days

0

3

Honda 16534-ZJ1-840

SPRING, STARTER

Note: (Honda Code 6224398).

$2.49

$

In Stock, only 2 left!

0

4

Honda 16551-ZJ1-840

ARM, GOVERNOR

Note: (Honda Code 6224414).

$15.99

$

Usually ships in 3-6 days

0

5

Honda 16555-ZJ1-840

ROD, GOVERNOR

Note: (Honda Code 6224422).

$4.99

$

In Stock, only 2 left!

0

6

Honda 16561-ZJ1-850

SPRING, GOVERNOR (MANUAL)

Note: (Honda Code 6224430).

$4.99

$

In Stock, only 1 left!

0

7

Honda 16562-ZJ1-840

SPRING, THROTTLE RETURN

Note: (Honda Code 6224463).

$3.99

$

In Stock, only 2 left!

0

8

Honda 16570-ZJ1-850

ARM, CONTROL
(Superseded to 16570-ZJ1-851)

Note: (Honda Code 6224471).

$

$

Not available

9

Honda 16574-883-300

SPRING, LEVER

Note: (Honda Code 0636381).

$4.49

$

In Stock, only 1 left!

0

10

Honda 16575-ZJ1-850

WASHER, CONTROL ARM

Note: (Honda Code 6224489).

$2.49

$

Usually ships in 3-6 days

0

11

Honda 16576-883-300

SPACER, CONTROL LEVER

Note: (Honda Code 0636407).

$5.49

$

Usually ships in 3-6 days

0

12

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

Note: (Honda Code 0636431).

$4.99

$

In Stock, Qty 7

0

13

Honda 16611-ZJ1-840

ROD, CHOKE CONTROL

Note: (Honda Code 6224497).

$7.49

$

Usually ships in 3-6 days

0

14

Honda 16628-ZJ1-850

ROD, CHOKE KNOB

Note: (Honda Code 6224505).

$7.99

$

Usually ships in 3-6 days

0

15

Honda 17850-ZJ1-850

LEVER ASSY., THROTTLE

Note: (Honda Code 6225098).

$60.99

$

In Stock, only 1 left!

0

16

Honda 17951-921-030

KNOB, CHOKE

Note: (Honda Code 0286203).

$14.99

$

Usually ships in 3-6 days

0

17

Honda 17957-ZV4-000

BUSH, LINKAGE

Note: (Honda Code 2795730).

$2.49

$

In Stock, Qty 6

0

18

Honda 90014-952-000

BOLT, FLANGE (6X14)

Note: (Honda Code 0803619).

$2.99

$

In Stock, only 4 left!

0

19

Honda 90015-ZE3-790

BOLT, GOVERNOR ARM

Note: (Honda Code 2560852).

$2.99

$

Usually ships in 3-6 days

0

20

Honda 90114-SA0-000

NUT, SELF-LOCK (6MM)

Note: (Honda Code 1410182).

$4.49

$

In Stock, Qty 20+

0

21

Honda 92301-05025-0A

BOLT, SLOT (5X25)

Note: (Honda Code 6227193).

$1.49

$

Usually ships in 3-6 days

0

22

Honda 93500-05025-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X25)

Note: (Honda Code 0145565).

$1.49

$

Usually ships in 3-6 days

0

23

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

24

Honda 94251-10000

PIN, LOCK (10MM)

Note: (Honda Code 0159269).

$1.99

$

In Stock, Qty 5

0
