GX440 IU Q9DB (GCAWK) - Honda Engine, Made in Japan (SN: GCAWK-1000001 - GCAWK-9999999) FUEL TANK Parts Diagram

Engine, Made in Japan

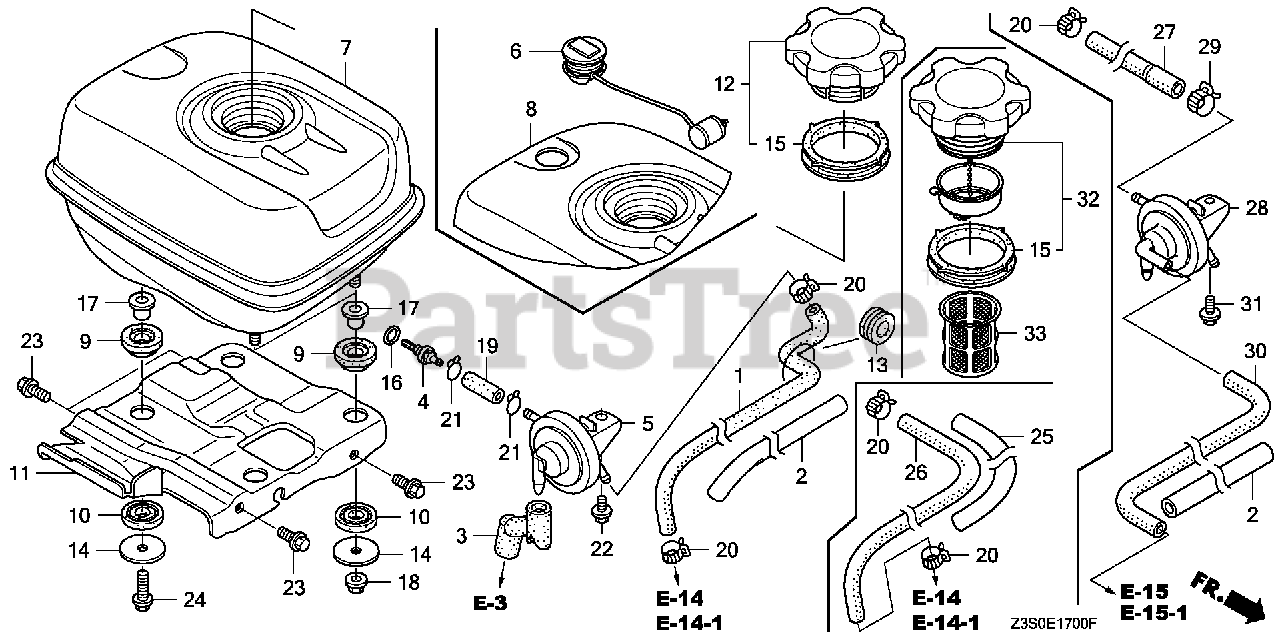

FUEL TANK Parts Diagram

  • Title

1

Honda 16852-Z2E-813

TUBE, AUTO FUEL PETCOCK (FKM)

$19.99

$

Usually ships in 3-6 days

0

2

Honda 16854-ZG0-960

RUBBER, SUPPORTER

$4.99

$

Usually ships in 3-6 days

0

3

Honda 16882-Z2E-010

TUBE, DIAPHRAGM

$10.99

$

Usually ships in 3-6 days

0

6

Honda 17505-Z2E-G02

GAUGE ASSY., FUEL

Note: (Optional).

$31.99

$

Usually ships in 3-6 days

0

8

Honda 17510-Z2E-812

TANK, FUEL (GAUGE)

Note: (Optional).

$215.99

$

Usually ships in 3-6 days

0

13

Honda 80101-310-000

RUBBER, RR. FENDER CUSHION

$2.99

$

Usually ships in 3-6 days

0

20

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$2.99

$

In Stock, Qty 6

0

28

Honda 16970-Z2E-023

PETCOCK ASSY., AUTO

Note: Use up to Engine SN 1008114.

$83.99

$

Usually ships in 3-6 days

0

28

Honda 16970-Z2E-023

PETCOCK ASSY., AUTO

Note: Use from Engine SN 1008115.

$83.99

$

Usually ships in 3-6 days

0

30

Honda 16853-Z2E-000

TUBE, AUTO FUEL PETCOCK AIR CLEANER

$18.99

$

Usually ships in 3-6 days

0

31

Honda 95701-06014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2374742).

$2.49

$

In Stock, Qty 9

0
