GX390 UT2 SZEC (GCBCT) - Honda Engine, Made in Thailand (SN: GCBCT-1000001 - GCBCT-9999999) RECOIL STARTER (2) Parts Diagram

Engine, Made in Thailand

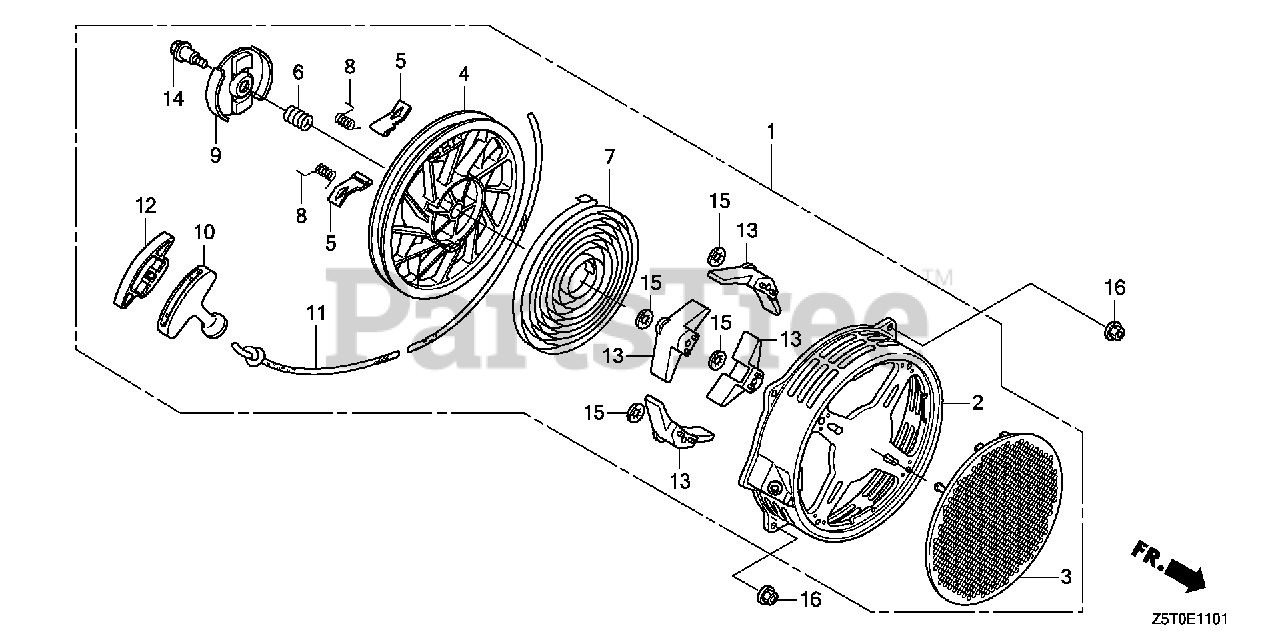

RECOIL STARTER (2) Parts Diagram

  • Title

1

Honda 28400-Z5T-W03ZB

STARTER ASSY., RECOIL *R280* (POWER RED)
(Superseded to 28400-Z5T-306ZA)

$51.99

$

Usually ships in 3-6 days

0

1

Honda 28400-Z5T-306ZB

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *NH1* (COO)(FOR U.S.A.) (BLACK)

$63.99

$

In Stock, only 2 left!

0

2

Honda 28410-Z5T-W02ZA

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *NH1* (BLACK)

$136.99

$

In Stock, only 1 left!

0

2

Honda 28410-Z5T-W02ZB

CASE, RECOIL STARTER *R280* (POWER RED)

$140.99

$

Usually ships in 3-6 days

0

3

Honda 28411-Z5T-W01

COVER, RECOIL STARTER

$26.99

$

Usually ships in 3-6 days

0

4

Honda 28421-Z5T-W01

PULLEY, RECOIL STARTER

$26.99

$

Usually ships in 3-6 days

0

5

Honda 28422-ZE2-W01

RATCHET, STARTER

$7.49

$

Usually ships in 3-6 days

0

6

Honda 28441-ZE2-W01

SPRING, FRICTION

$6.49

$

In Stock, Qty 10

0

7

Honda 28442-ZE2-W01

SPRING, STARTER RETURN

$18.99

$

In Stock, only 2 left!

0

8

Honda 28443-ZE2-W01

SPRING, RATCHET

$5.49

$

In Stock, Qty 12

0

9

Honda 28444-ZE2-W01

RETAINER, SPRING

$14.99

$

Usually ships in 3-6 days

0

10

Honda 28461-Z5T-003

SEE PART DETAILS - PRI; GRIP, STARTER
(Superseded to 28461-Z5T-305)

$10.99

$

In Stock, Qty 14

0

10

Honda 28461-Z5T-305

SEE PART DETAILS - SUP; GRIP, STARTER (COO)(FOR U.S.A.)
(Superseded to 28461-Z5T-003)

$10.99

$

In Stock, Qty 14

0

11

Honda 28462-ZE3-W01

ROPE, RECOIL STARTER

$14.99

$

In Stock, Qty 6

0

12

Honda 28463-Z5T-013

GRIP, REINFORCEMENT

$3.49

$

In Stock, Qty 20+

0

13

Honda 28465-Z5T-W01

COVER, ROPE

$5.99

$

In Stock, only 4 left!

0

14

Honda 90004-ZE2-W01

SCREW, CENTER

$4.49

$

In Stock, Qty 10

0

15

Honda 90201-Z5T-W01

NUT, PUSH

$8.49

$

Usually ships in 3-6 days

0

16

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0
