GX390 UT2 SZEC (GCBCT) - Honda Engine, Made in Thailand (SN: GCBCT-1000001 - GCBCT-9999999) MUFFLER (1) Parts Diagram

Engine, Made in Thailand

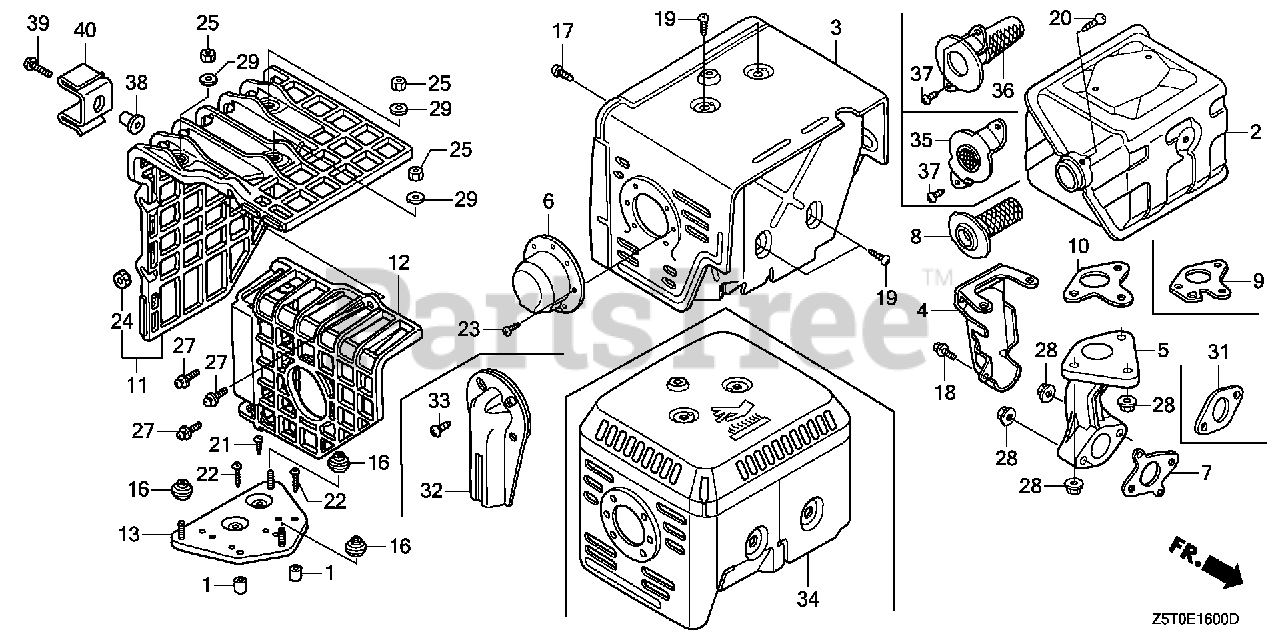

MUFFLER (1) Parts Diagram

  • Title
2

Honda 18310-Z5T-010

SEE PART DETAILS - PRI; MUFFLER

$36.99

$

In Stock, only 2 left!

0

5

$27.99

$

In Stock, only 1 left!

0

7

Honda 18333-Z1C-901

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$2.99

$

In Stock, only 3 left!

0

9

Honda 18381-ZE2-W10

GASKET, MUFFLER (ARRESTER) (NIPPON LEAKLESS)

Note: (Optional).

$12.99

$

In Stock, Qty 7

0

10

Honda 18381-ZE2-801

GASKET, MUFFLER (NIPPON LEAKLESS)

$14.99

$

In Stock, only 1 left!

0

10

Honda 18381-Z1C-801

GASKET, MUFFLER (THAI LEAKLESS)

$15.99

$

Usually ships in 3-6 days

0

17

Honda 90006-ZE2-000

SCREW, TAPPING (6X10)

$1.99

$

In Stock, Qty 5

0

19

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

$2.49

$

In Stock, Qty 20+

0

28

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

34

Honda 18320-Z5T-000

PROTECTOR, MUFFLER

$20.99

$

Usually ships in 3-6 days

0

35

Honda 18336-ZE3-000

FLANGE, BAFFLE

$13.99

$

Usually ships in 3-6 days

0

36

Honda 18350-Z5T-800

ARRESTER, SPARK

Note: (Optional).

$19.99

$

Usually ships in 3-6 days

0

37

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

$2.49

$

In Stock, Qty 20+

0
