GX390 UT2 SCC/A (GCBCT) - Honda Engine, Made in Thailand (SN: GCBCT-1000001 - GCBCT-3485996) CYLINDER BARREL Parts Diagram

Engine, Made in Thailand

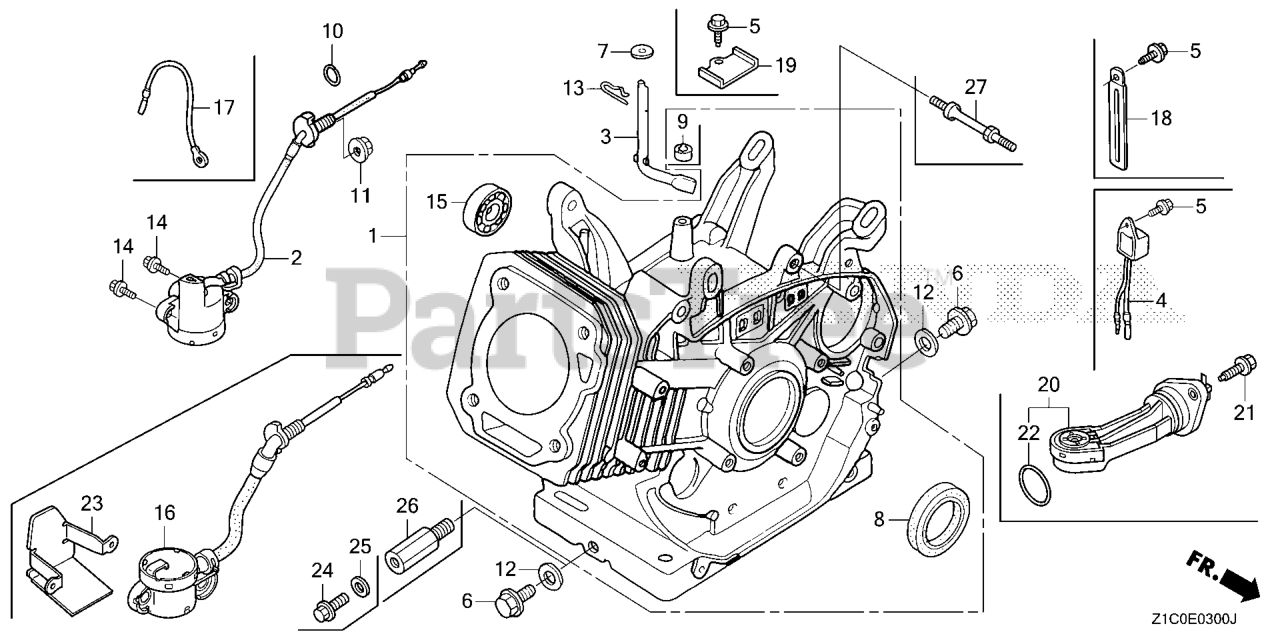

CYLINDER BARREL Parts Diagram

  • Title
1

Honda 12000-Z5T-418

CYLINDER ASSY.

$162.99

$

Usually ships in 3-6 days

0

3

Honda 16541-ZE3-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM (Honda Code 4717393).

$17.99

$

Usually ships in 3-6 days

0

6

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231).

$5.49

$

In Stock, Qty 11

0

7

Honda 90446-KE1-000

WASHER (8.2X17X0.8) (Honda Code 2027134).

$2.49

$

In Stock, only 1 left!

0

8

Honda 91201-Z1C-003

OIL SEAL (35X52X8) (NOK)

$9.99

$

In Stock, only 4 left!

0

8

Honda 91201-Z7E-003

OIL SEAL (35X52X8)

$11.99

$

In Stock, only 1 left!

0

9

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5) (Honda Code 2461713).

$5.49

$

In Stock, Qty 11

0

9

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5) (Honda Code 0744326).
(Superseded to 91201-ZE9-003)

$5.49

$

In Stock, Qty 11

0

9

Honda 91203-Z7E-003

OIL SEAL (8X14X5)

$29.99

$

Usually ships in 3-6 days

0

12

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.49

$

In Stock, Qty 20+

0

13

Honda 94251-10000

PIN, LOCK (10MM) (Honda Code 0159269).

$1.99

$

In Stock, Qty 5

0

15

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202) (Honda Code 0708941).

$12.99

$

In Stock, only 3 left!

0

15

Honda 91004-KZR-602

BEARING, RADIAL BALL (6202) (FUJIKOSHI)

Note: Use from Engine SN 3376769.

$12.99

$

Usually ships in 3-6 days

0
