GX390 UT2 SCC/A (GCBCT) - Honda Engine, Made in Thailand (SN: GCBCT-1000001 - GCBCT-3485996) CAMSHAFT Parts Diagram

Engine, Made in Thailand

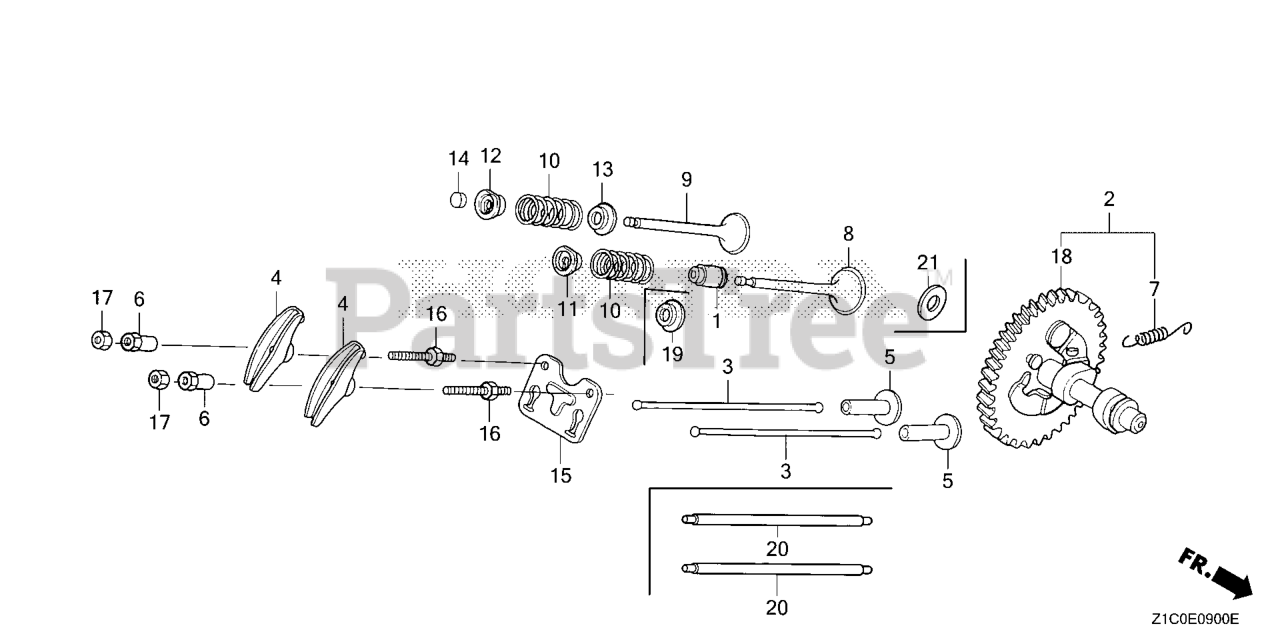

CAMSHAFT Parts Diagram

  • Title

1

Honda 12209-ZE8-003

SEAL, VALVE STEM (Honda Code 2089571).

$8.99

$

In Stock, Qty 8

0

3

Honda 14410-Z1C-000

ROD, PUSH

$8.99

$

In Stock, only 2 left!

0

4

Honda 14431-ZE2-010

SEE PART DETAILS - PRI; ARM, VALVE ROCKER (Honda Code 6206254).

$9.99

$

In Stock, Qty 20+

0

5

Honda 14441-ZE2-000

SEE PART DETAILS - PRI; LIFTER, VALVE

$17.99

$

In Stock, only 2 left!

0

6

Honda 14451-Z4M-000

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM

$6.49

$

In Stock, Qty 5

0

8

Honda 14711-Z5T-900

SEE PART DETAILS - PRI; VALVE, IN.

$9.49

$

In Stock, Qty 10

0

9

Honda 14721-Z5T-900

SEE PART DETAILS - PRI; VALVE, EX.

$12.99

$

In Stock, Qty 5

0

10

Honda 14751-Z1C-000

SPRING, VALVE

$5.99

$

In Stock, only 2 left!

0

11

Honda 14771-Z8S-000

SEE PART DETAILS - PRI; RETAINER, IN. VALVE SPRING (EXHAUST SIDE)

$2.49

$

In Stock, Qty 10

0

12

Honda 14771-Z8S-000

SEE PART DETAILS - PRI; RETAINER, IN. VALVE SPRING (EXHAUST SIDE)

$2.49

$

In Stock, Qty 10

0

13

Honda 14775-ZE2-010

SEAT, VALVE SPRING (Honda Code 2157485).

$3.99

$

In Stock, only 2 left!

0

15

Honda 14791-Z1D-000

GUIDE, PUSH ROD

$0.99

$

In Stock, only 4 left!

0

16

Honda 90012-ZE0-010

BOLT, PIVOT (8MM) (Honda Code 1756964).

$8.99

$

In Stock, only 2 left!

0

17

Honda 90206-ZE1-000

NUT, PIVOT ADJ. (Honda Code 1431287).

$4.49

$

In Stock, Qty 6

0

18

Honda 14100-Z5T-910

CAMSHAFT (STD)
(Superseded to 14100-Z5T-911)

$223.99

$

In Stock, only 1 left!

0

18

Honda 14100-Z5T-911

CAMSHAFT COMP (STD)

$223.99

$

In Stock, only 1 left!

0
