GX390 UT2 QC1 (GCBCT) - Honda Engine, Made in Thailand (SN: GCBCT-1000001 - GCBCT-3485996) MUFFLER (3) Parts Diagram

Engine, Made in Thailand

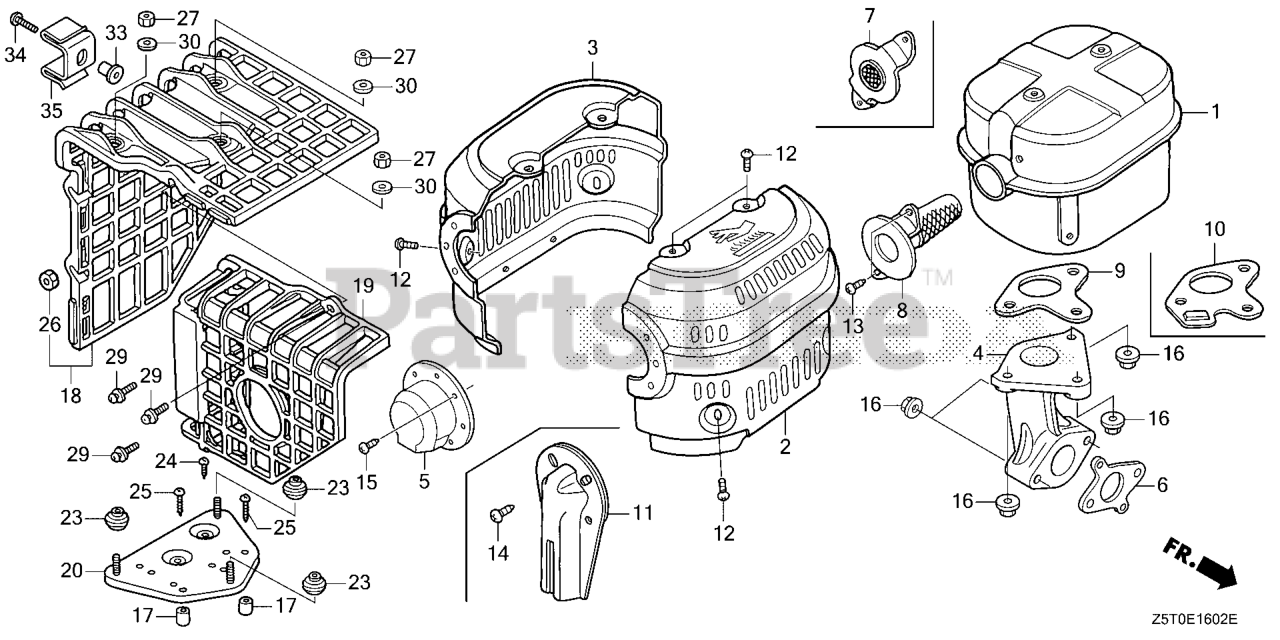

MUFFLER (3) Parts Diagram

  • Title

1

Honda 18310-Z8T-010

MUFFLER

$51.99

$

Usually ships in 3-6 days

0

2

Honda 18320-ZE3-H01

SEE PART DETAILS - PRI; PROTECTOR, R. MUFFLER

$50.99

$

In Stock, only 1 left!

0

3

Honda 18325-ZE3-H00

PROTECTOR, L. MUFFLER

$64.99

$

In Stock, only 1 left!

0

4

Honda 18330-ZE2-000

PIPE, EX. (Honda Code 2026219).

$70.99

$

In Stock, only 1 left!

0

6

Honda 18333-Z1C-901

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$2.99

$

In Stock, only 3 left!

0

7

Honda 18336-ZE3-000

FLANGE, BAFFLE (Honda Code 2309581).

$13.99

$

Usually ships in 3-6 days

0

8

Honda 18355-ZE3-010

SEE PART DETAILS - PRI; ARRESTER, SPARK (Honda Code 2537207).

Note: (Optional)

$36.99

$

Usually ships in 3-6 days

0

9

Honda 18381-Z1C-801

GASKET, MUFFLER (THAI LEAKLESS)

$15.99

$

Usually ships in 3-6 days

0

12

Honda 90050-ZE3-H00

SCREW, TAPPING (5X8)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90050-ZE1-000

SCREW, TAPPING (5X8) (Honda Code 1431105).

$2.49

$

In Stock, Qty 20+

0

16

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

17

Honda 17233-896-701

COLLAR, AIR CLEANER HOUSING (Honda Code 2577419).

Note: (Optional)

$4.99

$

Usually ships in 3-6 days

0

18

Honda 18433-Z5T-000

COVER, MUFFLER

Note: (Optional)

$121.99

$

Usually ships in 3-6 days

0

19

Honda 18434-Z5T-000

COVER, RR. MUFFLER

Note: (Optional)

$61.99

$

In Stock, only 2 left!

0

20

Honda 18436-ZH8-W41

BASE, MUFFLER COVER

Note: (Optional)

$19.99

$

Usually ships in 3-6 days

0

23

Honda 18466-ZH8-W40

SPACER, MUFFLER COVER (Honda Code 4787198).

Note: (Optional)

$8.49

$

Usually ships in 3-6 days

0

24

Honda 90050-ZE1-000

SCREW, TAPPING (5X8) (Honda Code 1431105).

Note: (Optional)

$2.49

$

In Stock, Qty 20+

0

25

Honda 90050-ZH8-W40

SCREW, TAPPING (5X25) (Honda Code 4787206).

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0

26

Honda 90301-782-000

NUT, U (6MM)

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

27

Honda 90302-KF9-900

NUT, HEX. (5MM) (Honda Code 4787214).

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

29

Honda 93891-06020-07

SCREW-WASHER (6X20) (Honda Code 1188614).

Note: (Optional)

$1.99

$

In Stock, only 4 left!

0

30

Honda 94103-05700

WASHER, PLAIN (5MM) (Honda Code 0692491).

Note: (Optional)

$1.49

$

In Stock, only 4 left!

0

33

Honda 19619-ZL8-300

COLLAR, FAN COVER (Honda Code 5580527). (N/A: SEE ASSEMBLY)

Note: (Optional)

$1.49

$

In Stock, Qty 20+

0

34

Honda 90006-Z5T-000

SCREW, TAPPING (6X25)

Note: (Optional)

$3.49

$

Usually ships in 3-6 days

0

35

Honda 18437-Z5T-000

STAY, MUFFLER COVER

Note: (Optional)

$32.99

$

Usually ships in 3-6 days

0
