GX390 UT2 QAE2/A (GCBCT) - Honda Engine, Made in Thailand (SN: GCBCT-3000001 - GCBCT-9999999) CONTROL BOX (1) Parts Diagram

Engine, Made in Thailand

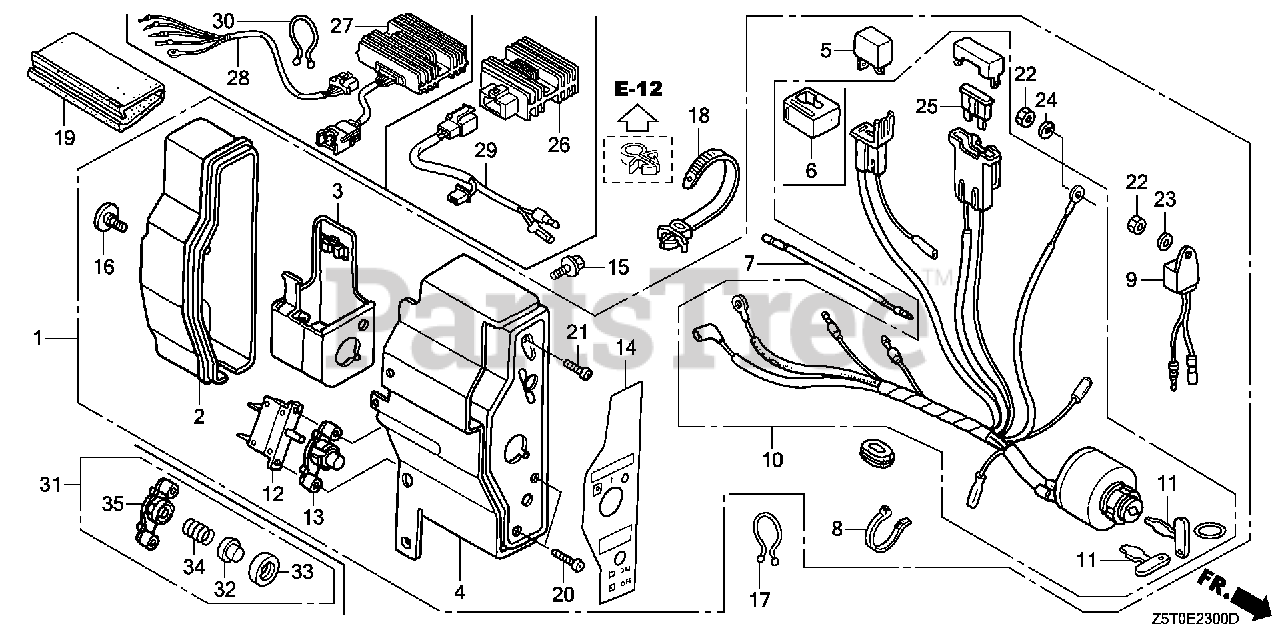

CONTROL BOX (1) Parts Diagram

  • Title

1

Honda 31610-Z5T-821ZA

BOX ASSY., CONTROL (3A) *NH1* (BLACK)

$189.99

$

Usually ships in 3-6 days

0

1

Honda 31610-Z5T-821ZB

BOX ASSY., CONTROL (3A) *R280* (POWER RED)

$190.99

$

Usually ships in 3-6 days

0

2

Honda 31612-ZE2-003

SEE PART DETAILS - PRI; CASE, CONTROL (Honda Code 2095875).

$21.99

$

In Stock, only 1 left!

0

3

Honda 31614-ZE2-003

SEE PART DETAILS - PRI; BRACKET, CASE MOUNTING (Honda Code 2095883).

$17.99

$

Usually ships in 3-6 days

0

4

Honda 31615-ZE3-003ZE

SEE PART DETAILS - PRI; PANEL, CONTROL *R280* (POWER RED)

$29.99

$

Usually ships in 3-6 days

0

4

Honda 31615-ZE3-003ZA

PANEL, CONTROL *NH1* (BLACK)

$34.99

$

Usually ships in 3-6 days

0

5

Honda 31700-124-008

SEE PART DETAILS - PRI; RECTIFIER ASSY., SILICON (SHINDENGEN)

$39.99

$

In Stock, only 1 left!

0

6

Honda 32127-738-700

SUSPENSION, CONNECTOR (Honda Code 2026631).

$4.99

$

Usually ships in 3-6 days

0

8

Honda 32902-892-003

BAND (Honda Code 0947457).

$4.99

$

In Stock, only 1 left!

0

10

Honda 35100-Z5T-821

SWITCH ASSY., COMBINATION (3A-CHARGE)

$162.99

$

In Stock, only 1 left!

0

11

Honda 35111-880-013

SEE PART DETAILS - PRI; KEY (Honda Code 7635063).

$11.99

$

In Stock, only 3 left!

0

12

Honda 38240-ZE2-840

PROTECTOR, CIRCUIT (3.5A) (Honda Code 2652931).

$32.99

$

Usually ships in 3-6 days

0

13

Honda 38250-ZA8-701

LENS ASSY., PROTECTOR (Honda Code 1888676).

$19.99

$

Usually ships in 3-6 days

0

14

Honda 87529-Z4T-840

MARK, CONTROL BOX (EXTERNAL)

$15.99

$

Usually ships in 3-6 days

0

15

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

16

Honda 90380-MA6-010

SEE PART DETAILS - PRI; SCREW, SPECIAL (6X12) (Honda Code 1490648).

$4.49

$

Usually ships in 3-6 days

0

17

Honda 90630-751-000

SEE PART DETAILS - PRI; CLIP, PURSE LOCK

$2.49

$

Usually ships in 3-6 days

0

18

Honda 90672-SA0-003

STRAP, CABLE (118MM) *NH1L* (Honda Code 1170653). (BLACK)

$9.99

$

Usually ships in 3-6 days

0

19

Honda 91406-ZE2-003

TUBE, FASTENER (30) (Honda Code 2159762).

$6.99

$

Usually ships in 3-6 days

0

20

Honda 93500-03012-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X12) (Honda Code 0665521).

$1.49

$

Usually ships in 3-6 days

0

25

Honda 98200-31500

FUSE, BLADE (15A) (Honda Code 1644244).

$1.99

$

In Stock, Qty 6

0
