GX390 UT2 LFU (GCBCT) - Honda Engine, Made in Thailand (SN: GCBCT-3000001 - GCBCT-3485996) FUEL TANK (2) Parts Diagram

Engine, Made in Thailand

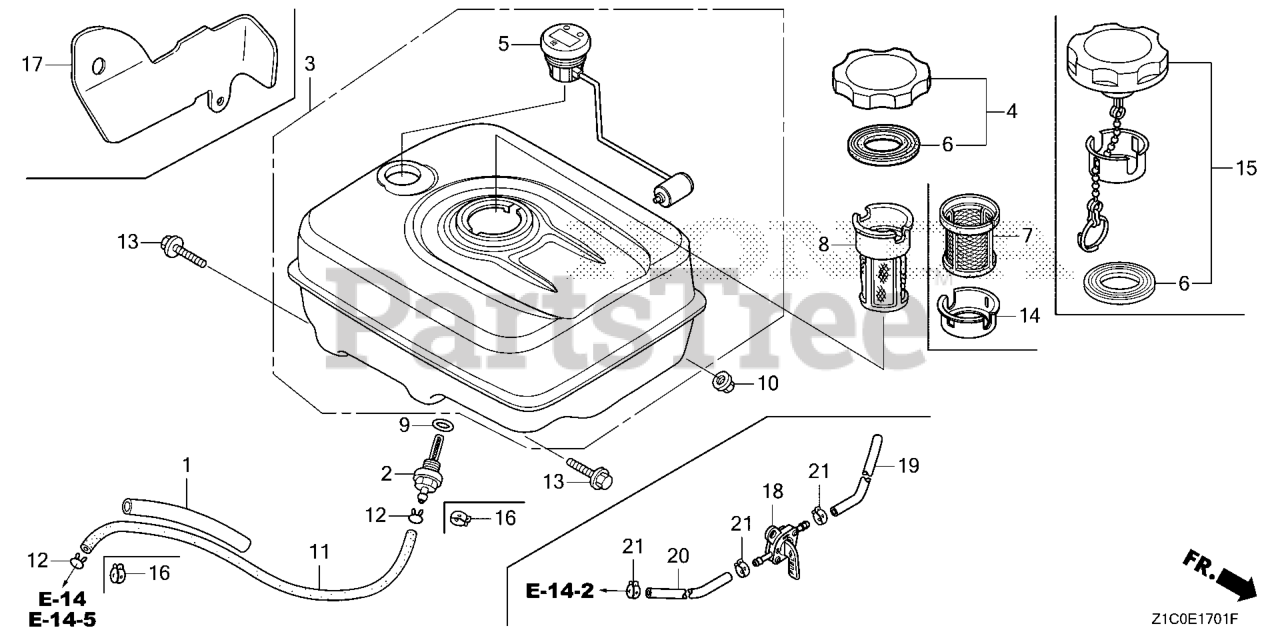

FUEL TANK (2) Parts Diagram

  • Title

2

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

3

Honda 17500-Z5T-810ZB

TANK ASSY., FUEL *NH31* (GAUGE) (MCKINLEY WHITE)
(Superseded to 17500-Z5T-811ZB)

$128.99

$

Usually ships in 3-6 days

0

3

Honda 17500-Z5T-810ZC

TANK ASSY., FUEL *NH1* (GAUGE) (BLACK)

$76.99

$

Usually ships in 3-6 days

0

5

Honda 17630-Z5T-003

GAUGE ASSY., FUEL

$46.99

$

Usually ships in 3-6 days

0

6

Honda 17631-Z0T-801

GASKET, FUEL FILLER CAP (Honda Code 7346745).

$0.99

$

In Stock, Qty 8

0

6

Honda 17631-Z1T-800

GASKET, FUEL FILLER CAP (39X62X3) (TOUYOUSYA)

$

$

Not available

7

Honda 17672-Z4H-000

FILTER, FUEL (FROM 1204807)

$11.99

$

In Stock, only 4 left!

0

9

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$3.99

$

In Stock, Qty 20+

0

10

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

13

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325).

$2.49

$

In Stock, only 3 left!

0

15

Honda 17620-Z4H-900

SEE PART DETAILS - PRI; CAP, FUEL FILLER

Note: Use up to Engine SN 3316209.

$79.99

$

Usually ships in 3-6 days

0

15

Honda 17620-Z4H-910

CAP, FUEL FILLER
(Superseded to 17620-Z4H-912)

Note: Use from Engine SN 3316210.

$79.99

$

In Stock, only 3 left!

0

15

Honda 17620-Z4H-912

CAP, FUEL FILLER

Note: Use from Engine SN 3316210.

$79.99

$

In Stock, only 3 left!

0

16

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$2.99

$

In Stock, only 4 left!

0

18

Honda 16960-YA0-015

PETCOCK ASSY. (DRAIN)

$

$

Not available

19

Honda 91424-Z9K-812

TUBE, FUEL (4.2X110) (FKM)

$7.99

$

Usually ships in 3-6 days

0

20

Honda 91424-ZBC-812

TUBE, FUEL (4.2X120) (FKM)

$8.49

$

Usually ships in 3-6 days

0

21

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$2.99

$

In Stock, only 4 left!

0
