GX390 UH1 VPX5 (GCAHH) - Honda Engine, Made in China (SN: GCAHH-0000001 - GCAHH-9999999) MUFFLER COVER Parts Diagram

Engine, Made in China

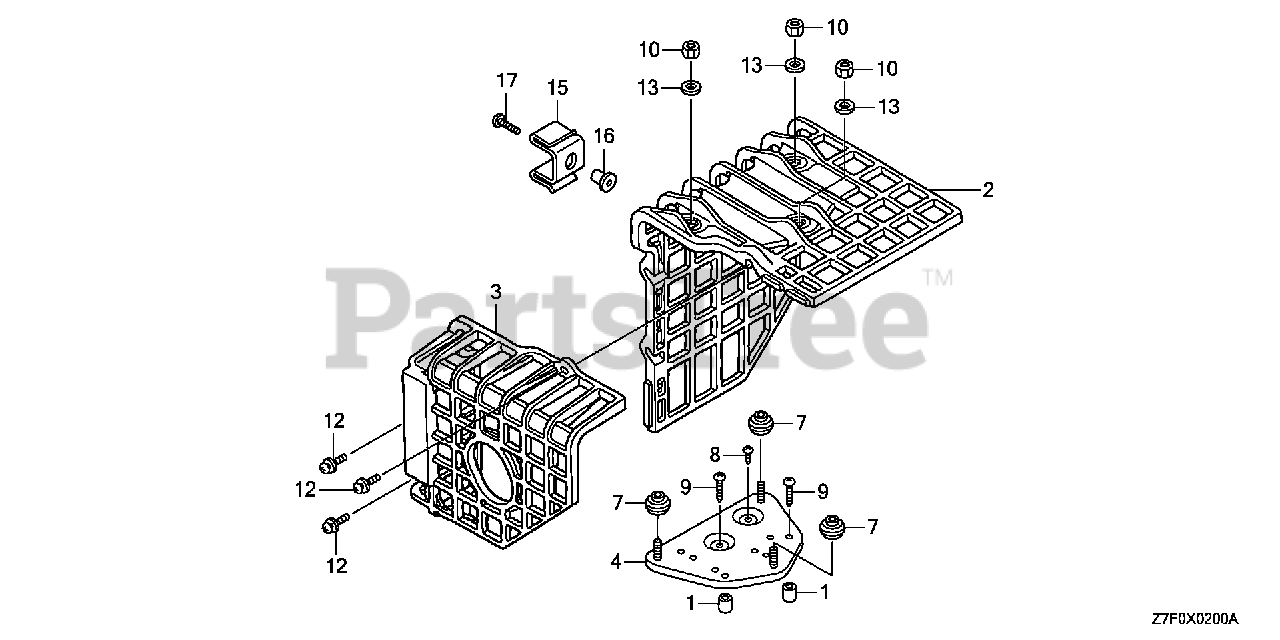

MUFFLER COVER Parts Diagram

  • Title

1

Honda 17233-896-701

COLLAR, AIR CLEANER HOUSING

Note: (Optional).

$5.49

$

Usually ships in 3-6 days

0

2

Honda 18433-ZF6-W40

COVER, MUFFLER

Note: (Optional).

$132.99

$

Usually ships in 3-6 days

0

2

Honda 18433-Z5T-000

COVER, MUFFLER

Note: (Optional).

$132.99

$

Usually ships in 3-6 days

0

3

Honda 18434-ZF6-W40

COVER, RR. MUFFLER

Note: (Optional).

$66.99

$

Usually ships in 3-6 days

0

3

Honda 18434-Z5T-000

COVER, RR. MUFFLER

Note: (Optional).

$66.99

$

In Stock, only 2 left!

0

4

Honda 18436-ZF6-W400

BASE, MUFFLER COVER

Note: (Optional).

$

$

Not available

4

Honda 18436-ZH8-W41

BASE, MUFFLER COVER

Note: (Optional).

$21.99

$

Usually ships in 3-6 days

0

5

Honda 18437-ZF6-W40

STAY, MUFFLER COVER

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

6

Honda 18438-ZF6-W40

PLATE, SET

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

7

Honda 18466-ZH8-W40

SPACER, MUFFLER COVER

Note: (Optional).

$8.99

$

Usually ships in 3-6 days

0

8

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

Note: (Optional).

$2.49

$

In Stock, Qty 20+

0

9

Honda 90050-ZH8-W40

SCREW, TAPPING (5X25)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

10

Honda 90302-KF9-900

NUT, HEX. (5MM)

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

11

Honda 93891-05012-00

SCREW-WASHER (5X12)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

12

Honda 93891-06020-07

SCREW-WASHER (6X20)

Note: (Optional).

$1.99

$

In Stock, Qty 5

0

13

Honda 94103-05700

WASHER, PLAIN (5MM)

Note: (Optional).

$1.49

$

In Stock, only 4 left!

0

14

Honda 94111-05000

WASHER, SPRING (5MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

15

Honda 18437-Z5T-000

STAY, MUFFLER COVER

Note: (Optional).

$35.99

$

Usually ships in 3-6 days

0

16

Honda 19619-ZL8-300

COLLAR, FAN COVER

Note: (Optional).

$1.49

$

In Stock, only 4 left!

0

17

Honda 90006-Z5T-000

SCREW, TAPPING (6X25)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0
