GX390 UH1 VPX5 (GCAHH) - Honda Engine, Made in China (SN: GCAHH-0000001 - GCAHH-9999999) CARBURETOR (2) Parts Diagram

Engine, Made in China

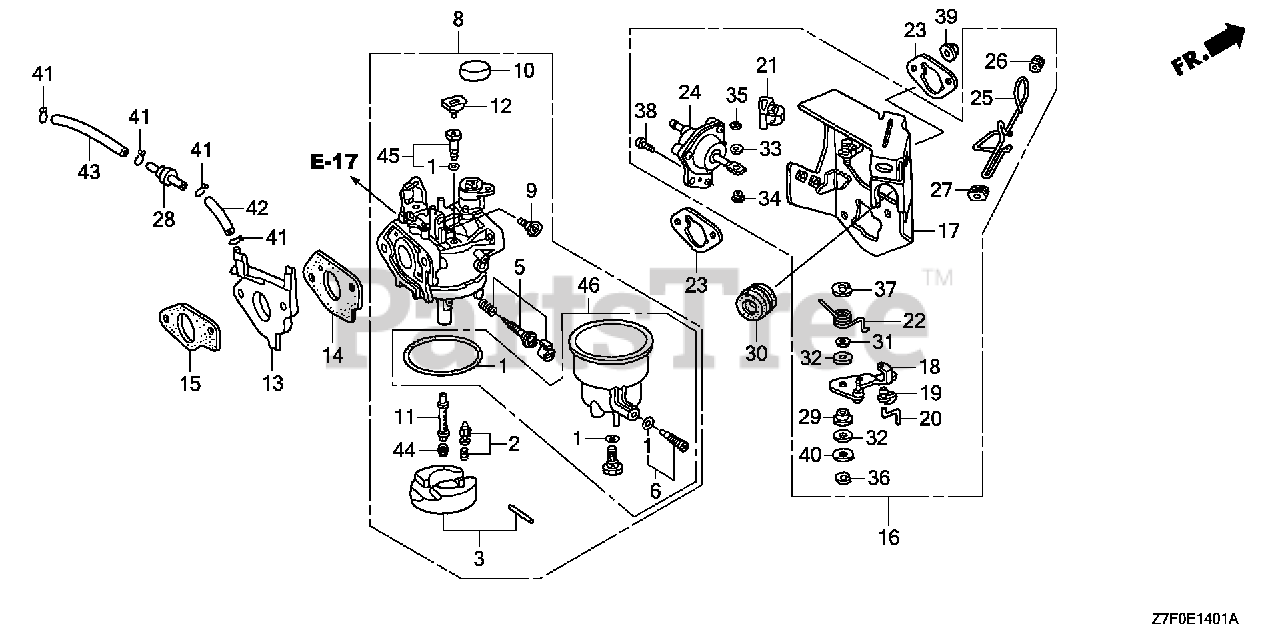

CARBURETOR (2) Parts Diagram

  • Title

1

Honda 16010-ZA0-921

GASKET SET

$19.99

$

In Stock, only 3 left!

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT

$45.99

$

In Stock, only 1 left!

0

3

Honda 16013-Z1C-003

FLOAT SET

$55.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZA0-931

CHAMBER SET, FLOAT

$83.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH8-W01

SCREW SET

$12.99

$

In Stock, only 1 left!

0

6

Honda 16024-124-760

SCREW SET, DRAIN

$15.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZA0-701

SCREW SET
(Superseded to 06160-Z1C-325)

$24.99

$

In Stock, only 2 left!

0

8

Honda 16100-Z7F-811

CARBURETOR ASSY. (BE89L A)
(Superseded to 16100-Z7F-814)

$291.99

$

Usually ships in 3-6 days

0

9

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

10

Honda 16148-141-881

SEE PART DETAILS - PRI; CAP, CHOKE DUST

$6.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZF6-005

NOZZLE, MAIN

$31.99

$

Usually ships in 3-6 days

0

12

Honda 16172-ZE3-W10

COLLAR, SETTING

$10.99

$

Usually ships in 3-6 days

0

13

Honda 16211-Z7E-700

INSULATOR, CARBURETOR

$22.99

$

In Stock, only 1 left!

0

14

Honda 16221-ZF6-800

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 11

0

15

Honda 16223-ZE3-W00

GASKET, INSULATOR

$2.99

$

In Stock, only 3 left!

0

16

Honda 16260-Z7E-000

STAY ASSY., MANUAL CHOKE (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 16261-ZE2-702

STAY, SOLENOID

$35.99

$

Usually ships in 3-6 days

0

18

Honda 16262-ZE2-711

LEVER, CHOKE

$9.49

$

Usually ships in 3-6 days

0

19

Honda 16263-Z7B-000

JOINT, ROD

$3.49

$

Usually ships in 3-6 days

0

20

Honda 16264-ZE2-701

ROD, CHOKE

$2.49

$

In Stock, only 1 left!

0

21

Honda 16265-Z7E-000

STOPPER, CHOKE ROD

$2.49

$

Usually ships in 3-6 days

0

22

Honda 16268-ZE2-721

SPRING, MANUAL CHOKE

$4.49

$

Usually ships in 3-6 days

0

23

Honda 16269-ZA0-800

GASKET, AIR CLEANER

$2.49

$

In Stock, Qty 20+

0

24

Honda 16400-ZE2-704

SEE PART DETAILS - PRI; DIAPHRAGM ASSY.

$86.99

$

Usually ships in 3-6 days

0

25

Honda 16611-ZE3-D21

ROD, CHOKE CONTROL

$8.49

$

Usually ships in 3-6 days

0

26

Honda 16613-893-000

GROMMET, CHOKE ROD

$3.99

$

In Stock, Qty 20+

0

27

Honda 16615-893-000

GUIDE, CHOKE ROD

$4.99

$

In Stock, only 1 left!

0

28

Honda 36135-ZF6-D41

VALVE, DASHPOT CHECK

$43.99

$

Usually ships in 3-6 days

0

29

Honda 53149-964-003

BUSH, ARM PIVOT

$8.99

$

Usually ships in 3-6 days

0

30

Honda 88911-MJ3-000

GROMMET, FENDER

$2.49

$

In Stock, Qty 5

0

31

Honda 90431-ZE2-700

WASHER, CHOKE LEVER

$4.49

$

Usually ships in 3-6 days

0

32

Honda 90432-ZE2-700

SEAL, CHOKE LEVER

$4.49

$

Usually ships in 3-6 days

0

33

Honda 90433-ZE2-700

WASHER, THRUST (2.7X8)

$3.99

$

Usually ships in 3-6 days

0

34

Honda 90434-ZE2-700

COLLAR, LEVER

$3.99

$

Usually ships in 3-6 days

0

35

Honda 90601-Z7E-000

E-RING (2MM)

$4.49

$

Usually ships in 3-6 days

0

36

Honda 90602-Z7E-000

E-RING (4MM)

$4.49

$

Usually ships in 3-6 days

0

37

Honda 90603-Z7E-000

E-RING (7MM)

$4.99

$

Usually ships in 3-6 days

0

38

Honda 93500-05012-0A

SCREW, PAN (5X12)

$1.49

$

In Stock, Qty 8

0

39

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

40

Honda 94103-05000

WASHER, PLAIN (5MM)

$0.99

$

In Stock, only 3 left!

0

41

Honda 95002-02070

CLIP, TUBE (B7)

$2.49

$

In Stock, Qty 5

0

42

Honda 95005-35008-10M

BULK HOSE, VACUUM (3.5X8000) (3.5X75)

$158.99

$

Usually ships in 3-6 days

0

43

Honda 95005-35008-10M

BULK HOSE, VACUUM (3.5X8000) (3.5X130)

$158.99

$

Usually ships in 3-6 days

0

44

Honda 99101-ZH8-1020

JET, MAIN (#102)

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

44

Honda 99101-ZH8-1050

JET, MAIN (#105)

Note: (Optional).

$8.99

$

Usually ships in 3-6 days

0

44

Honda 99101-ZH8-1080

JET, MAIN (#108)

$8.99

$

Usually ships in 3-6 days

0

45

Honda 99204-ZA0-0450

JET SET, PILOT (#45)

$25.99

$

In Stock, only 1 left!

0

46

Honda 06160-Z1C-305

BOLT KIT, FUEL CHAMBER
(Superseded to 06160-Z1C-325)

$24.99

$

In Stock, only 2 left!

0
