GX390 U1 QSC2 (GCANK) - Honda Engine, Made in Japan (SN: GCANK-1000001 - GCANK-9999999) CONTROL BOX (2) Parts Diagram

Engine, Made in Japan

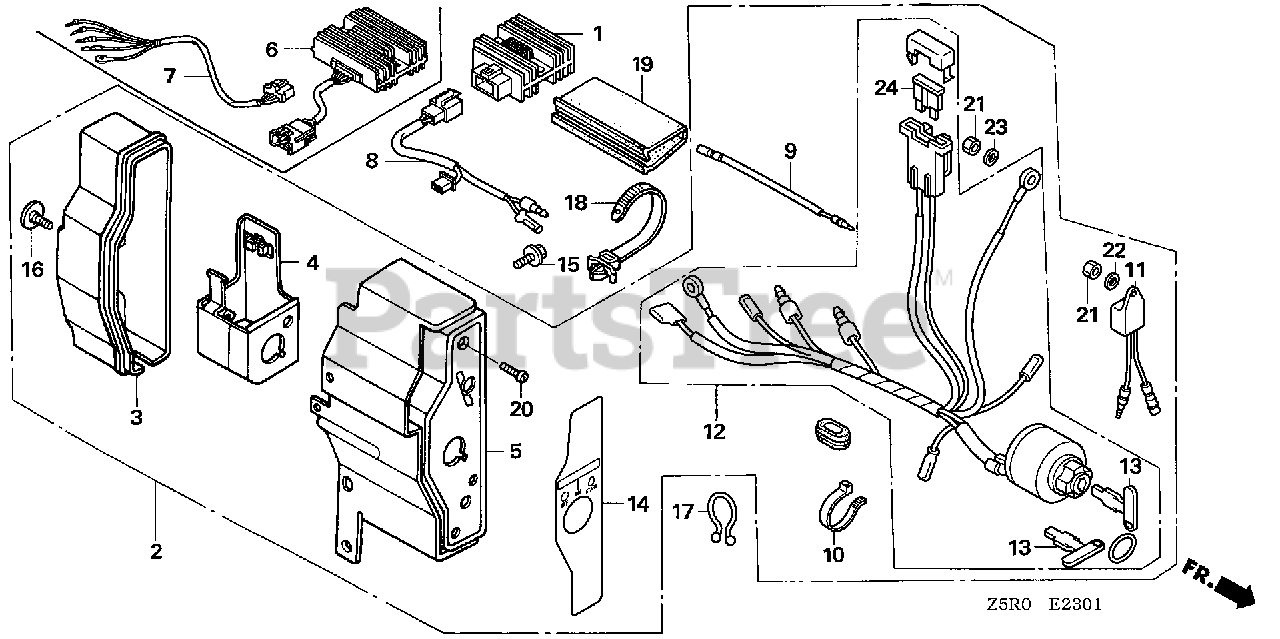

CONTROL BOX (2) Parts Diagram

  • Title

2

Honda 31610-ZE3-W42ZD

BOX ASSY., CONTROL (18A) *R280* (EXP-ALERT) (POWER RED)

Note: Use up to Engine SN 1034001.

$312.99

$

Usually ships in 3-6 days

0

2

Honda 31610-Z5R-821ZB

BOX ASSY., CONTROL (18A) *R280* (EXP-ALERT) (POWER RED)

Note: Use from Engine SN 1034002.

$279.99

$

Usually ships in 3-6 days

0

3

Honda 31612-ZE2-003

CASE, CONTROL

$23.99

$

Usually ships in 3-6 days

0

4

Honda 31614-ZE2-003

BRACKET, CASE MOUNTING

$19.99

$

Usually ships in 3-6 days

0

5

Honda 31615-ZE3-003ZE

PANEL, CONTROL *R280* (POWER RED)

$31.99

$

Usually ships in 3-6 days

0

6

Honda 31620-ZG5-033

SEE PART DETAILS - PRI; RECTIFIER ASSY., REGULATOR (20A)

$214.99

$

In Stock, only 3 left!

0

7

Honda 32110-ZE2-W00

SUB-WIRE HARNESS ASSY.

$50.99

$

In Stock, only 1 left!

0

9

Honda 32197-ZE1-003

SUB-WIRE HARNESS

$12.99

$

Usually ships in 3-6 days

0

10

Honda 32902-892-003

BAND

$4.99

$

In Stock, only 4 left!

0

11

Honda 34150-ZH7-013

SEE PART DETAILS - SUP; ALERT UNIT, OIL
(Superseded to 34150-ZH7-023)

$56.99

$

In Stock, only 3 left!

0

11

Honda 34150-ZH7-023

SEE PART DETAILS - PRI; ALERT UNIT, OIL

$56.99

$

In Stock, only 3 left!

0

12

Honda 35100-ZE2-W01

SWITCH ASSY., COMBINATION (18A-CHARGE)

$141.99

$

Usually ships in 3-6 days

0

13

Honda 35111-880-013

KEY (HONDALOCK)

$12.99

$

In Stock, Qty 5

0

14

Honda 87529-ZE2-861

MARK, CONTROL BOX (EXTERNAL-REGULATOR)

Note: Use up to Engine SN 1034001.

$20.99

$

Usually ships in 3-6 days

0

14

Honda 87529-Z4S-820

MARK, CONTROL BOX (EXP)

Note: Use from Engine SN 1034002.

$16.99

$

Usually ships in 3-6 days

0

15

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

16

Honda 90380-MA6-010

SCREW, SPECIAL (6X12)

$4.49

$

Usually ships in 3-6 days

0

17

Honda 90630-751-000

CLIP, PURSE LOCK

$2.99

$

Usually ships in 3-6 days

0

18

Honda 90672-SA0-003

STRAP, CABLE (118MM) (BLACK)

$10.99

$

Usually ships in 3-6 days

0

19

Honda 91406-ZE2-003

TUBE, FASTENER (30MM)

$7.49

$

Usually ships in 3-6 days

0

20

Honda 93500-04012-0H

SCREW, PAN (4X12)

$1.49

$

In Stock, only 2 left!

0

21

Honda 94001-04390-0S

NUT, HEX. (4MM) (SOURCE: VINTAGE PARTS INC.)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 94101-04800

WASHER, PLAIN (4MM)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 94111-04800

WASHER, SPRING (4MM)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 98200-32500

FUSE, BLADE (25A)

$3.49

$

Usually ships in 3-6 days

0
