GX390 T1 QA2 (GCAET) - Honda Engine, Made in Thailand (SN: GCAET-1000001 - GCAET-9999999) PISTON Parts Diagram

Engine, Made in Thailand

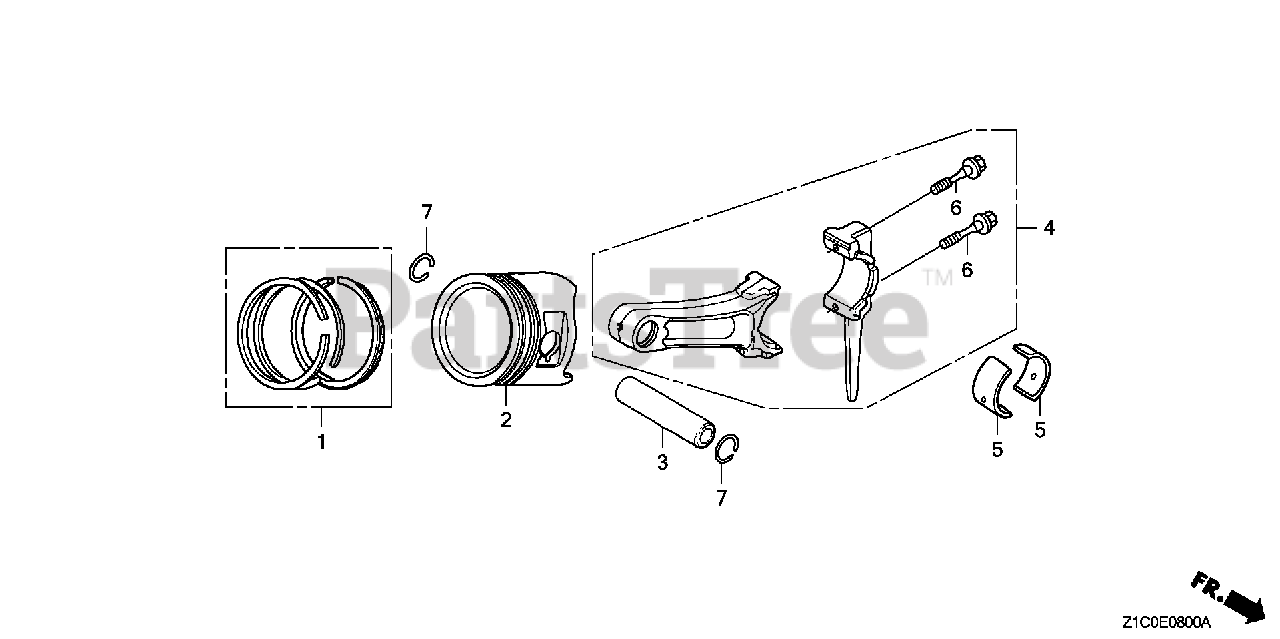

PISTON Parts Diagram

  • Title

1

Honda 13010-Z1C-800

RING SET, PISTON (STD.) (RIKEN)

$73.99

$

Usually ships in 3-6 days

0

1

Honda 13011-Z1C-800

RING SET, PISTON (0.25) (RIKEN)

Note: (Optional).

$80.99

$

Usually ships in 3-6 days

0

1

Honda 13012-Z1C-800

RING SET, PISTON (0.50) (RIKEN)

Note: (Optional).

$80.99

$

Usually ships in 3-6 days

0

1

Honda 13013-Z1C-800

RING SET, PISTON (0.75) (RIKEN)

Note: (Optional).

$80.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZF6-W00

PISTON (STD)

$70.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZF6-W00

PISTON (OS 0.25)

Note: (Optional).

$124.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZF6-W00

PISTON (OS 0.50)

Note: (Optional).

$

$

Not available

2

Honda 13104-ZF6-W00

PISTON (OS 0.75)

Note: (Optional).

$124.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZF6-W00

PIN, PISTON

$15.99

$

In Stock, only 1 left!

0

4

Honda 13200-Z1C-305

ROD ASSY., CONNECTING (0.25 LOWER SIZE)

Note: (Optional).

$

$

Not available

4

Honda 13200-Z1C-900

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (STD)

$31.99

$

In Stock, only 1 left!

0

6

Honda 90001-ZE8-000

BOLT, CONNECTING ROD (Honda Code 2160489).

$4.49

$

In Stock, only 1 left!

0

7

Honda 90601-ZE3-000

CLIP, PISTON PIN (20MM) (Honda Code 2108579).

$2.49

$

In Stock, Qty 5

0
