GX390 T1 QA2 (GCAET) - Honda Engine, Made in Thailand (SN: GCAET-1000001 - GCAET-9999999) FUEL TANK (1) Parts Diagram

Engine, Made in Thailand

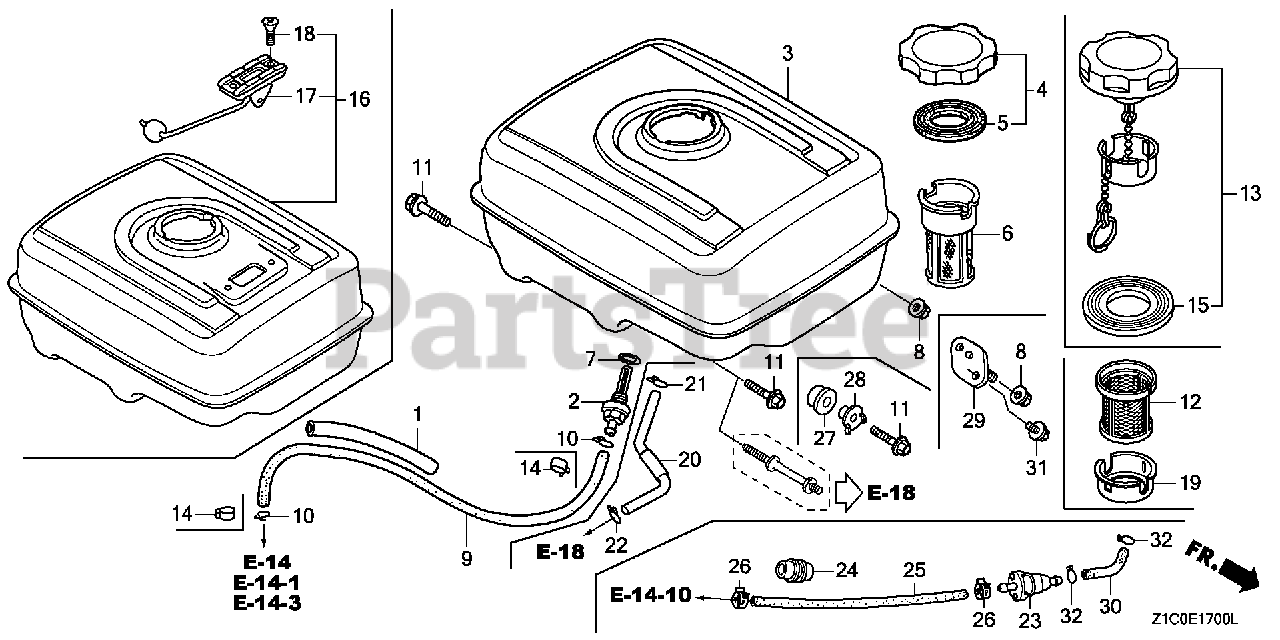

FUEL TANK (1) Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$4.99

$

In Stock, Qty 14

0

2

Honda 16955-ZE1-000

SEE PART DETAILS - SUP; JOINT, FUEL TANK (NOT AVAILABLE)
(Superseded to 16955-ZE1-010)

$8.99

$

In Stock, Qty 20+

0

2

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

3

Honda 17510-ZE3-030ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE)

$99.99

$

In Stock, only 1 left!

0

3

Honda 17510-ZE3-030ZB

SEE PART DETAILS - PRI; TANK, FUEL *NH1* (BLACK)

$150.99

$

Usually ships in 3-6 days

0

4

Honda 17620-Z0T-813

CAP, FUEL FILLER (CHROME PLATED)(RADICON)

$20.99

$

Usually ships in 3-6 days

0

5

Honda 17631-Z0T-801

GASKET, FUEL FILLER CAP (Honda Code 7346745).

$0.99

$

In Stock, Qty 8

0

6

Honda 17672-ZE2-W01

SEE PART DETAILS - PRI; FILTER, FUEL

$12.99

$

In Stock, only 3 left!

0

7

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$3.99

$

In Stock, Qty 20+

0

7

Honda 91353-671-004

SEE PART DETAILS - SUP; O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

8

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

9

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140)

$54.99

$

In Stock, only 4 left!

0

10

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

11

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325).

$2.49

$

In Stock, only 4 left!

0
