GX390 K2 QAPW (GCBJK) - Honda Engine, Made in Japan (SN: GCBJK-1000001 - GCBJK-9999999) CONTROL (1) Parts Diagram

Engine, Made in Japan

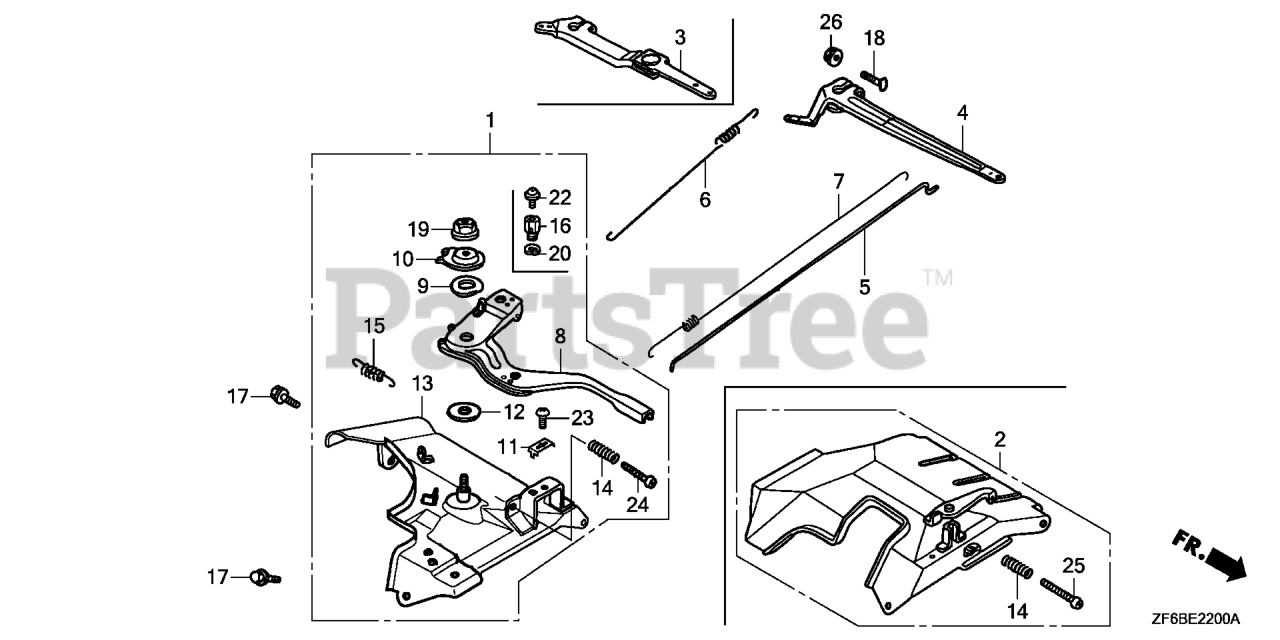

CONTROL (1) Parts Diagram

  • Title

1

Honda 16500-Z5T-810

CONTROL ASSY. (REMOTE)(ROD)

$74.99

$

Usually ships in 3-6 days

0

4

Honda 16551-ZE3-000

ARM, GOVERNOR (Honda Code 2107928).

$17.99

$

In Stock, only 1 left!

0

5

Honda 16555-ZE3-000

ROD, GOVERNOR (Honda Code 2107936).

$5.49

$

In Stock, only 1 left!

0

6

Honda 16561-ZE3-000

SPRING, GOVERNOR (Honda Code 2107944).

$5.99

$

In Stock, Qty 11

0

7

Honda 16562-ZE3-000

SPRING, THROTTLE RETURN (Honda Code 2107951).

$4.99

$

In Stock, Qty 20+

0

8

Honda 16571-ZE3-W00

SEE PART DETAILS - PRI; LEVER, CONTROL

$14.99

$

In Stock, only 1 left!

0

9

Honda 16574-ZE1-000

SPRING, LEVER (Honda Code 1427384).

$4.49

$

In Stock, only 2 left!

0

10

Honda 16575-ZE2-W00

SEE PART DETAILS - PRI; WASHER, CONTROL LEVER

$5.49

$

Usually ships in 3-6 days

0

11

Honda 16576-891-000

HOLDER, CABLE (Honda Code 0800466).

$4.99

$

Usually ships in 3-6 days

0

12

Honda 16578-ZE1-000

SPACER, CONTROL LEVER (Honda Code 1427400).

$5.49

$

In Stock, only 4 left!

0

13

Honda 16580-Z5T-000

BASE, CONTROL

$6.49

$

In Stock, only 1 left!

0

14

Honda 16584-883-300

SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.

$4.99

$

In Stock, Qty 7

0

15

Honda 16592-883-310

SEE PART DETAILS - PRI; SPRING, CABLE RETURN (Honda Code 0743203).

$3.49

$

In Stock, only 2 left!

0

17

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

18

Honda 90015-ZE5-010

SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671).

$3.49

$

In Stock, only 3 left!

0

19

Honda 90114-SA0-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM) (Honda Code 1410182).

$4.49

$

In Stock, Qty 20+

0

23

Honda 93500-05016-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X16) (Honda Code 0145557).

$1.49

$

In Stock, Qty 7

0

24

Honda 93500-05032-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X32) (Honda Code 0219923).

$1.49

$

Usually ships in 3-6 days

0

26

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
