GX390 K1 VM2 (GCAA) - Honda Engine, Made in Japan (SN: GCAA-2000001 - GCAA-3399999) IGNITION COIL Parts Diagram

Engine, Made in Japan

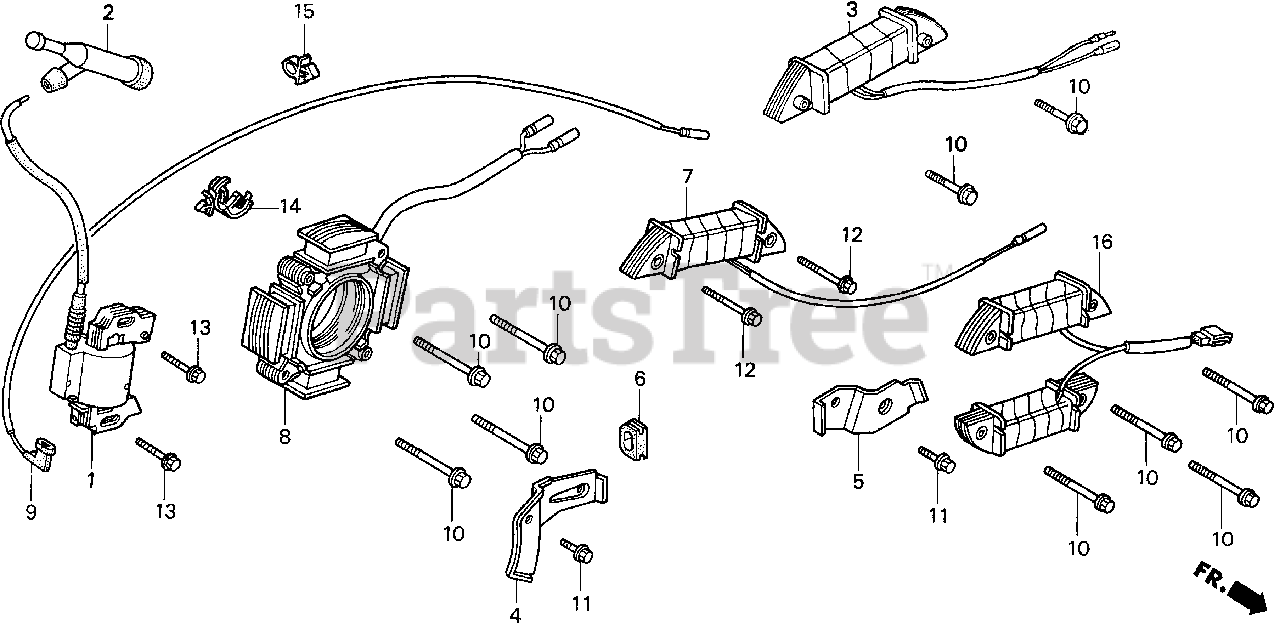

IGNITION COIL Parts Diagram

  • Title

1

Honda 30500-ZF6-W01

SEE PART DETAILS - SUP; COIL ASSY., IGNITION

Note: (Honda Code 5345376).

$56.99

$

In Stock, Qty 7

0

2

Honda 30700-ZE1-013

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR

Note: (Honda Code 3526837).

$22.99

$

In Stock, only 1 left!

0

3

Honda 31510-ZE1-811

COIL ASSY., LAMP (12V/25W)

Note: (Honda Code 1724996).

$75.99

$

Usually ships in 3-6 days

0

5

Honda 31511-ZE3-000

CLAMP, WIRE

Note: (Honda Code 2108363).

$6.49

$

Usually ships in 3-6 days

0

6

Honda 31512-ZE2-000

GROMMET, WIRE

Note: (Honda Code 2026557).

$3.99

$

Usually ships in 3-6 days

0

9

Honda 36101-ZE2-701

WIRE, STOP SWITCH (430MM)

Note: (Honda Code 3713435).

$11.99

$

Usually ships in 3-6 days

0

10

Honda 90012-888-000

BOLT, FLANGE (6X40)

Note: (Honda Code 0671529).

$4.99

$

Usually ships in 3-6 days

0

11

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

Note: (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

13

Honda 90015-883-000

BOLT, FLANGE (6X28)

Note: (Honda Code 0636852).

$3.99

$

Usually ships in 3-6 days

0

14

Honda 90684-ZA0-601

SEE PART DETAILS - PRI; CLIP, WIRE HARNESS

Note: (Honda Code 2539138).

$4.99

$

Usually ships in 3-6 days

0
