GX390 K1 QXC (GCAA) - Honda Engine, Made in Japan (SN: GCAA-2000001 - GCAA-3399999) AIR CLEANER (2) Parts Diagram

Engine, Made in Japan

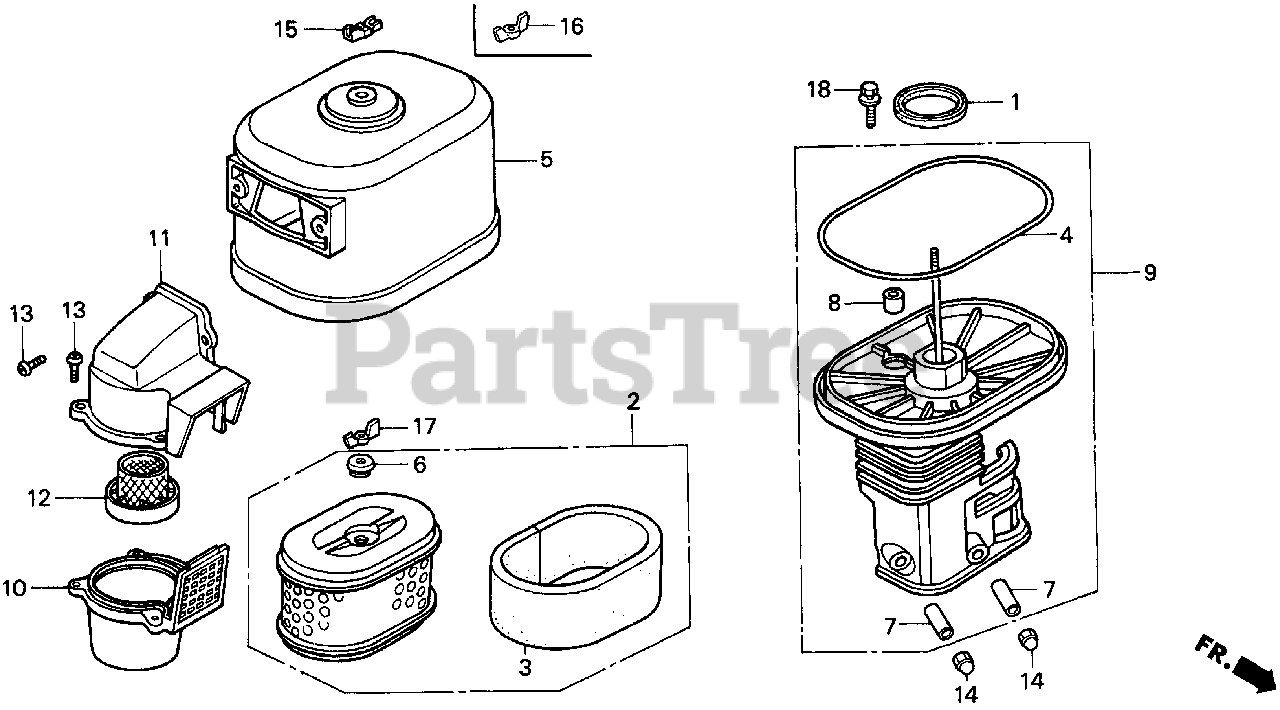

AIR CLEANER (2) Parts Diagram

  • Title

1

Honda 16271-ZE2-000

SEE PART DETAILS - SUP; GASKET, ELBOW
(Superseded to 16271-ZE2-010)

Note: (Honda Code 2025948).

$3.49

$

In Stock, only 1 left!

0

2

Honda 17210-ZE3-010

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER
(Superseded to 17210-ZE3-505)

Note: (Honda Code 2893907).

$21.99

$

In Stock, Qty 20+

0

2

Honda 17210-ZE3-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER

Note: (Honda Code 5252697).

$21.99

$

In Stock, Qty 20+

0

3

Honda 17218-ZE3-000

SEE PART DETAILS - SUP; FILTER (OUTER)
(Superseded to 17218-ZE3-505)

Note: (Honda Code 2577377).

$

$

Not available

3

Honda 17218-ZE3-505

SEE PART DETAILS - PRI; FILTER (OUTER)
(Superseded to 17218-ZE3-000)

Note: (Honda Code 5281449).

$

$

Not available

4

Honda 17219-HA2-405

SEE PART DETAILS - PRI; SEAL, AIR CLEANER COVER

Note: (Honda Code 2943017).

$8.49

$

In Stock, only 1 left!

0

4

Honda 17219-KL4-000

SEE PART DETAILS - SUP; SEAL, AIR CLEANER COVER
(Superseded to 17219-HA2-405)

Note: (Honda Code 1732429).

$8.49

$

In Stock, only 1 left!

0

5

Honda 17230-ZE3-841

COVER, AIR CLEANER (CYCLONE)

Note: (Honda Code 2660488).

$44.99

$

In Stock, only 1 left!

0

6

Honda 17232-891-000

GROMMET, AIR CLEANER

Note: (Honda Code 0999763).

$5.99

$

In Stock, Qty 6

0

7

Honda 17238-ZE2-310

COLLAR, AIR CLEANER

Note: (Honda Code 2384105).

$4.99

$

In Stock, Qty 10

0

8

Honda 17239-ZE3-840

COLLAR B, AIR CLEANER

Note: (Honda Code 2871424).

$3.99

$

Usually ships in 3-6 days

0

9

Honda 17410-ZE3-840

ELBOW, AIR CLEANER
(Superseded to 17410-ZE3-841)

Note: (Honda Code 2660496).

$35.99

$

In Stock, only 1 left!

0

10

Honda 17470-ZE3-841

SEE PART DETAILS - SUP; CASE, PRE AIR CLEANER
(Superseded to 17470-ZE3-842)

Note: (Honda Code 2660504).

$26.99

$

In Stock, only 1 left!

0

11

Honda 17475-ZE3-841

CAP, PRE AIR CLEANER

Note: (Honda Code 2660512).

$27.99

$

In Stock, only 1 left!

0

12

Honda 17476-ZE3-841

GUIDE, PRE AIR CLEANER

Note: (Honda Code 2660520).

$18.99

$

In Stock, only 1 left!

0

13

Honda 90142-MB0-000

SCREW, PAN (5X16.5)

Note: (Honda Code 1251040).

$3.49

$

In Stock, only 4 left!

0

14

Honda 90201-415-000

NUT, CAP (6MM)

Note: Use up to Engine SN 2066080. (Honda Code 0670729).

$2.99

$

Usually ships in 3-6 days

0

14

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

Note: Use from Engine SN 2066081. (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

15

Honda 90203-PB2-000

WINGNUT, AIR CLEANER COVER

Note: Use up to Engine SN 2042138. (Honda Code 0994855).

$10.99

$

In Stock, only 3 left!

0

15

Honda 90203-ZA0-800

WINGNUT (6MM)

Note: Use from Engine SN 2042139 to 2125884. (Honda Code 1742238).

$4.49

$

In Stock, only 1 left!

0

16

Honda 90325-044-000

SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING

Note: Use from Engine SN 2125885. (Honda Code 0127720).

$5.49

$

In Stock, Qty 20+

0

17

Honda 90325-044-000

SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING

Note: (Honda Code 0127720).

$5.49

$

In Stock, Qty 20+

0

18

Honda 90009-ZE2-003

BOLT-WASHER (6X22)

Note: (Honda Code 6437297).

$2.49

$

In Stock, only 1 left!

0
