GX390 K1 QND (GCAA) - Honda Engine, Made in Japan (SN: GCAA-2000001 - GCAA-3399999) CONTROL BOX (2) Parts Diagram

Engine, Made in Japan

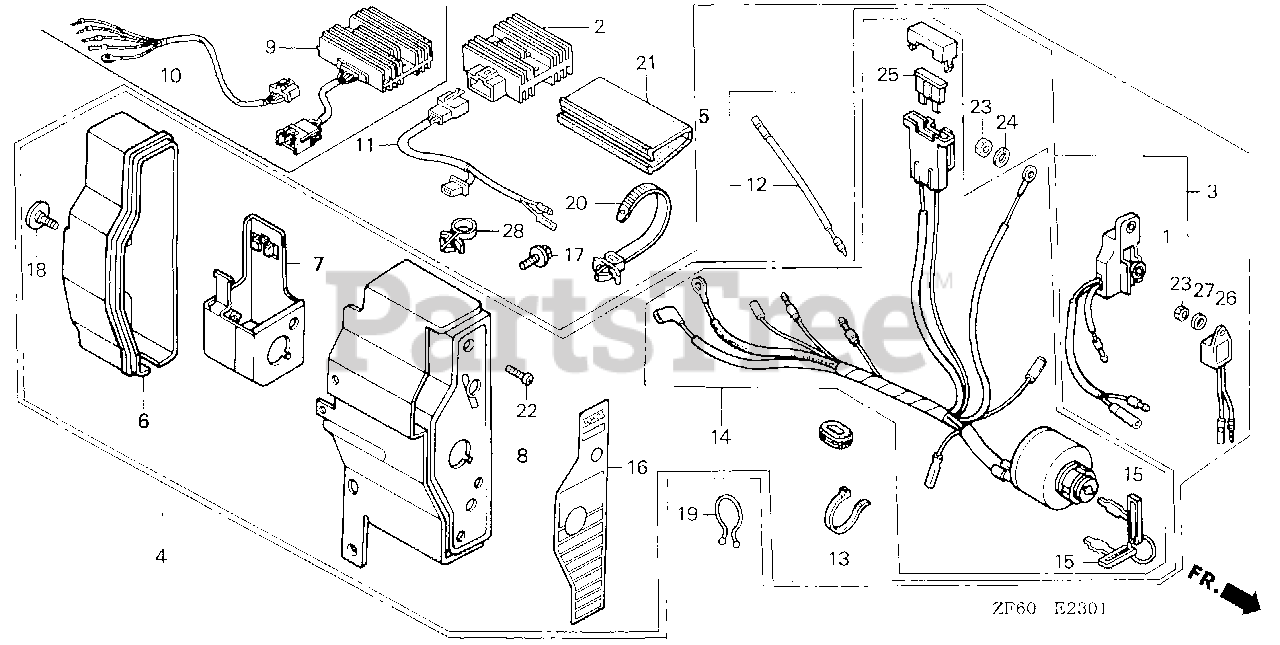

CONTROL BOX (2) Parts Diagram

  • Title

5

Honda 31610-ZE3-W42ZD

BOX ASSY., CONTROL (18A) *R280* (EXP-ALERT) (POWER RED)

$298.99

$

Usually ships in 3-6 days

0

6

Honda 31612-ZE2-003

CASE, CONTROL

$22.99

$

Usually ships in 3-6 days

0

7

Honda 31614-ZE2-003

BRACKET, CASE MOUNTING

$18.99

$

Usually ships in 3-6 days

0

8

Honda 31615-ZE3-003ZB

SEE PART DETAILS - SUP; PANEL, CONTROL *R8* (BRIGHT RED)
(Superseded to 31615-ZE3-003ZE)

$30.99

$

Usually ships in 3-6 days

0

8

Honda 31615-ZE3-003ZE

SEE PART DETAILS - PRI; PANEL, CONTROL *R280* (POWER RED)

$30.99

$

Usually ships in 3-6 days

0

12

Honda 32197-ZE1-003

SUB-WIRE HARNESS

$12.99

$

Usually ships in 3-6 days

0

13

Honda 32902-892-003

BAND

$4.99

$

In Stock, only 1 left!

0

14

Honda 35100-ZE2-W01

SWITCH ASSY., COMBINATION (18A-CHARGE)

$134.99

$

Usually ships in 3-6 days

0

15

Honda 35111-880-013

KEY (HONDALOCK)

$11.99

$

In Stock, only 3 left!

0

16

Honda 87529-ZE2-861

MARK, CONTROL BOX (EXTERNAL-REGULATOR)

$20.99

$

Usually ships in 3-6 days

0

17

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

18

Honda 90380-MA6-010

SCREW, SPECIAL (6X12)

$4.49

$

Usually ships in 3-6 days

0

19

Honda 90630-751-000

CLIP, PURSE LOCK

$2.99

$

Usually ships in 3-6 days

0

20

Honda 90672-SA0-003

STRAP, CABLE (118MM) (BLACK)

$9.99

$

In Stock, only 1 left!

0

21

Honda 91406-ZE2-003

TUBE, FASTENER (30MM)

$7.49

$

Usually ships in 3-6 days

0

22

Honda 93500-04012-0H

SCREW, PAN (4X12)

$1.49

$

In Stock, Qty 10

0

23

Honda 94001-04390-0S

NUT, HEX. (4MM)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 94111-04800

WASHER, SPRING (4MM)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 98200-32500

FUSE, BLADE (25A)

$3.49

$

Usually ships in 3-6 days

0

26

Honda 34150-ZH7-013

SEE PART DETAILS - SUP; ALERT UNIT, OIL
(Superseded to 34150-ZH7-023)

$53.99

$

In Stock, only 1 left!

0

26

Honda 34150-ZH7-023

SEE PART DETAILS - PRI; ALERT UNIT, OIL

$53.99

$

In Stock, only 1 left!

0

27

Honda 94101-04800

WASHER, PLAIN (4MM)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE

$2.99

$

In Stock, only 1 left!

0
