GX390 K1 QAE (GCAA) - Honda Engine, Made in Japan (SN: GCAA-2000001 - GCAA-3399999) CYLINDER BARREL Parts Diagram

Engine, Made in Japan

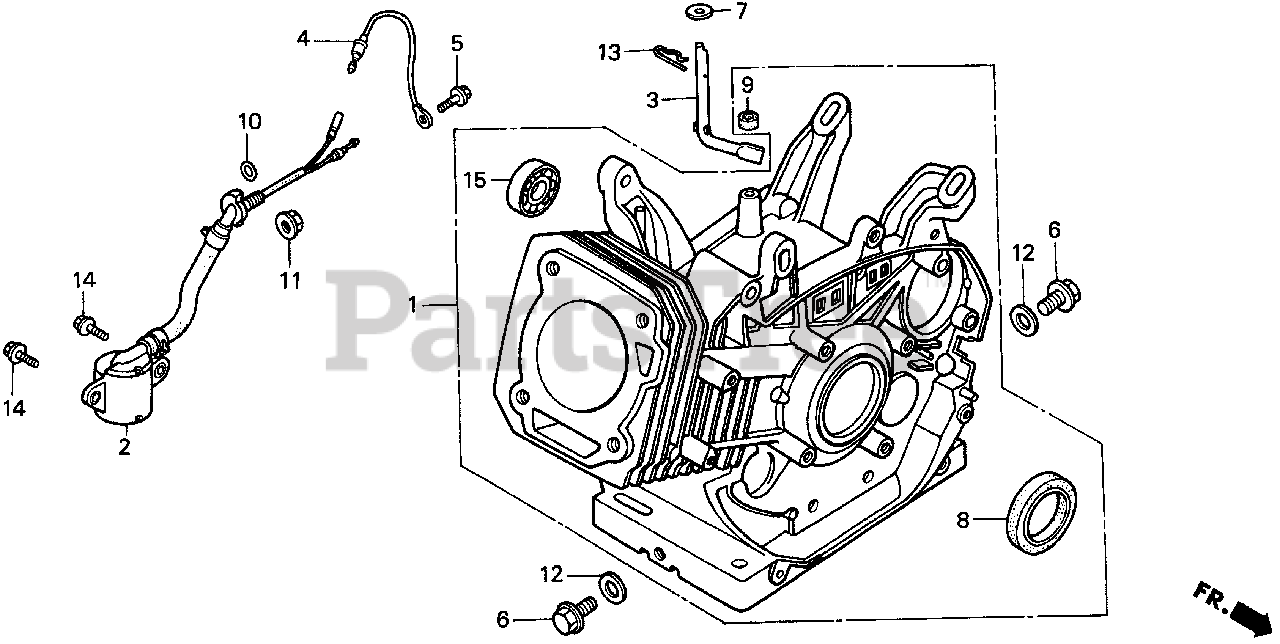

CYLINDER BARREL Parts Diagram

  • Title

1

Honda 12000-ZF6-L04

SEE PART DETAILS - PRI; CYLINDER ASSY.

Note: Use up to Engine SN 2087547. (Honda Code 4477311).

$

$

Currently unavailable

1

Honda 12000-ZF6-405

SEE PART DETAILS - PRI; CYLINDER ASSY. (L04)

Note: Use up to Engine SN 2087547. (Honda Code 6325195).

$

$

Currently unavailable

1

Honda 12000-ZF6-405

SEE PART DETAILS - PRI; CYLINDER ASSY. (L04)

Note: Use from Engine SN 2087548. (Honda Code 6325195).

$

$

Currently unavailable

2

Honda 15510-ZE2-023

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL

Note: Use up to Engine SN 2334667. (Honda Code 4193736).

$60.99

$

Usually ships in 3-6 days

0

2

Honda 15510-ZE2-033

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE2-053)

Note: Use up to Engine SN 2334667. (Honda Code 5361605).

$60.99

$

In Stock, only 1 left!

0

2

Honda 15510-ZE2-033

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE2-053)

Note: Use from Engine SN 2334668. (Honda Code 5361605).

$60.99

$

In Stock, only 1 left!

0

2

Honda 15510-ZE2-043

SEE PART DETAILS - PRI; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE2-053)

Note: Use up to Engine SN 2334667. (Honda Code 5792361).

$60.99

$

In Stock, only 1 left!

0

2

Honda 15510-ZE2-043

SEE PART DETAILS - PRI; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE2-053)

Note: Use from Engine SN 2334668. (Honda Code 5792361).

$60.99

$

In Stock, only 1 left!

0

3

Honda 16541-ZE3-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM

Note: (Honda Code 4717393).

$17.99

$

In Stock, only 1 left!

0

4

Honda 32197-ZE2-003

SUB-HARNESS

Note: Use from Engine SN 2042139 to 2334667. (Honda Code 4220406).

$

$

Not available

5

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

Note: Use from Engine SN 2042139 to 2335517. (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

6

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

Note: (Honda Code 1986231).

$4.99

$

In Stock, only 2 left!

0

7

Honda 90446-KE1-000

WASHER (8.2X17X0.8)

Note: (Honda Code 2027134).

$2.49

$

In Stock, only 1 left!

0

8

Honda 91201-ZE3-004

OIL SEAL (35X52X8)

Note: (Honda Code 2108595).

$10.99

$

In Stock, Qty 9

0

9

Honda 91201-ZE9-003

OIL SEAL (8X14X5)

Note: (Honda Code 2461713).

$5.49

$

In Stock, Qty 11

0

9

Honda 91203-952-771

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)
(Superseded to 91201-ZE9-003)

Note: (Honda Code 0744326).

$5.49

$

In Stock, Qty 11

0

10

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (13.5X1.5) (ARAI)

Note: (Honda Code 0949883).

$3.99

$

In Stock, Qty 13

0

11

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

Note: (Honda Code 0483867).

$1.99

$

In Stock, Qty 6

0

12

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM)

Note: (Honda Code 0171868).

$1.49

$

In Stock, Qty 12

0

13

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM)

Note: (Honda Code 0115527).

$1.99

$

In Stock, Qty 13

0

14

Honda 95700-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: (Honda Code 0487025).

$

$

Not available

14

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: (Honda Code 2105799).

$2.49

$

In Stock, Qty 13

0

15

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202)

Note: (Honda Code 0708941).

$12.99

$

In Stock, only 1 left!

0
