GX390 K1 QA2/A (GCAA) - Honda Engine, Made in Japan (SN: GCAA-3400001 - GCAA-9999999) CYLINDER BARREL Parts Diagram

Engine, Made in Japan

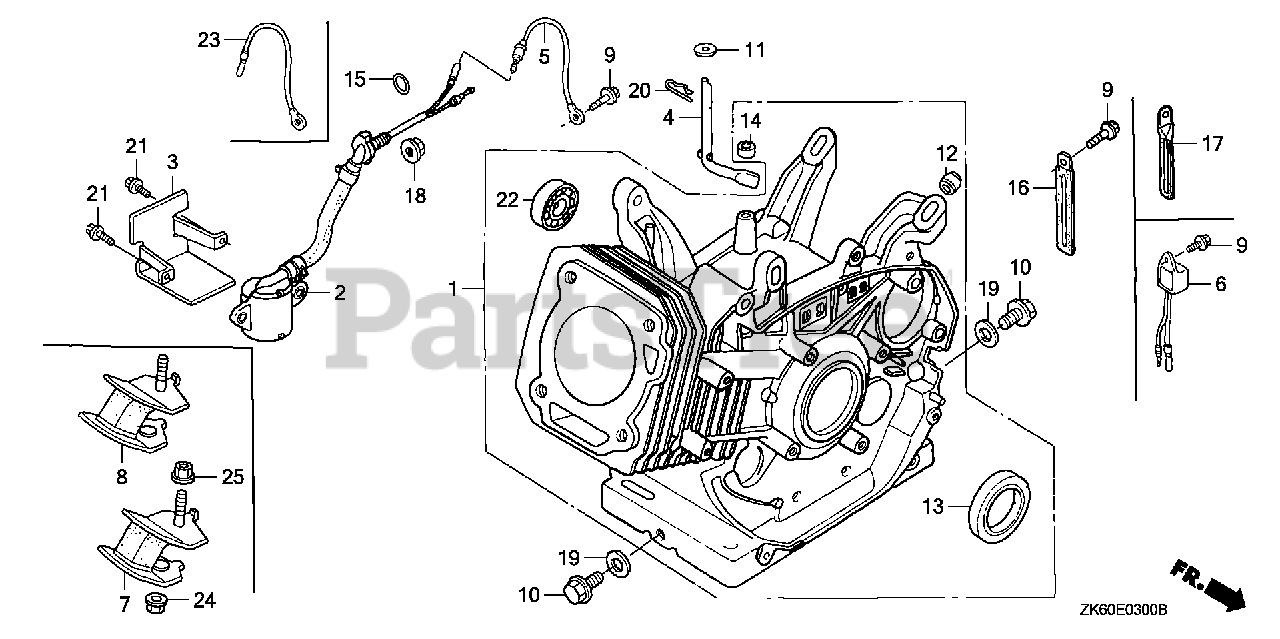

CYLINDER BARREL Parts Diagram

  • Title

1

Honda 12000-ZF6-435

CYLINDER ASSY. (SELF STARTER+ALERT)

$956.99

$

Usually ships in 3-6 days

0

2

Honda 15510-ZE2-053

SEE PART DETAILS - PRI; SWITCH ASSY., OIL LEVEL

$60.99

$

In Stock, only 1 left!

0

4

Honda 16541-ZE3-010

SHAFT, GOVERNOR ARM

$17.99

$

In Stock, only 1 left!

0

10

Honda 90131-896-650

BOLT, DRAIN PLUG (12X15)

$4.99

$

In Stock, only 2 left!

0

11

Honda 90446-KE1-000

WASHER (8.2X17X0.8)

$2.49

$

In Stock, only 1 left!

0

13

Honda 91201-ZE3-004

OIL SEAL (35X52X8)

$10.99

$

In Stock, Qty 9

0

14

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

$5.49

$

In Stock, Qty 11

0

15

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI)

$3.99

$

In Stock, Qty 13

0

15

Honda 91353-671-004

O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 13

0

18

Honda 94050-10000

NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 6

0

19

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 12

0

20

Honda 94251-10000

PIN, LOCK (10MM)

$1.99

$

In Stock, Qty 5

0

21

Honda 95701-06012-00

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 13

0

22

Honda 96100-62020-00

BEARING, RADIAL BALL (6202)

$12.99

$

In Stock, only 1 left!

0
