GX390 K1 QA (GCAA) - Honda Engine, Made in Japan (SN: GCAA-2000001 - GCAA-3399999) FAN COVER Parts Diagram

Engine, Made in Japan

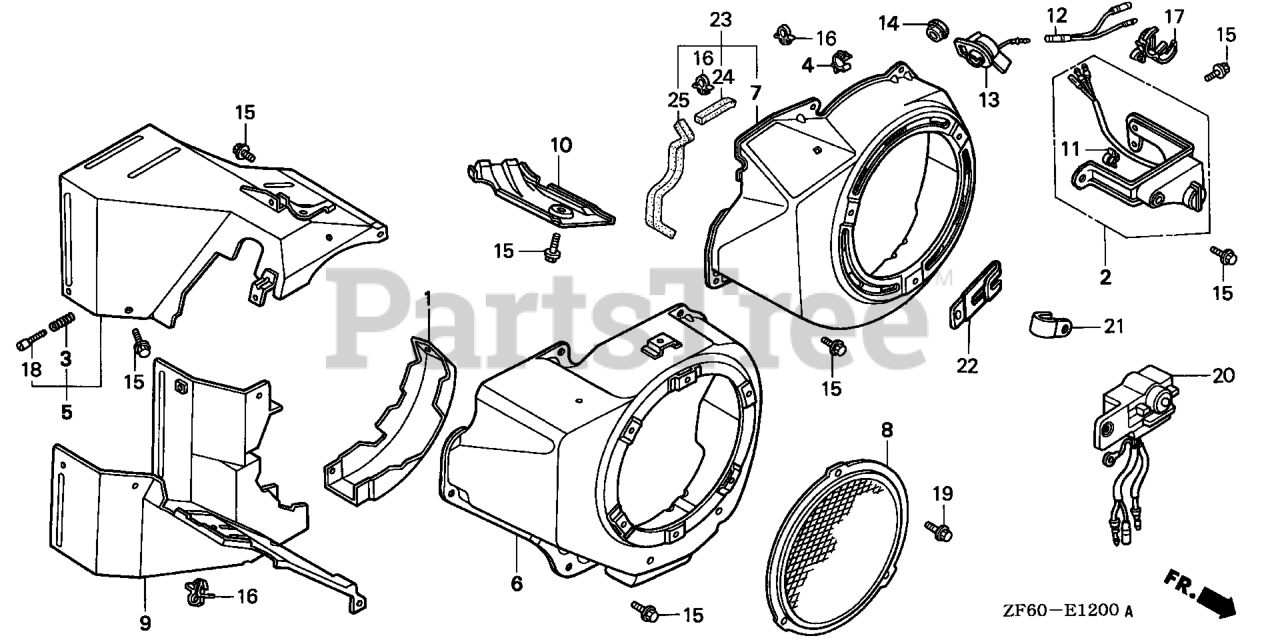

FAN COVER Parts Diagram

  • Title

2

Honda 15520-ZE2-003

ALERT UNIT, OIL (Honda Code 2025690).

Note: Use up to Engine SN 2042138.

$

$

Not available

4

Honda 16731-ZE2-003

CLIP, TUBE (Honda Code 2026094).

$3.49

$

In Stock, only 2 left!

0

7

Honda 19610-ZE3-010ZL

SEE PART DETAILS - PRI; COVER, FAN *R280* (POWER RED) (Honda Code 7329592).

$97.99

$

In Stock, only 1 left!

0

10

Honda 19631-ZE3-W00

SHROUD

$14.99

$

Usually ships in 3-6 days

0

11

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

Note: Use up to Engine SN 2042138.

$3.99

$

In Stock, only 1 left!

0

12

Honda 32197-ZH8-003

SEE PART DETAILS - PRI; SUB-HARNESS

Note: Use from Engine SN 2042139 to 2334667.

$12.99

$

In Stock, only 1 left!

0

13

Honda 36100-ZE1-015

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP Use from Engine SN 2092216 to 2359126.

Note: Use from Engine SN 2042139 to 2334667.

$21.99

$

In Stock, only 1 left!

0

13

Honda 36100-ZF6-P82

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP

Note: Use from Engine SN 2334668.

$20.99

$

In Stock, only 2 left!

0

13

Honda 36100-ZH7-003

SWITCH ASSY., ENGINE STOP
(Superseded to 36100-ZF6-P82)

Note: Use from Engine SN 2334668.

$20.99

$

In Stock, only 2 left!

0

14

Honda 81329-567-020

SEE PART DETAILS - PRI; GROMMET, DRAIN HOLE (Honda Code 0677773).

Note: Use up to Engine SN 2042138.

$5.99

$

Usually ships in 3-6 days

0

15

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

Note: Use from Engine SN 2042139. Use up to Engine SN 2042138.

$2.49

$

In Stock, Qty 17

0

17

Honda 90684-ZA0-601

SEE PART DETAILS - PRI; CLIP, WIRE HARNESS (Honda Code 2539138).

Note: Use up to Engine SN 2042138.

$4.99

$

Usually ships in 3-6 days

0
