GX390 K1 QA (GCAA) - Honda Engine, Made in Japan (SN: GCAA-2000001 - GCAA-3399999) CRANKCASE COVER (1) Parts Diagram

Engine, Made in Japan

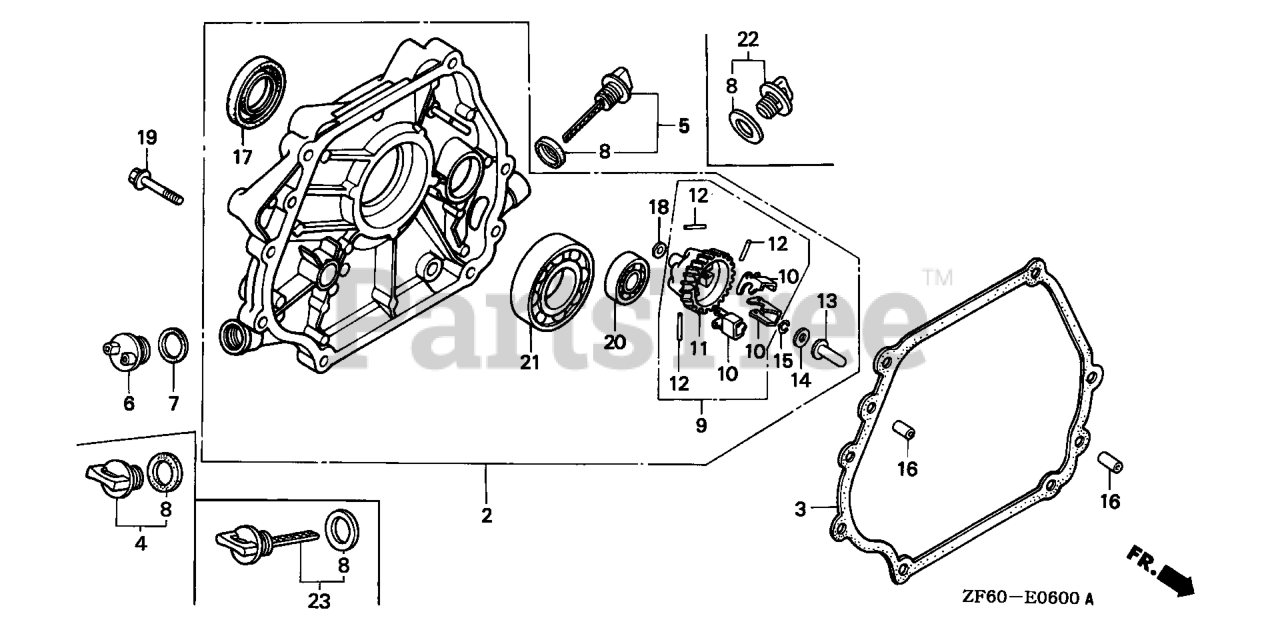

CRANKCASE COVER (1) Parts Diagram

  • Title

2

Honda 11300-ZE3-602

SEE PART DETAILS - SUP; COVER ASSY., CRANKCASE (Q-TYPE) (Honda Code 3712957).
(Superseded to 11300-Z1C-601)

$105.99

$

In Stock, only 1 left!

0

2

Honda 11300-Z1C-601

COVER ASSY., CRANKCASE

$105.99

$

In Stock, only 1 left!

0

3

Honda 11381-ZE3-800

SEE PART DETAILS - PRI; GASKET, CASE COVER Use up to Engine SN 2949254.
(Superseded to 11381-ZE3-801)

$13.99

$

In Stock, only 4 left!

0

3

Honda 11381-ZE3-801

SEE PART DETAILS - PRI; GASKET, CASE COVER (Honda Code 6436869).

$13.99

$

In Stock, only 4 left!

0

4

Honda 15600-ZG4-003

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER

Note: Use from Engine SN 2090081.

$6.99

$

In Stock, only 1 left!

0

5

Honda 15600-735-003

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER (Honda Code 4523106).

$9.49

$

In Stock, Qty 11

0

6

Honda 15620-ZG4-910

SEE PART DETAILS - PRI; CAP, OIL FILLER (Honda Code 3678596).

Note: Use up to Engine SN 2090080.

$4.99

$

Usually ships in 3-6 days

0

7

Honda 15621-896-010

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP Use from Engine SN 1391010.

Note: Use up to Engine SN 2090080.

$5.99

$

In Stock, Qty 5

0

8

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP (Honda Code 4497947).

Note: Use from Engine SN 2090081. Use up to Engine SN 2090080.

$3.49

$

In Stock, only 3 left!

0

9

Honda 16510-ZE3-000

GOVERNOR ASSY. (Honda Code 3713187).

$33.99

$

Usually ships in 3-6 days

0

10

Honda 16511-ZE8-000

WEIGHT, GOVERNOR (Honda Code 2090090).

$7.99

$

Usually ships in 3-6 days

0

11

Honda 16512-ZE3-000

HOLDER, GOVERNOR WEIGHT (Honda Code 3713195).

$19.99

$

Usually ships in 3-6 days

0

12

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT (Honda Code 2025971).

$2.49

$

Usually ships in 3-6 days

0

13

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR (Honda Code 6605117).

$3.99

$

In Stock, only 3 left!

0

14

Honda 90473-147-000

SEE PART DETAILS - PRI; WASHER (6X16) (Honda Code 0465591).

Note: Use up to Engine SN 2080006.

$1.99

$

In Stock, only 1 left!

0

15

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, only 3 left!

0

16

Honda 90701-HC4-000

PIN, DOWEL (8X12) (Honda Code 2978443).

$3.99

$

In Stock, only 2 left!

0

17

Honda 91201-ZE3-004

OIL SEAL (35X52X8) (Honda Code 2108595).

$11.99

$

In Stock, Qty 7

0

18

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

19

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) Use up to Engine SN 1003236.

$1.99

$

In Stock, Qty 20+

0

20

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202) (Honda Code 0708941).

$12.99

$

In Stock, only 3 left!

0

21

Honda 96100-62070-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6207)

$56.99

$

Usually ships in 3-6 days

0
